mycobot280RDKX5 Vision Kit

1 Software Environment Configuration

Enter the following command in the terminal, press the Enter key on the keyboard, and clone the program to the local

git clone https://github.com/elephantrobotics/mycobot280RDKX5_vision_kit.git

Enter the following command in the terminal, press the Enter key on the keyboard, and enter the cloned folder

cd mycobot280RDKX5_vision_kit

Enter the following command in the terminal, press the Enter key on the keyboard, and install the required dependency library

pip install -r requirements.txt

2 Hardware Installation

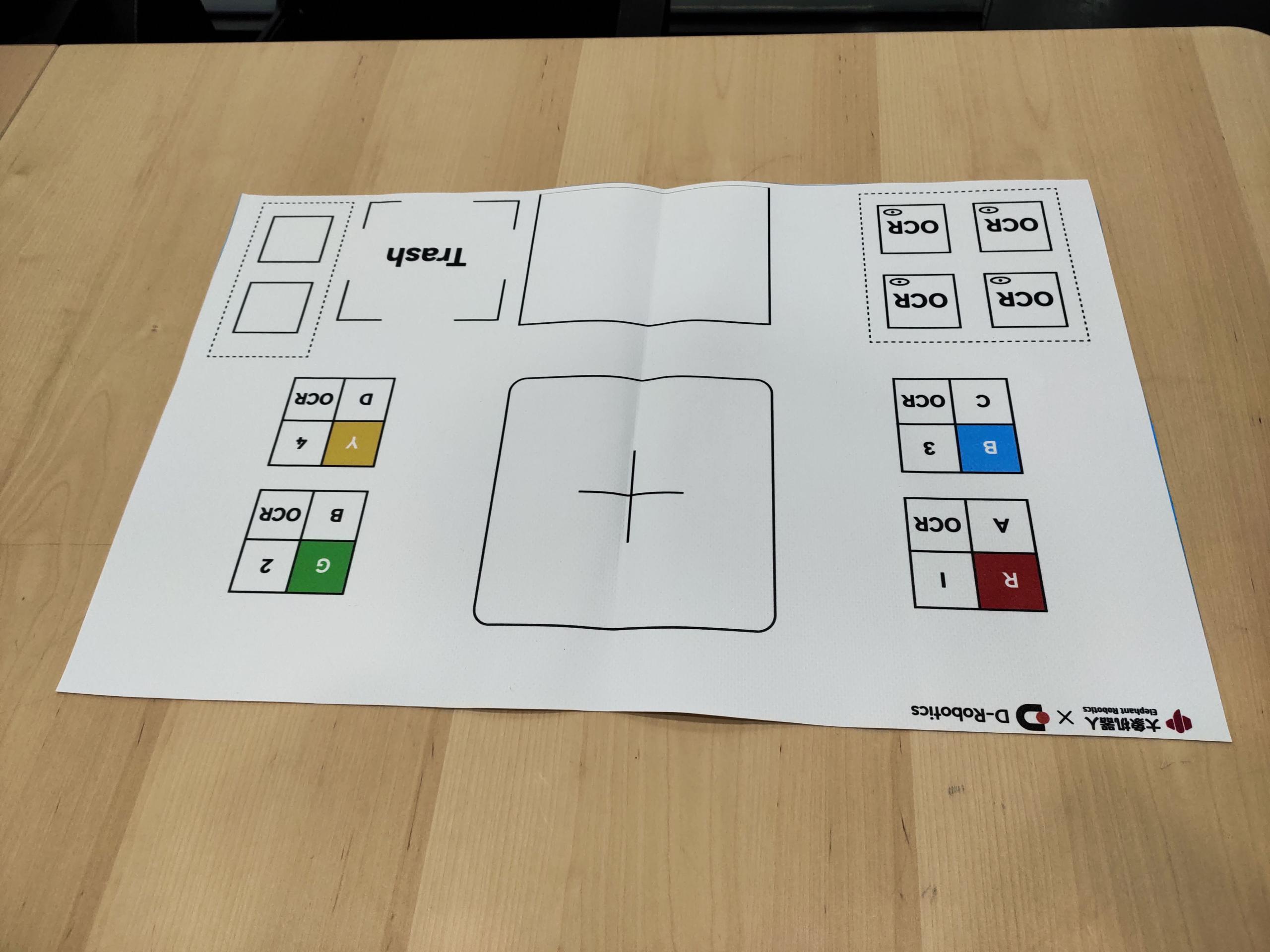

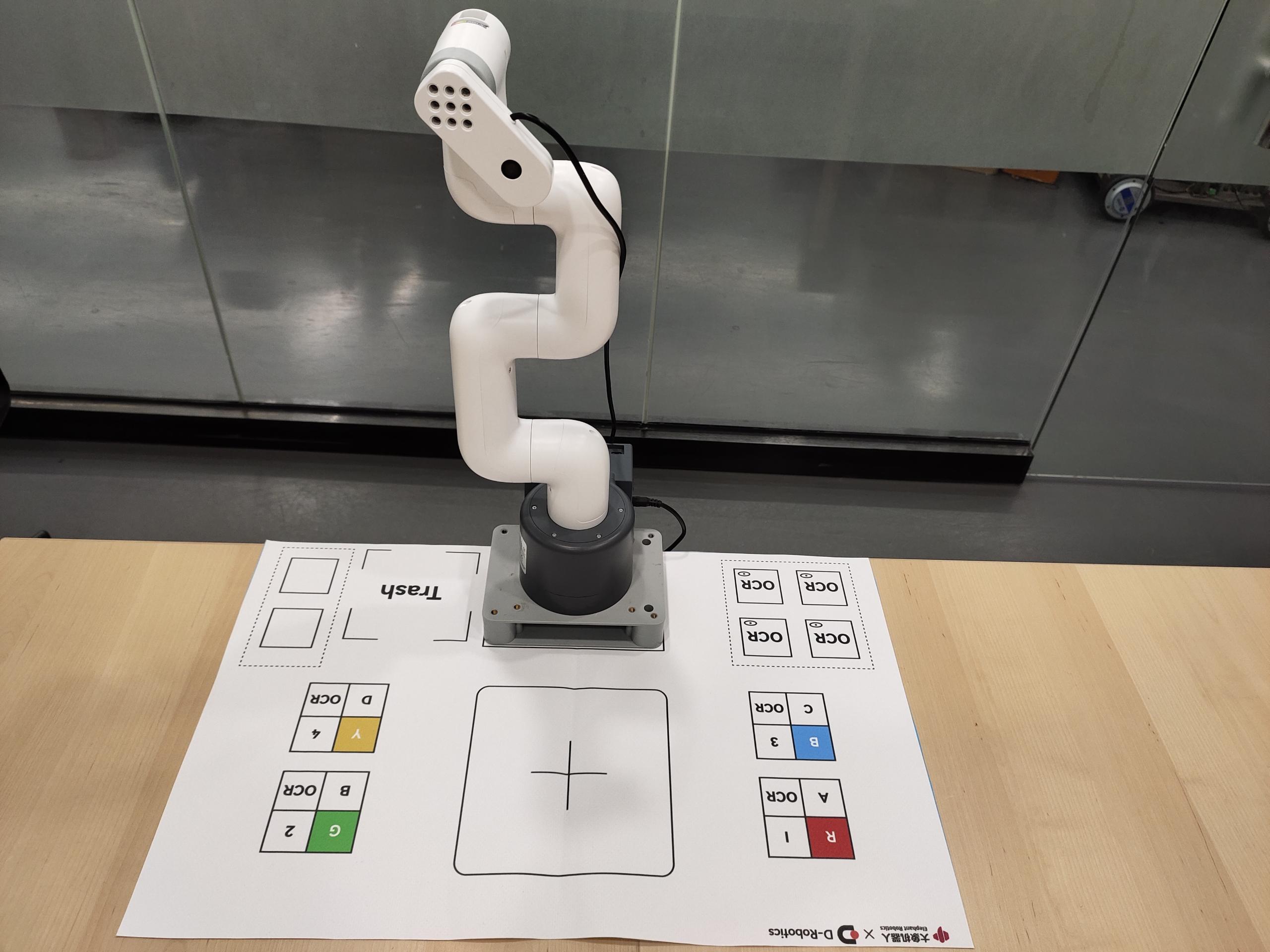

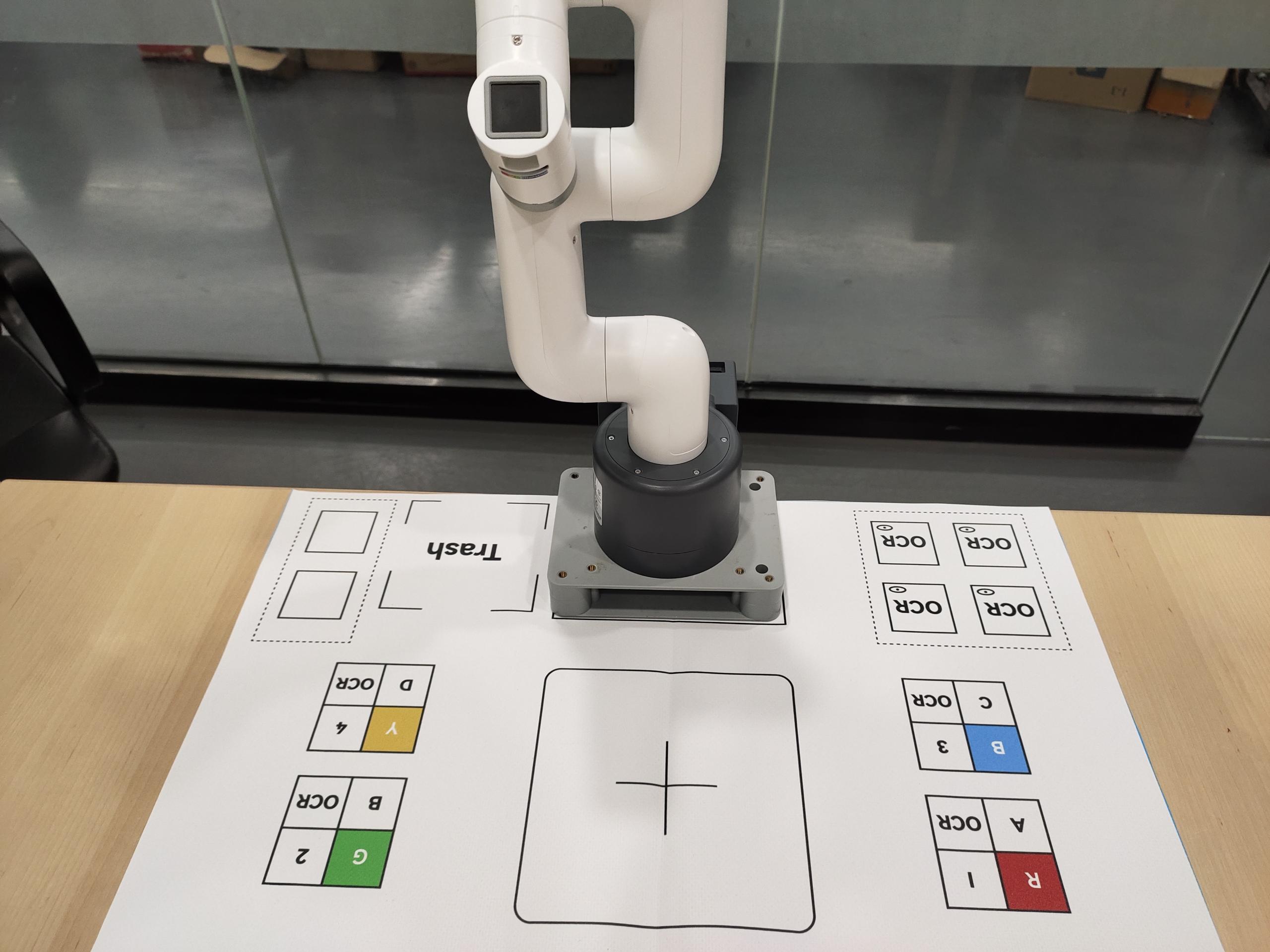

Place the map on the edge of the table to facilitate the fixation of the robot arm behind

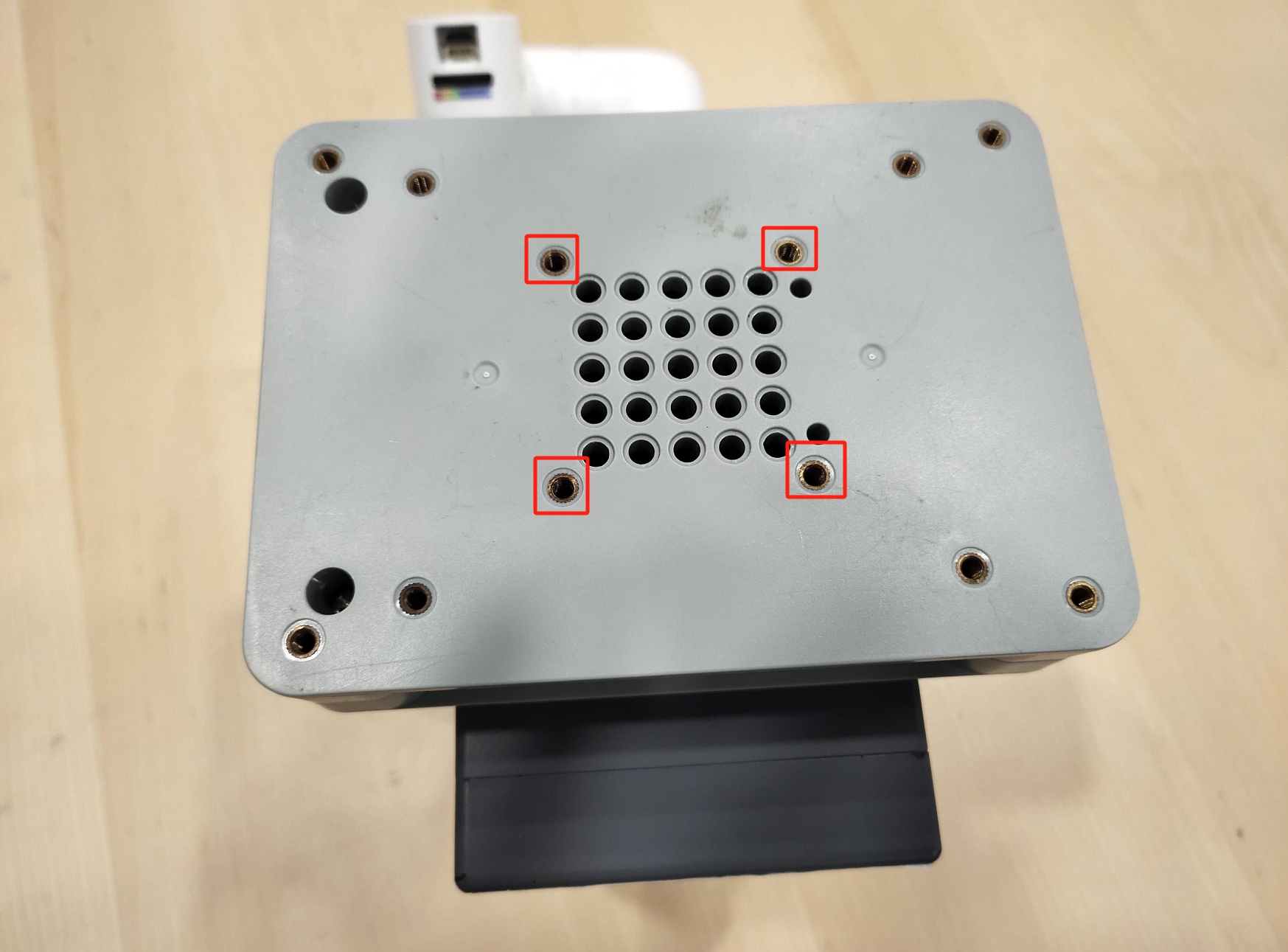

Align the base with the bottom mounting hole of the robot arm and fix it with an Allen wrench

Use the G-type clamp to fix the robot arm to the robot arm fixing area of ​​the map

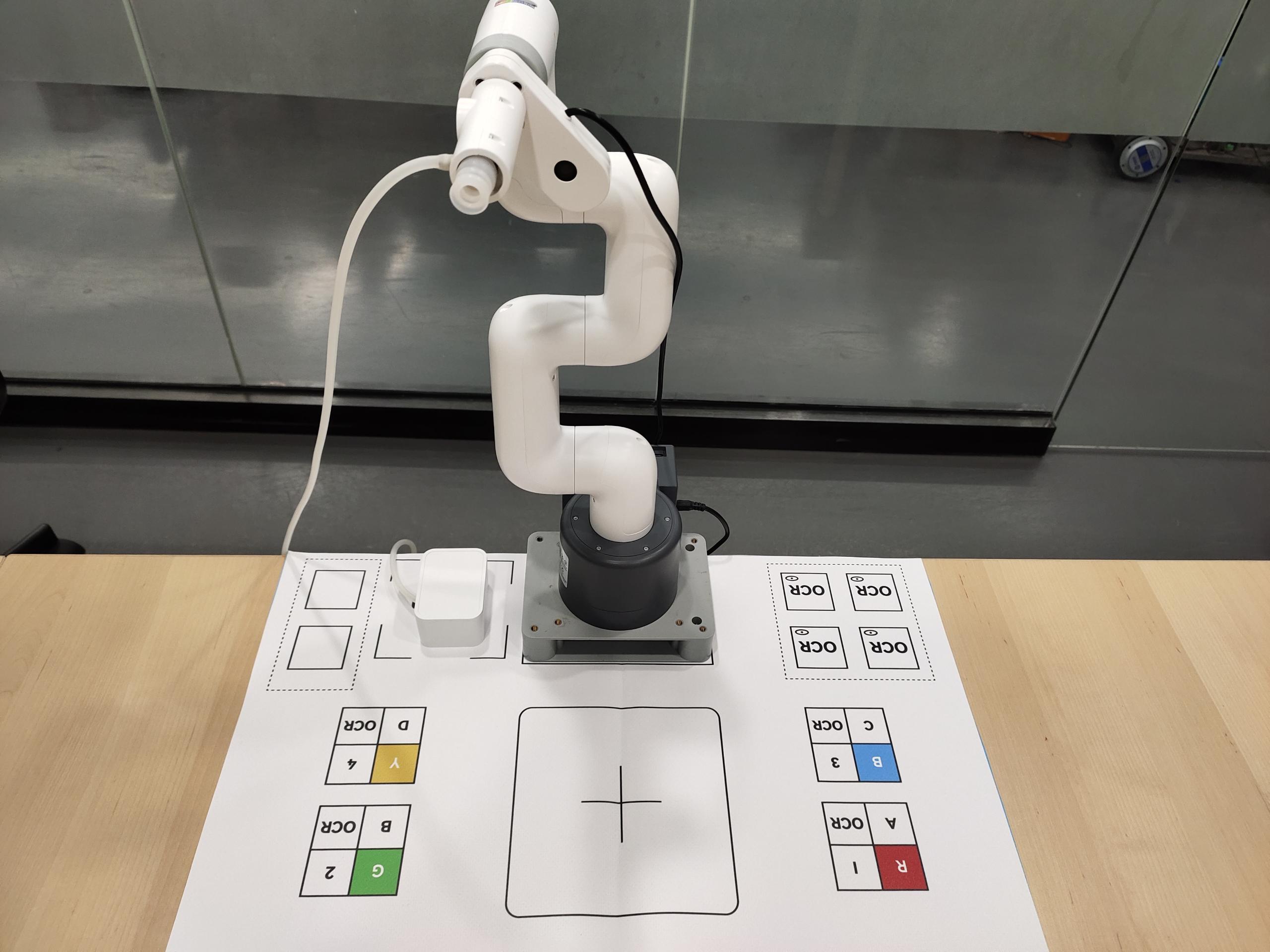

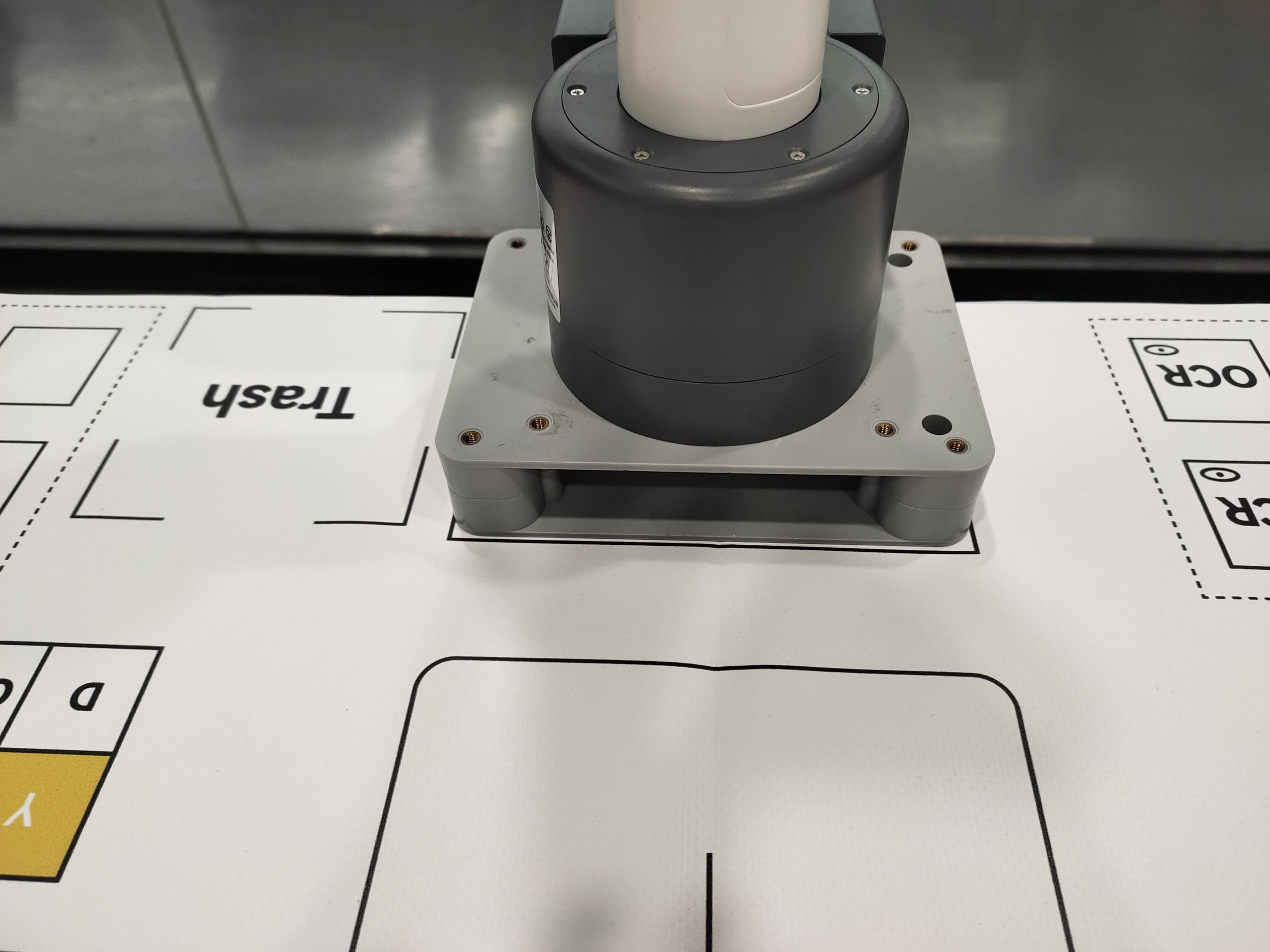

Try to fit the base and the rectangular frame

Enter the mycobot280RDKX5_vision_kit folder, enter the following command in the terminal, press the Enter key on the keyboard, and the joints of the robot arm will return to zero position

python robot_test.py

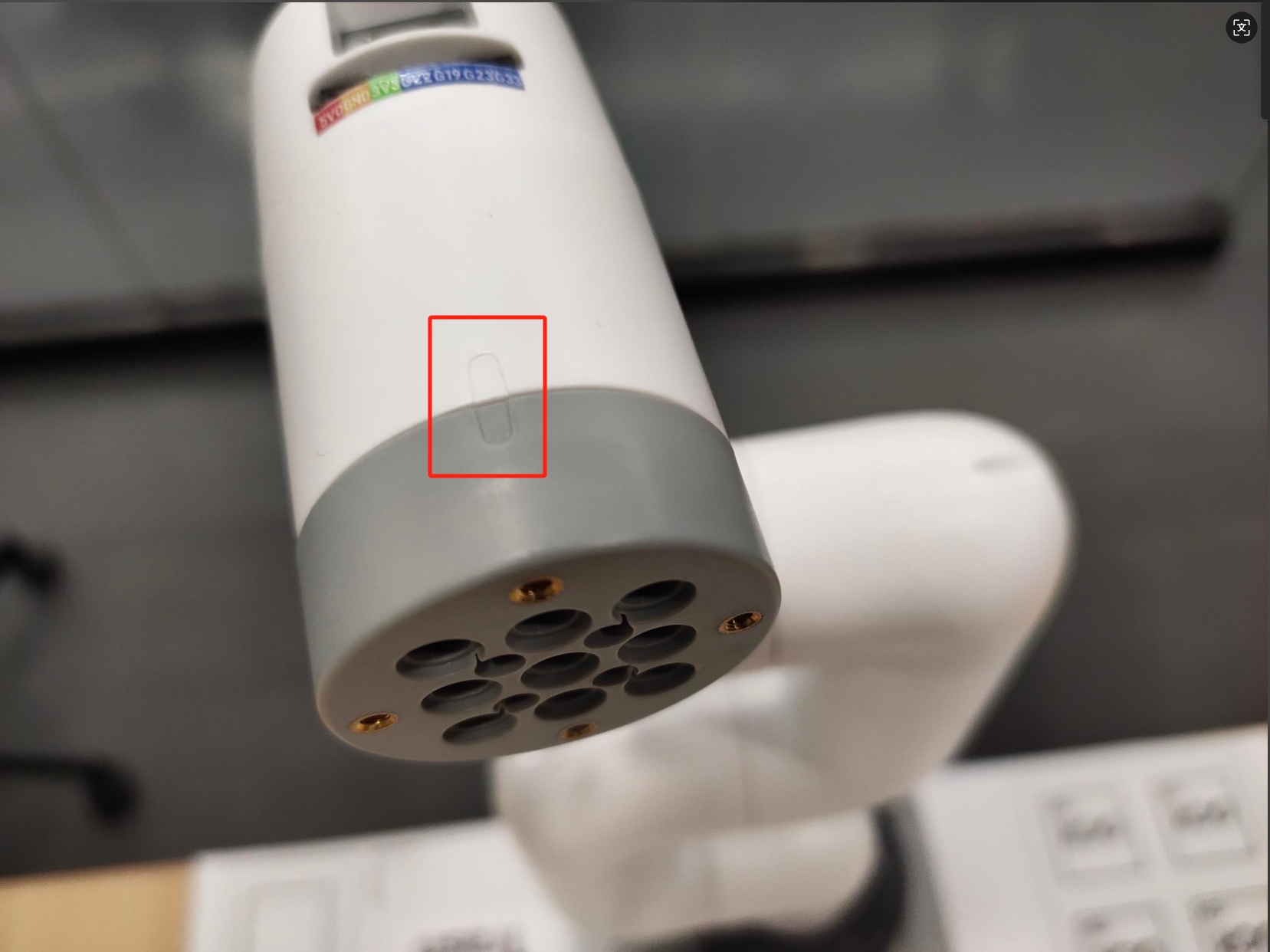

Then be sure to install the camera on the end flange of the robot arm according to the position in the picture, otherwise the subsequent case program will not run normally. Note: After the robot arm returns to zero position, observe whether J6 is in place. If not, the robot arm needs to be zero-calibrated.

After installation, you need to compare the actual installation with the picture to see if it is consistent.

Then install the end suction cup into the Lego plug-in hole of the camera

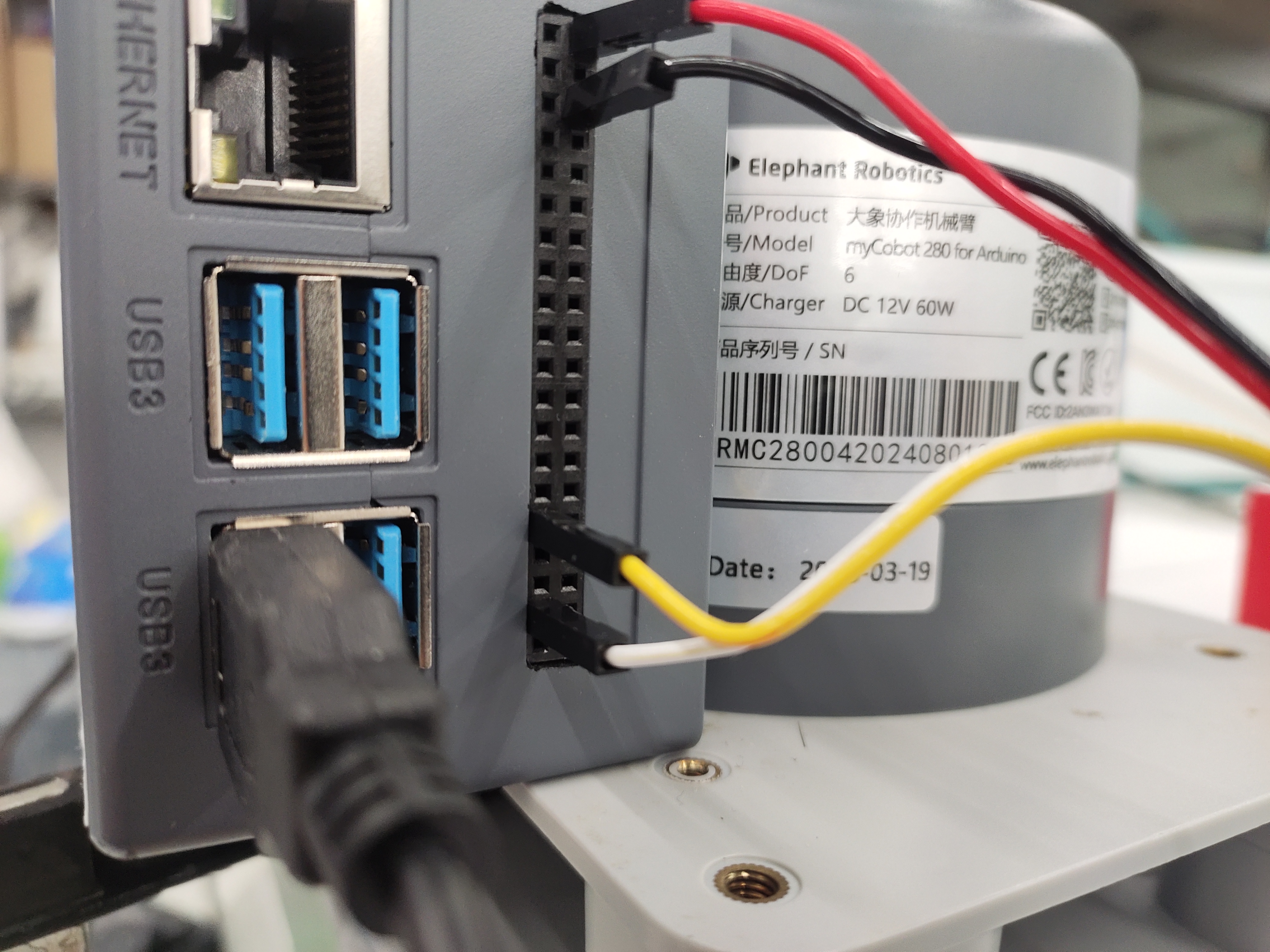

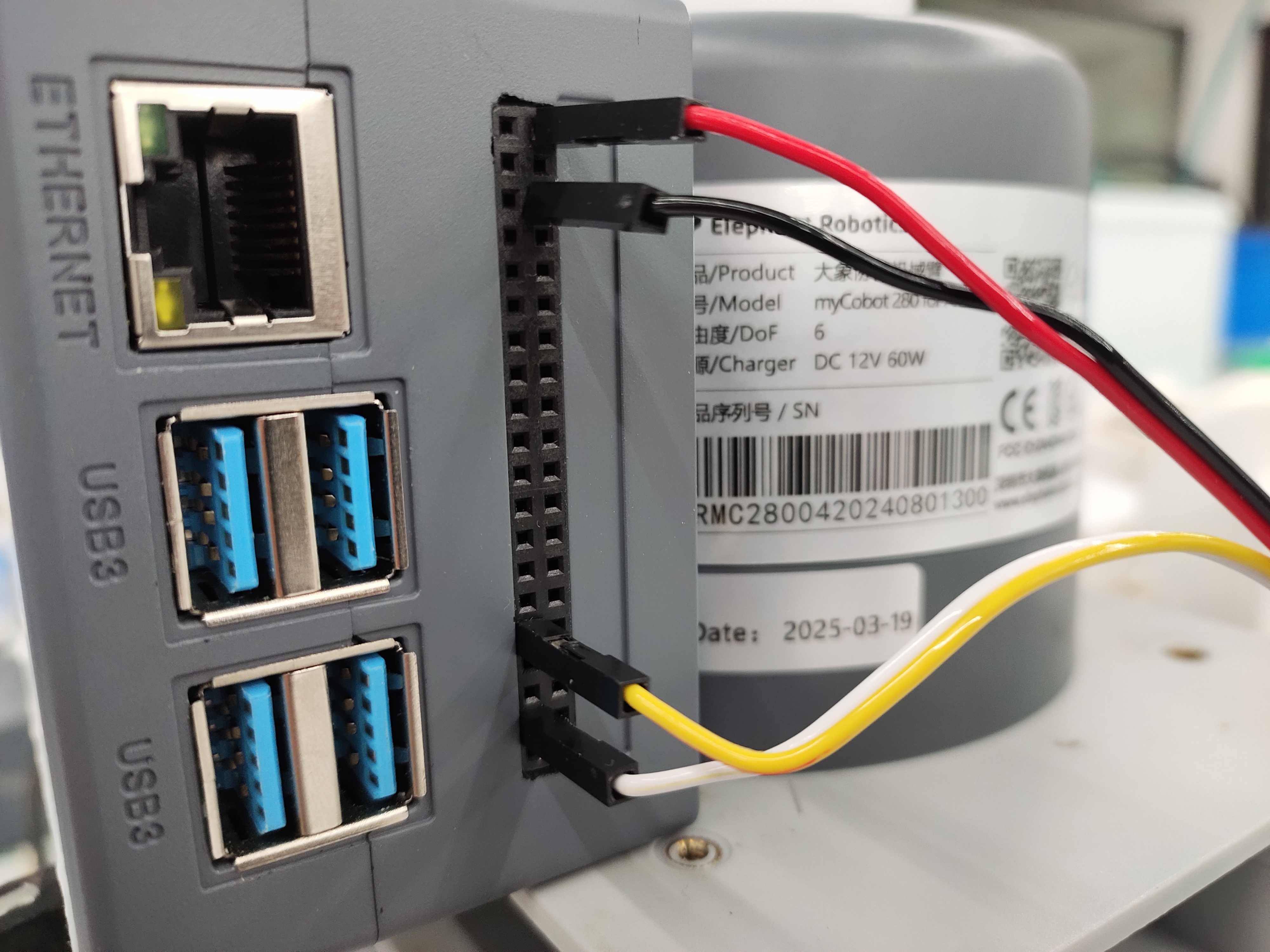

Then connect the control line of the suction pump box according to the picture

Connect the camera line to the USB port of the bottom main controller

3 Case Reproduction

Note: If you want to switch cases, you need to end the current case program first. First put the wooden block in the shooting area, then run the case program

stag QR code sorting

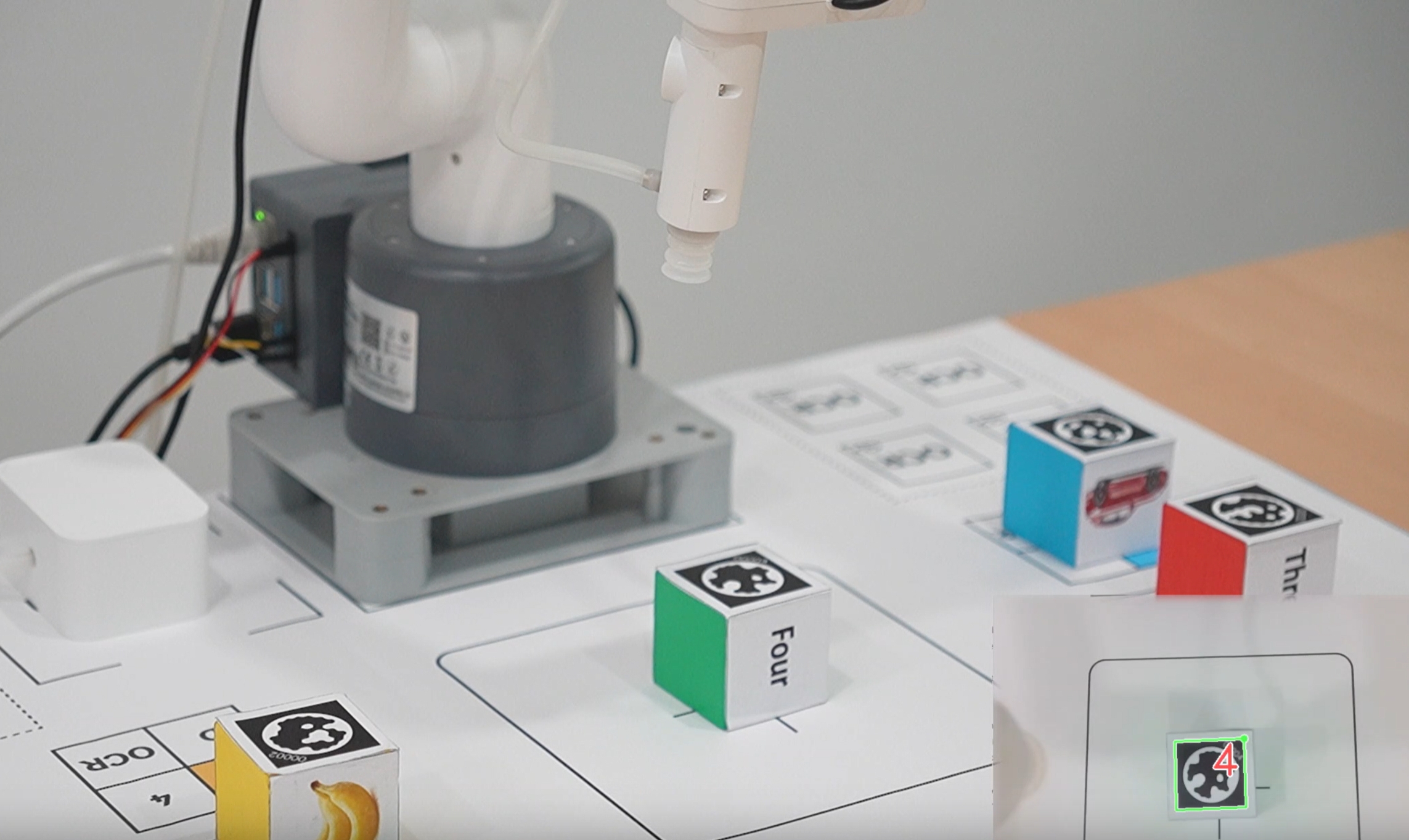

Place 4 wooden blocks with the stag code facing up in the shooting area, try to place them in the middle to avoid the robot arm limit

Enter the mycobot280RDKX5_vision_kit folder, enter the following command in the terminal, press the keyboard Enter key, wait for a while, a camera window will open, and after successful recognition, the robot arm will start to grab

python stag_demo.py

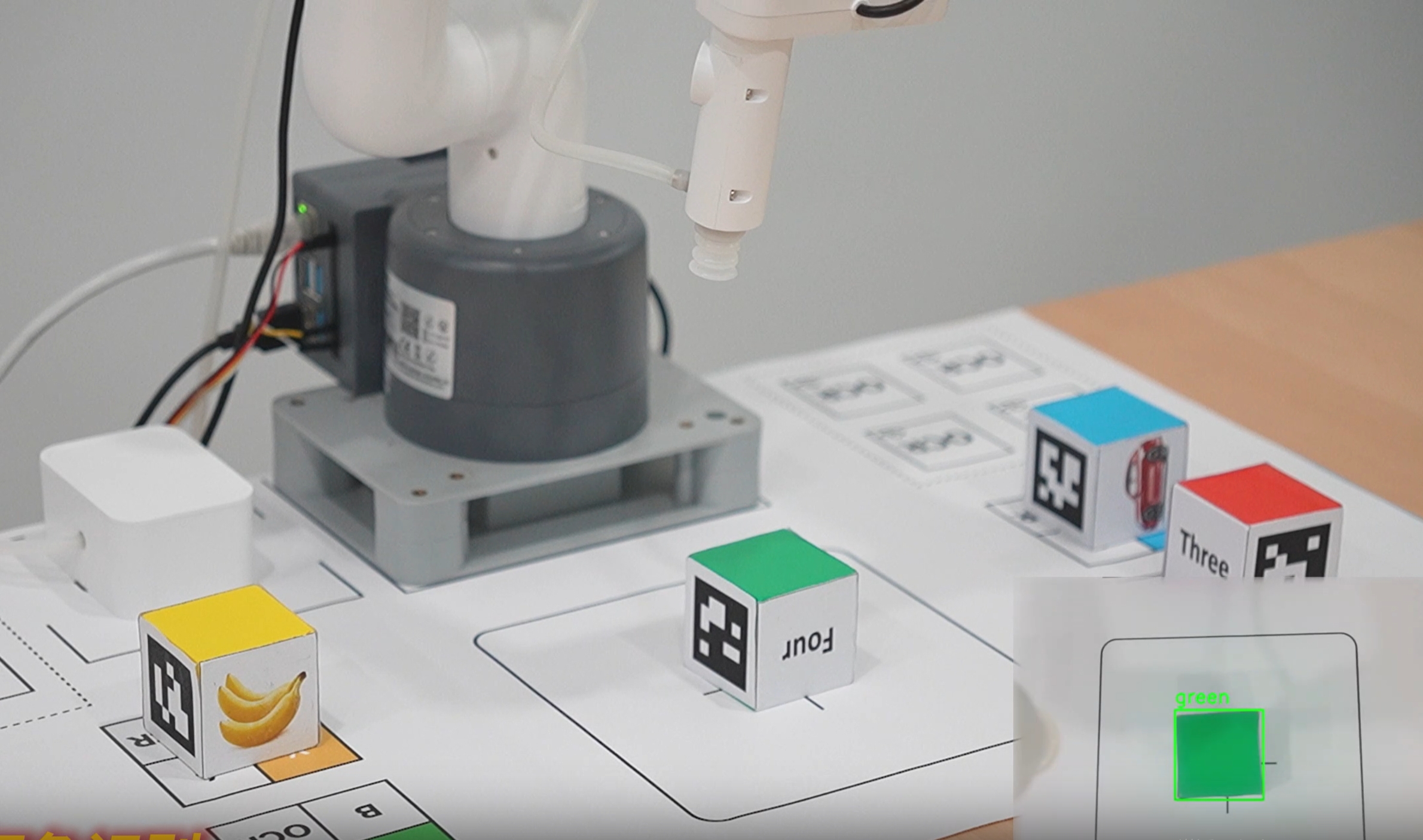

Color sorting

Place the 4 wooden blocks with the side without stickers facing up in the shooting area, try to place them in the middle to avoid the robot arm limit

Enter the mycobot280RDKX5_vision_kit folder, enter the following command in the terminal, press the Enter key on the keyboard, wait for a while, and a camera window will open. After successful recognition, the robot arm will start to grab

python color_demo.py

Object sorting

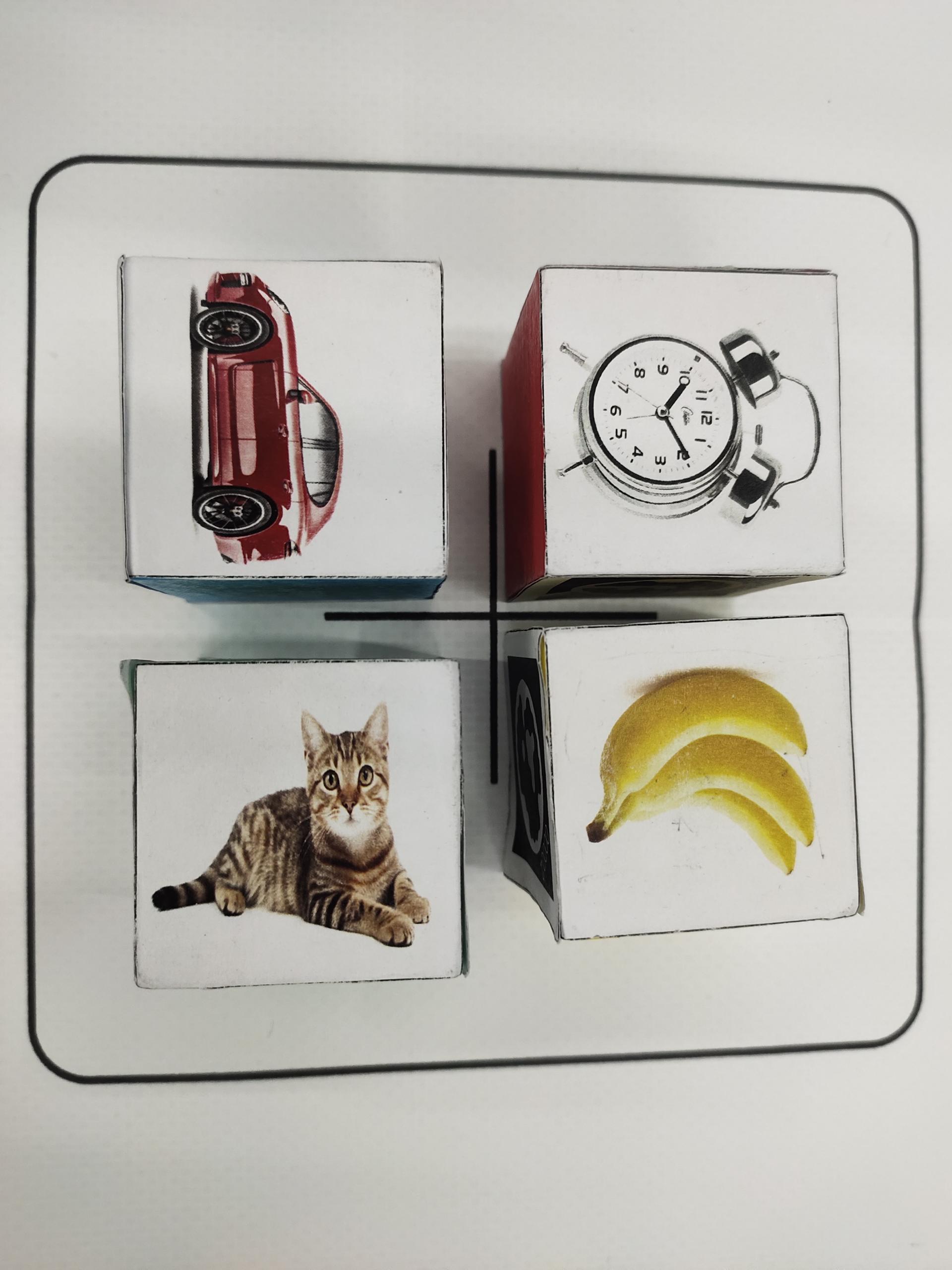

Place the 4 wooden blocks with the side facing the object facing up in the shooting area, and try to place them in the middle to avoid the robot arm limit

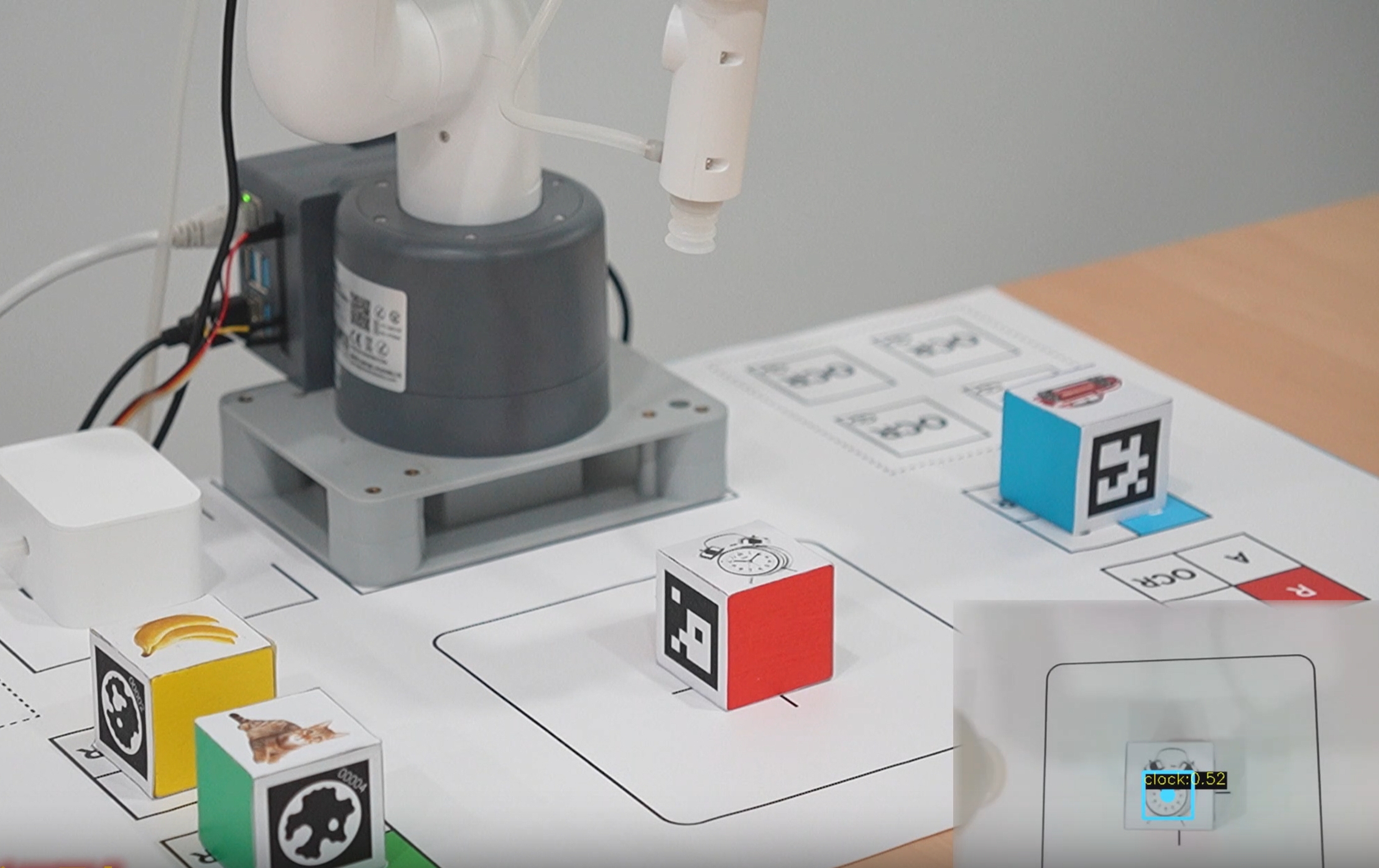

Enter the mycobot280RDKX5_vision_kit folder, enter the following command in the terminal, press the Enter key on the keyboard, wait for a while, and a camera window will open. After successful recognition, the robot arm will start to grab

python yolo_demo.py

Note: If the wired object cannot be recognized for a long time, you can rotate or move the wooden block slightly by hand

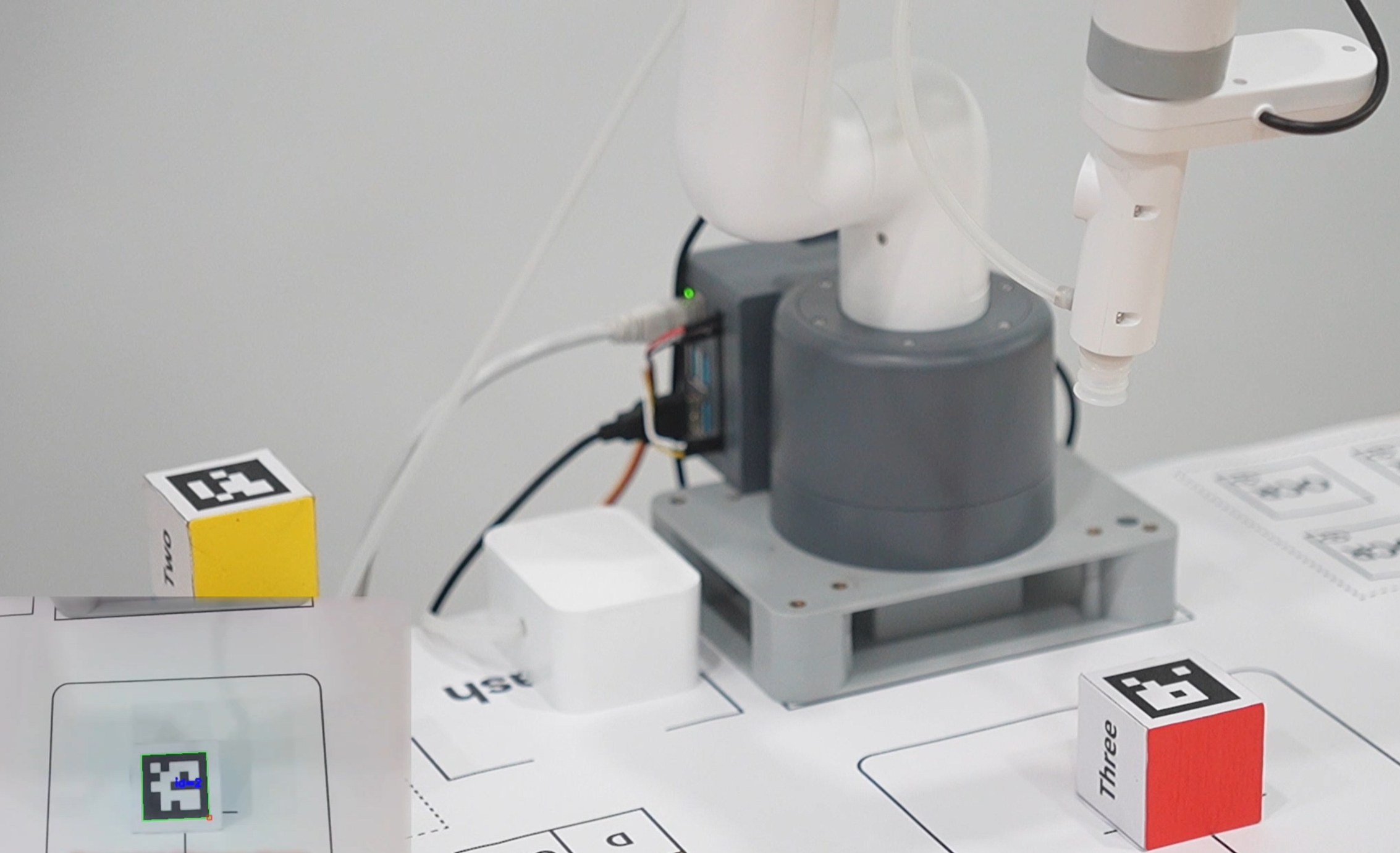

aruco QR code stacking

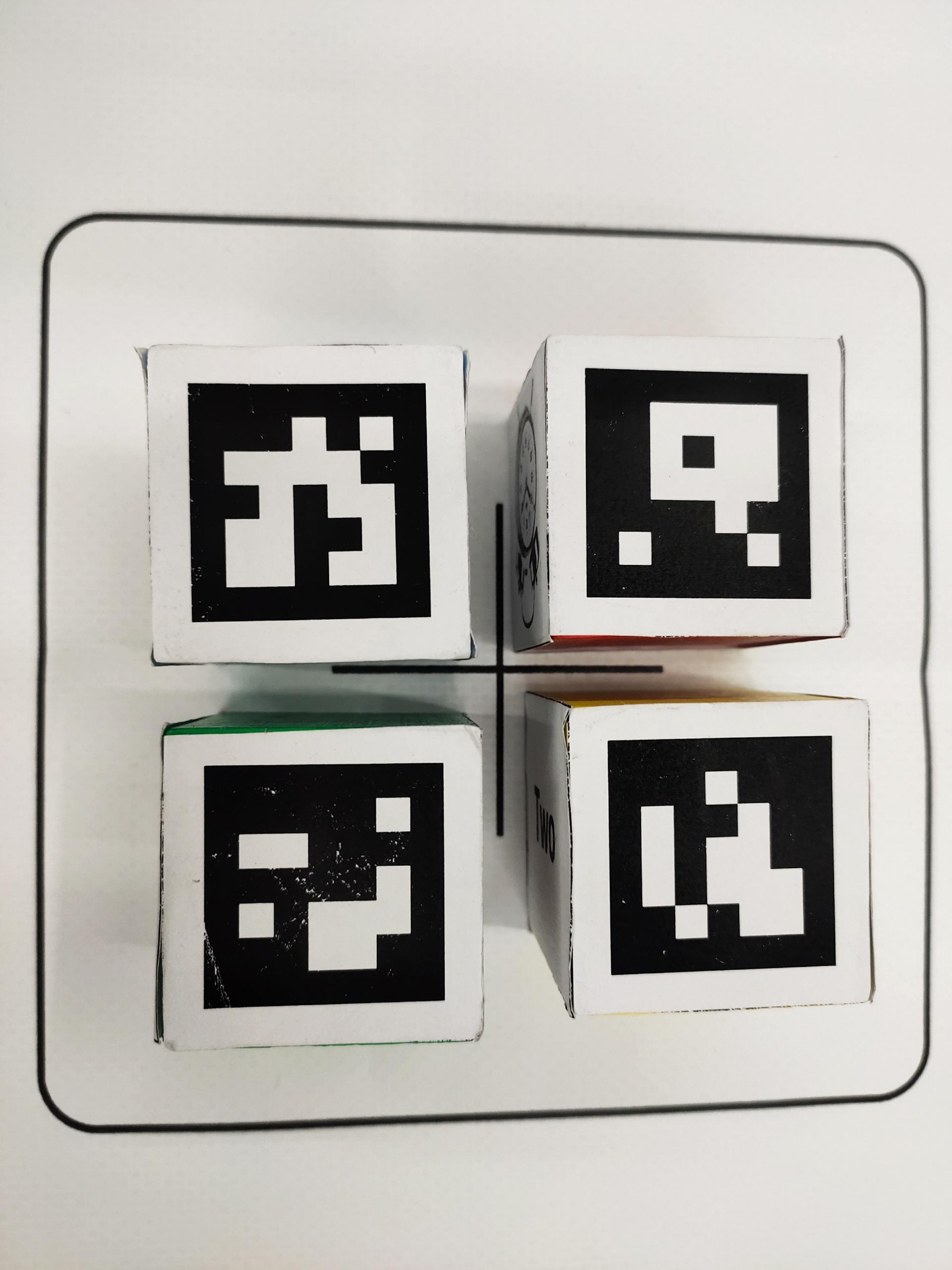

Place the 4 wooden blocks with the aruco QR code facing up in the shooting area, and try to place them in the middle to avoid the limit of the robot arm

Enter the mycobot280RDKX5_vision_kit folder, enter the following command in the terminal, press the Enter key on the keyboard, wait for a while, a camera window will open, and after successful recognition, the robot arm will start to grab

python aruco_demo.py

Note: If a wooden block is not successfully stacked, you need to end the program first, put the 4 wooden blocks back to the shooting area, and re-run the program to avoid collision in the stacking area

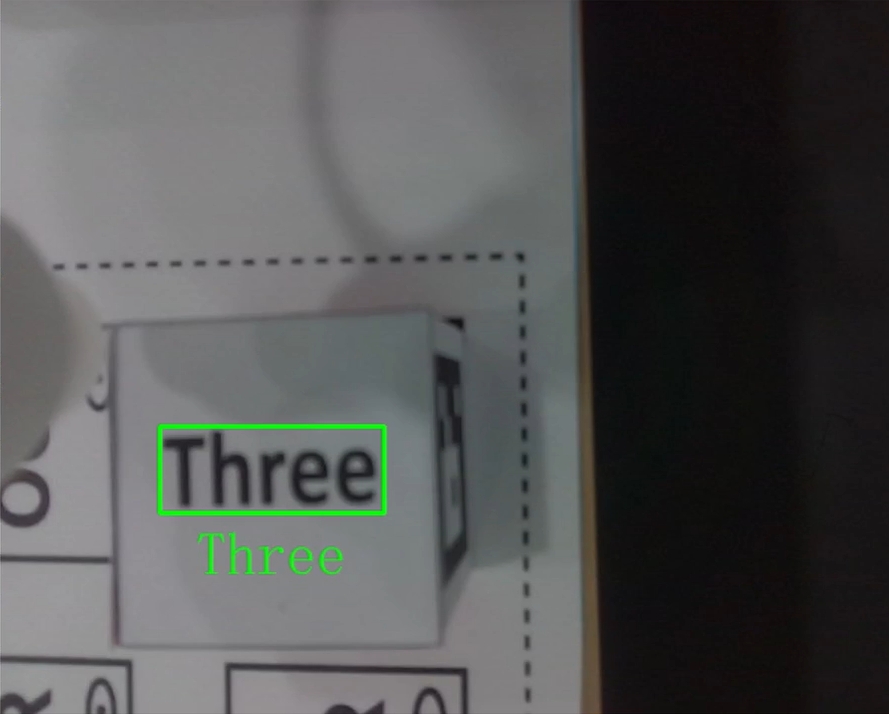

OCR sorting

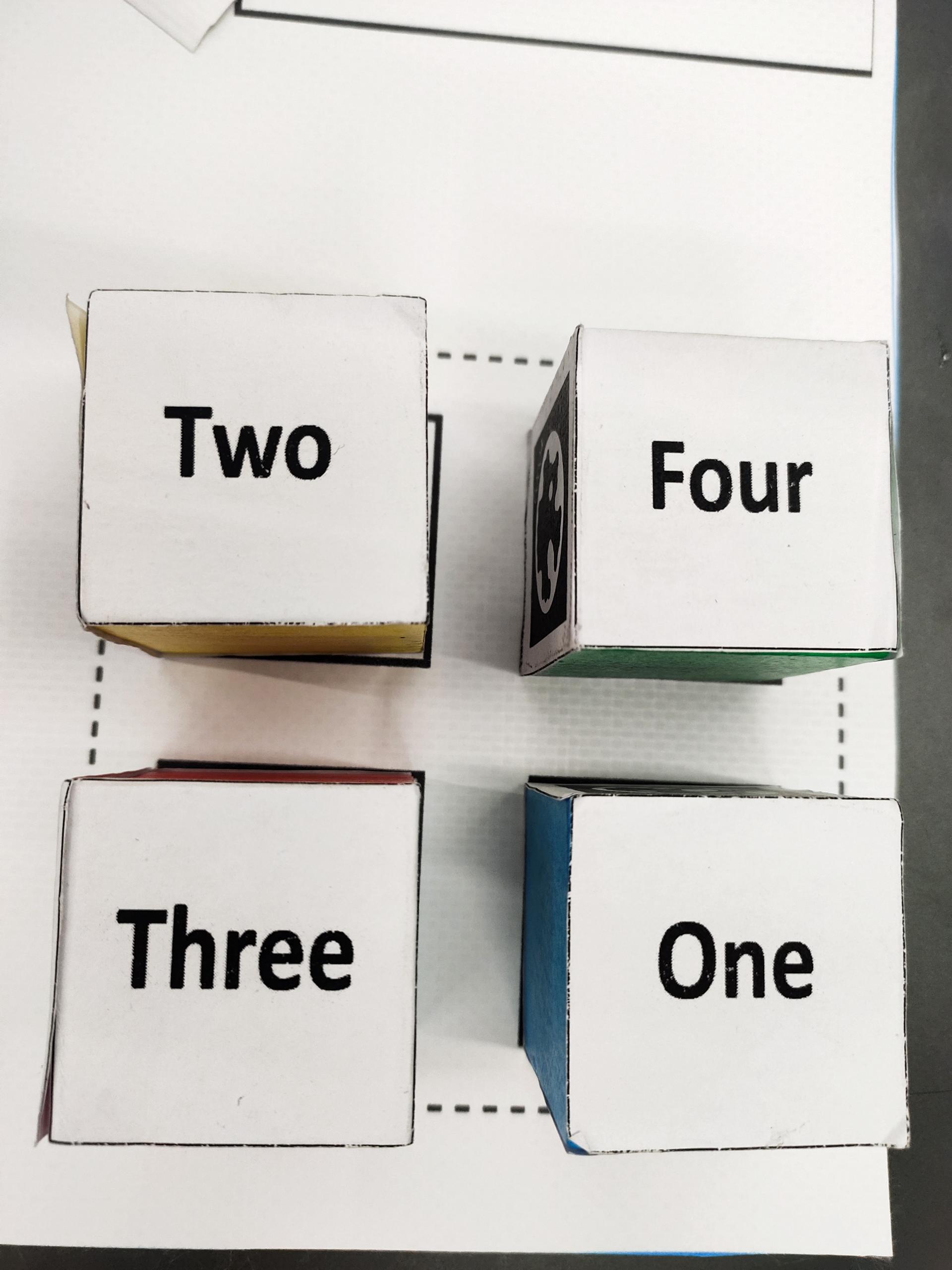

Place the 4 wooden blocks with the English words facing up in the OCR shooting area, and try to place them in the middle to avoid the robot arm limit

First enter the following command in the terminal and press the Enter key on the keyboard

export LD_PRELOAD=/home/sunrise/.local/lib/python3.10/site-packages/paddle/libs/libcommon.so

Then enter the mycobot280RDKX5_vision_kit folder, enter the following command in the terminal, press the Enter key on the keyboard, wait for a while, a camera window will open, and after successful recognition, the robot arm will start to grab

python ocr_demo.py

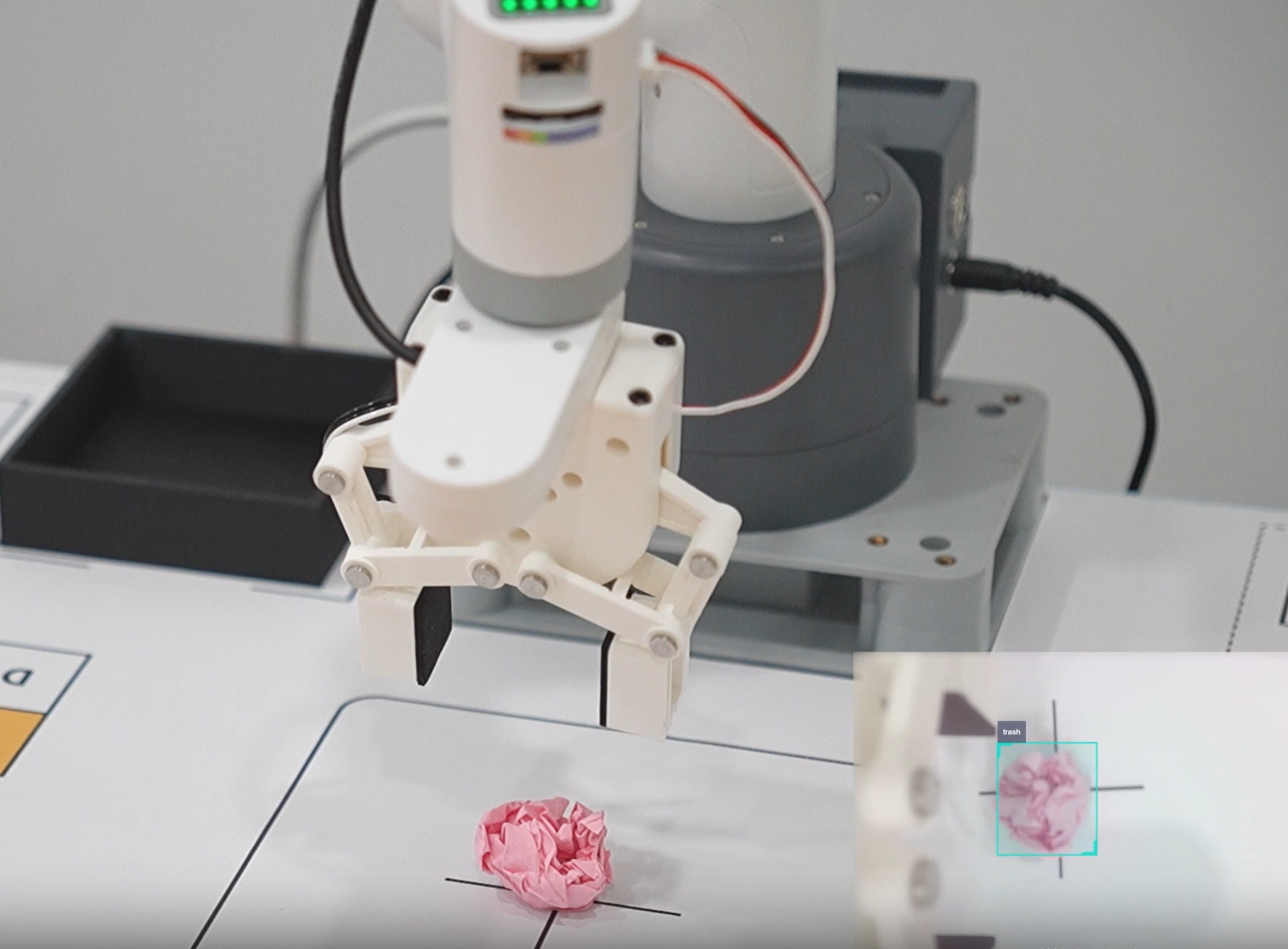

Garbage detection

First remove the end suction cup from the end of the robot arm, connect the suction pump box to the main control, enter the mycobot280RDKX5_vision_kit folder, enter the following command in the terminal, press the Enter key on the keyboard, and the joints of the robot arm will return to zero position

python robot_test.py

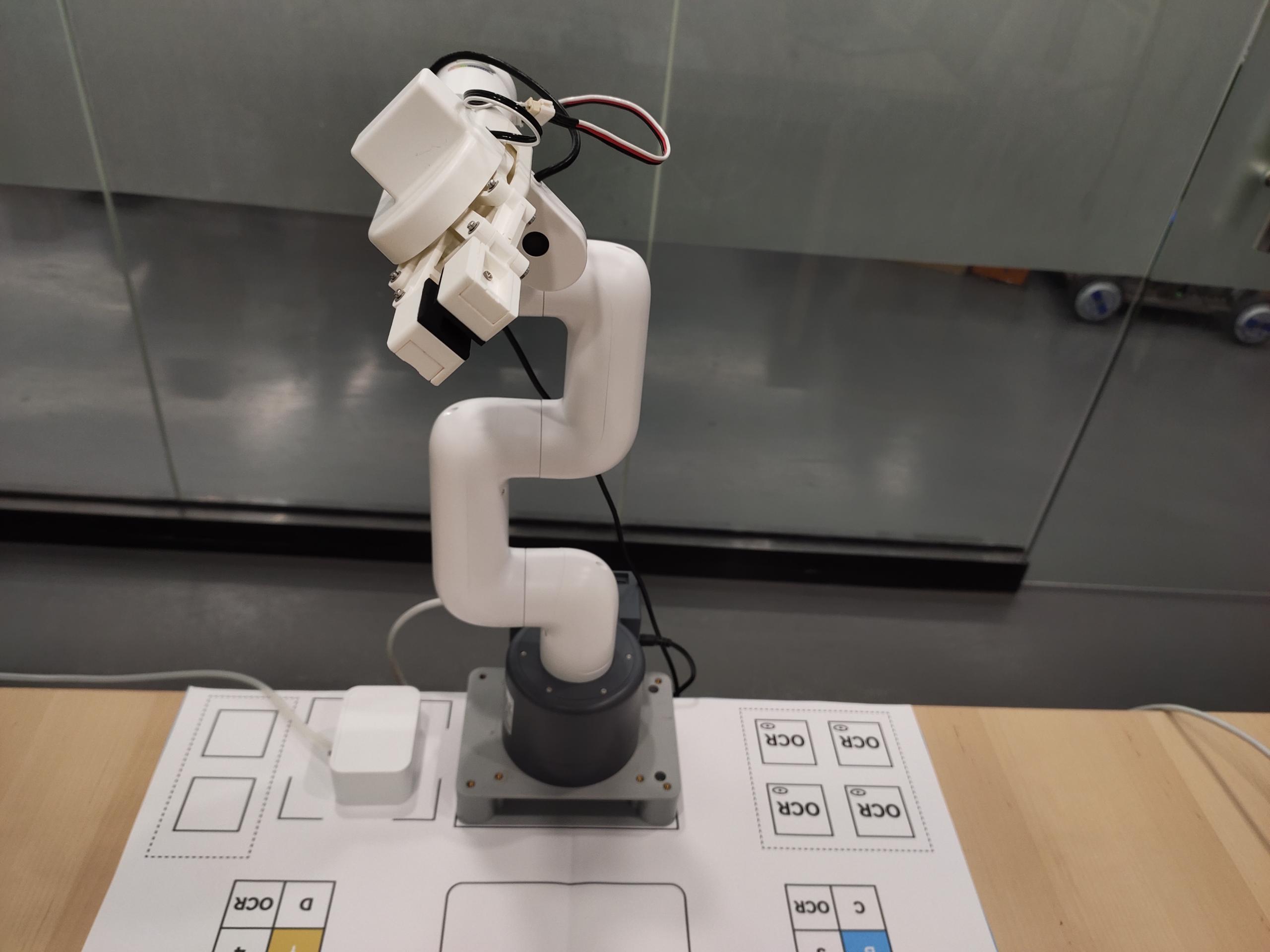

Then connect the gripper as shown below

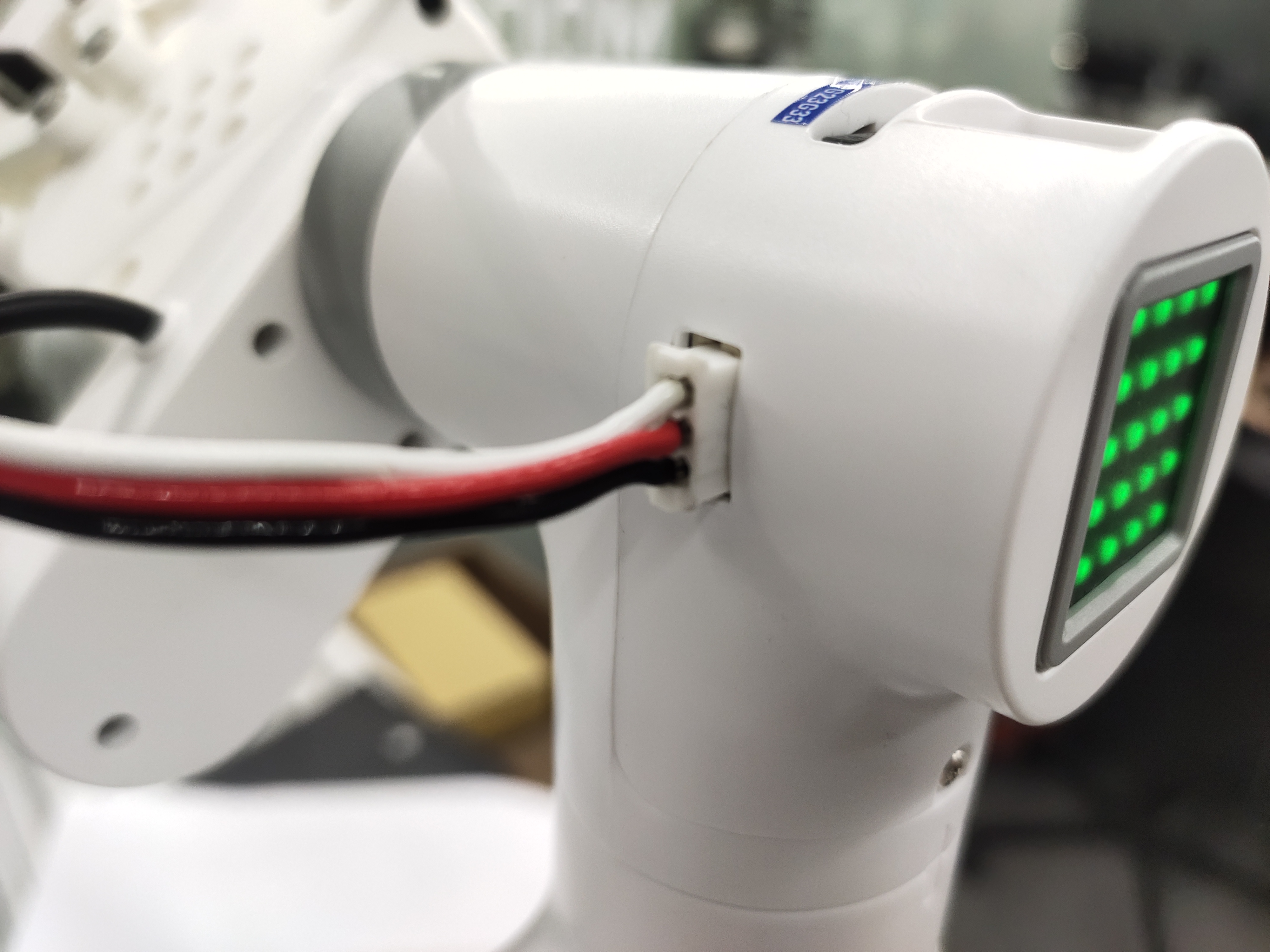

Connect the gripper cable to the 3Pin interface at the end of the robot arm

Open a terminal and enter the command, press the Enter key on the keyboard to run

export CAM_TYPE=usb

Then enter the following command to start the camera recognition node

ros2 launch dnn_node_example dnn_node_example.launch.py ​​dnn_example_config_file:=config/ppyoloworkconfig.json dnn_example_msg_pub_topic_name:=ai_msg_mono2d_trash_detection dnn_example_image_width:=640 dnn_example_image_height:=480

Enter http://192.168.127.10:8000 in the browser on the RDKX5 master to view the image and algorithm rendering effect:

Then enter the mycobot280RDKX5_vision_kit folder, enter the following command in the terminal, press the Enter key on the keyboard, and after successful recognition, the robot arm will start to grab

python garbage_demo.py
