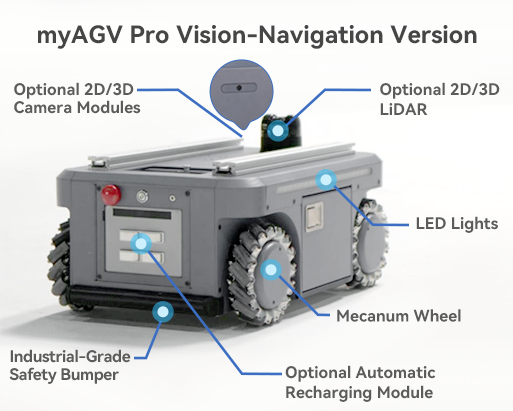

2.2 Visual-Navigation Edition
| Parameter Category | Details |
|---|---|
| Product Dimensions | 530360245mm |
| Weight | 40KG |
| Maximum Load | 50KG |
| Motion Mode | Omnidirectional System Steering |
| Communication | RS232 |
| Speed (Full Load Test) | 1.5m/s |
| Minimum Turning Radius | 0m (In-place rotation) |
| Maximum Climbing Angle | 10° |
| Battery | 24V 20AH Lithium Iron Phosphate |
| Operating Time | 5-6h (No load, 1m/s condition) |
| Charging Time | 5-6h |
| Suspension Type | Swing Arm Independent Suspension |
| Applicable Venue | Indoor |
| Protection Level | IP22 |
| Operating Temperature | -10-40℃ |
| External Interfaces | DC4017 charging port, XT60 24V5A power port1, XT30 12V5A power port1, USB-C serial port1, Ethernet port1, HDMI1, INPUT IO6, OUTPUT6, USB3.02 |

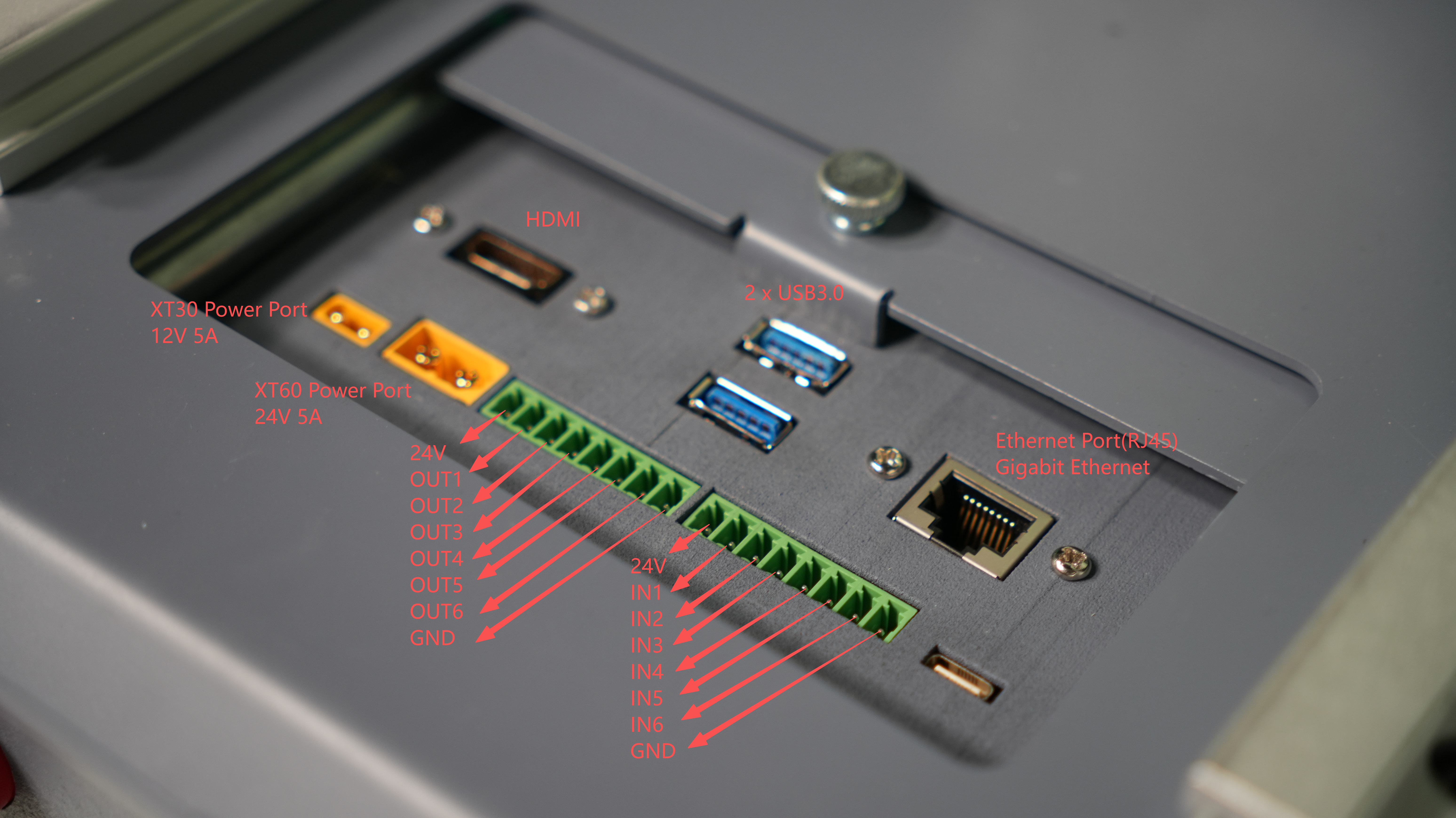

External Interface Description
| Interface Type | Specifications | Function Description |
|---|---|---|
| DC4017 Charging Port | Diameter 4.0mm/Length 17mm | Connects 25.55V 2.8A charging adapter to charge 24V 20Ah lithium iron phosphate battery (Red light = charging, Green light on = fully charged). |
| XT60 Power Port | 24V 5A | Provides stable DC power for external devices (such as myCobot320, mrArm M750, Mercury A1 robotic arms), supports maximum 120W power output. |
| XT30 Power Port | 12V 5A | Powers low-voltage devices (such as Jetson Orin Nano), compatible with common 12V electronic modules. |
| USB-C Serial Port | USB3.0 Protocol | High-speed data transmission, supports LED strip control command sending, sensor data collection (such as camera/Radar) |
| Ethernet Port (RJ45) | Gigabit Ethernet | High-speed network communication for vision/radar data transmission (such as 2D/3D camera images, point cloud data), remote monitoring or ROS node interconnection |
| HDMI | Standard HDMI Interface | Outputs debugging images (such as system real-time images), supports external monitor real-time monitoring. |
| INPUT IO | 6-channel Digital Input | Receives external signals (such as safety light curtain trigger signals),Provided API interface development. |
| OUTPUT | 6-channel Digital Output | Controls external devices (such as indicator lights, buzzers, relays),Provided API interface development. |
| USB3.0 | 2 Standard Interfaces | Expands high-speed peripherals (such as 3D cameras, solid-state drives), meets large-capacity data storage and real-time transmission needs. |
2D LiDAR Product Specifications

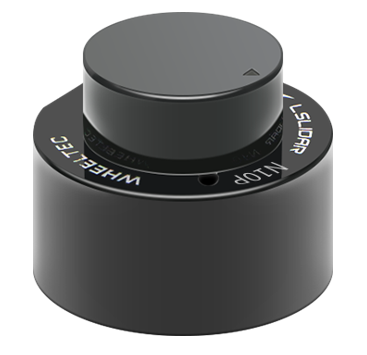

N10 Plus LiDAR Technical Specifications (Optional)
| Parameter | Specification |
|---|---|
| Model | N10 Plus |
| Type | Short Range |
| Scanning Angle | 360° |
| Emission Frequency | 5.4KHz |
| Angular Resolution | 0.4° ~0.8° |
| Scanning Frequency | 6Hz~12Hz |
| Measurement Accuracy | ±3cm@70% |
| Light Source | 905nm Laser |
| Range | 0m~15m@70% |
| Data Content | Angle, Distance, Intensity |
| Power Supply | 5VDC (4.75V~5.25V) |
| Environmental Temperature | Operating: -10℃~40℃, Storage: -30℃~70℃ |
| Anti-ambient Light | >60K Lux |
| Drive Method | Built-in Brushless Motor |
| Communication Interface | Standard Asynchronous Serial Port (Baud rate: 460800 bps) |
| Dimensions | Φ52*36.1mm |
| Weight | Approximately 60g |
| Protection Level | IPX-4 |
| Echo Count | Supports Dual Echo |
3D LiDAR Product Specifications
Unilidar_L2 LiDAR Technical Specifications (Optional)
| Parameter | Specification |
|---|---|
| Model | L2 |
| Laser Class | 905nm |
| Eye Safety Class | Class 1(IEC60825-1:2014) Eye Safe |
| Maximum Range | 30M (@90% reflectivity) 15M (@10% reflectivity) |
| Distance Accuracy | 0.05m |
| FOV | 360°90°/360°30° configurable |
| System Frequency | 128000 points/second |
| Effective Frequency | 64000 points/second |
| Scanning Method | Wireless Coil Brushless Rotating Scan |
| 4D Information | 3D coordinates + 10 Reflection Intensity Information |
| High Frequency Clock Frequency | 5.5GHz Tunable System |
| Emission Clock Frequency | - MHz |
| Communication Interface | ENET UDP/TCP TL UART |
| Communication Baud Rate | 4000000 bps(TTL UART) |
| Ranging Accuracy | ±2.5cm |
| Angular Resolution | 0.2° |
| Distance Resolution | 4.5mm |
| IMU Sampling Rate | 1KHz |
| IMU Reporting Frequency | 500Hz |
| IMU Drive Frequency | 3-axis Gyroscope + 3-axis Accelerometer |
| LED Light Control Frequency | 60° |
| LED Ring Frequency | 5.5GHz |
| Anti-strong Light Capability | 100KLux |
| Operating Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Protection Level | IP54 |
| Power | 10W (Ambient temperature 25°C) |
| Operating Voltage | 12V DC |
| Dimensions | 75 (diameter) ×75 (height) ×63 (width) mm |
| Weight | 235g |

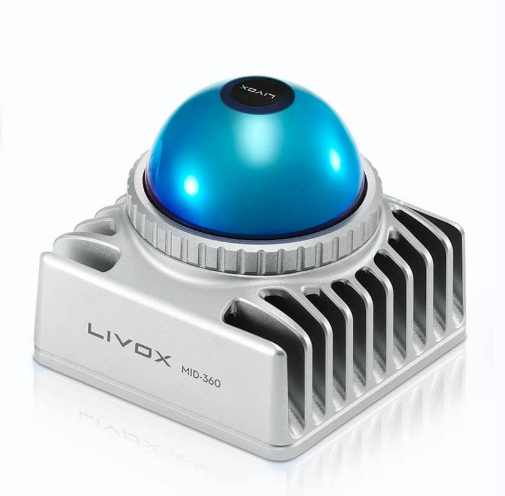

MID-360 LiDAR Technical Specifications (Optional)
| Parameters | Specifications |
|---|---|
| Model | MID-360 |
| Laser Class | 905nm |
| Eye Safety Level | Class 1 (IEC60825-1:2014) Eye Safe |
| Range (@ 100 klx) | 40 m @ 10% reflectivity 70 m @ 80% reflectivity |
| Near Blind Spot | 0.1 m |
| Field of View | Horizontal 360°, Vertical -7° to 52° |
| Ranging Error (1σ) | ≤ 2 cm (@ 10m) ≤ 3 cm (@ 0.2m) |
| Angular Error (1σ) | < 0.15° |
| Point Cloud Output | 200,000 points/second (Configurable First Echo) |
| Point cloud frame rate | 10 Hz (typical) |
| Data network port | 100 BASE-TX Ethernet |
| Data synchronization method | IEEE 1588-2008 (PTPv2), GPS |
| Anti-crosstalk function | Yes |
| False alarm rate (@ 100 klx) | < 0.01% |
| IMU | Built-in IMU model: ICM40609 |
| Operating temperature | -20°C to 55°C |
| Protection rating | IP67 |
| Power consumption | 6.5 W |
| Supply voltage range | 9 to 27 V DC |
| Dimensions | 65 × 65 × 60 mm |
| Weight | 265 g |

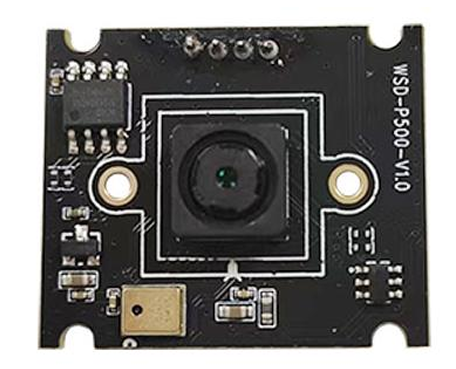

3D Depth Camera Gemini 2 Technical Specifications (Optional)
| Items | Parameters |
|---|---|
| Image Sensor | 1/4 inch cmos |
| Image pixels | 5 megapixels |
| Object Size | 1.5m 1.1-4m |
| Video output | MJPG/YUY2 |
| Focus | Fixed Focus |
| Lens Type | Low Distortion Lens, Parallel Light Lens, Fixed Focus |
| Field of view | - |
| Lens pixel current | <10 uA |
| working current | <360 mA |
| Storage Temperature | -20℃ to +75℃ |
| Working Temperature | -20℃ to +70℃ |
| SNR max | >40dB |
| White balance | auto, manual |
| camera control | Brightness, Saturation, Contrast, Sharpening, Tone, Clarity, Gamma, Backlight Compensation |
| exposure | auto, manual |
| Digital interface | 4-pin 2.0 spacing (2.0mm Spacing/4-pin pitch) |
| Data transfer rates | 480Mb/S |
| Operating voltage | DC5V |
| Disconnect | USB2.0 |
| system compatibility | Win XP, Win 7/8/10, EmbLinux, Android 2.2, iOS, Linux with UVC driver and other systems |
| Warranty | 1 years |
| MJPG Resolution | YUY Resolution |
| 2592@1944@30fps | 2592@1944@1fps |
| 2560@1440@30fps | 2560@1440@6fps |
| 2048@1536@30fps | 2048@1536@1fps |
| 1920@1080@30fps | 1920@1080@7fps |
| 1600@1200@30fps | 1600@1200@fps |
| 1280@960@30fps | 1280@960@1fps |
| 1280@720@30fps | 1280@720@1fps |
| 1024@768@30fps | 1024@768@10fps |
| 800@600@30fps | 800@600@10fps |
| 640@360@30fps | 640@360@30fps |
| 640@480@30fps | 640@480@30fps |
| 352@288@30fps | 352@288@30fps |
| 320@240@30fps | 320@240@30fps |
| 176@144@30fps | 176@144@30fps |

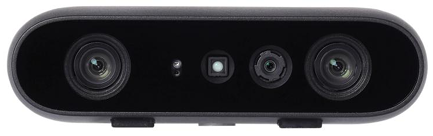

Gemini 2 Camera Technical Specifications (Optional)
| Parameter Category | Parameter Name | Gemini 2 |
|---|---|---|
| Basic Parameters | Name | Gemini 2 |
| Application Scenario | Indoor/Semi-outdoor | |
| Depth Measurement Range | 0.15m ~ 10m | |
| Ideal Working Range | 0.2m ~ 5m | |
| Camera Driver | UVC | |
| SDK | Orbbec SDK | |
| Camera Principle | Active Binocular Structured Light | |
| Baseline | 50mm | |
| Depth Parameters | Depth Measurement Accuracy@2m | < 2% (1280 x 800 @ 2m & 81% ROI) |
| Depth Working Mode | Unbinned Dense Default - High depth density Unbinned Sparse Default - Balanced depth density and power consumption Binned Sparse Default - Low power, low latency, high frame rate |
|
| Depth Image Resolution@Frame Rate | 1280 x 800@30fps 640 x 400@60fps |
|
| Depth FOV | H91°/ V66°/ D101° ± 3° @2m | |
| Depth Sensor Technology | Global Shutter | |
| Infrared Parameters | Infrared Camera Resolution@Frame Rate | 1280 x 800@30fps 640 x 400@60fps |
| Infrared Image FOV | H94°/ V68°/ D104° ± 3° | |
| Color Parameters | Color Image Resolution@Frame Rate | 1920 x 1080@30fps 1280 x 720@60fps 640 x 360@60fps 640 x 360@60fps |
| Color Image FOV | 16:9 H86°/ V55°/ D94° ± 3° 4:3 H63°/ V50°/ D75 ± 3° |
|
| Color Sensor Technology | Rolling Shutter | |
| Functional Parameters | D2C Post-Depth Image FOV | 16:9 H86°/ V55°/ D94±3° @2m 4:3 H63°/ V50°/ D75±3° @2m |
| LDP | Support 9440nm Measurement distance: 1mm ~ 4000mm |
|
| IMU | 6-axis Three-axis Gyro Acceleration + Three-axis Angular Velocity |
|
| IR Pattern AE Function | Support | |
| UVC | Support | |
| RGB Function | Support | |
| Electrical Parameters | Data Transfer Interface | USB 3.0 & USB 2.0 |
| Power Consumption | Typical average< 2.5W Peak average< 2.5W Maximum peak< 7.0W |
|
| Supply Voltage | DC 5V ±1.5A | |
| Operating Temperature | 0℃ ~ 40℃ | |
| Operating Humidity | < 95 %RH (Non-condensing) | |
| Storage Temperature | -20℃ ~ 60℃ | |
| Physical Parameters | Multifunctional SB Interface | 8-Pin |
| Data and Power Interface | Type-C | |
| Camera Dimensions | L90 x W25 x D30 mm ± 0.5mm | |
| Device Weight | 97g ± 3g | |
| Waterproof and Dustproof | Basic Dust Protection | |
| Camera Mounting Method | Bottom mount: 1 x 1/4-20unc screw hole Back mount: 2 x M3 screw holes |
|
| Others | Warranty | Overall Heat Dissipation |
| Certification | Class 1, RoHS, FCC, CE, Reach, KC | |
| Service Life | 3 years |
