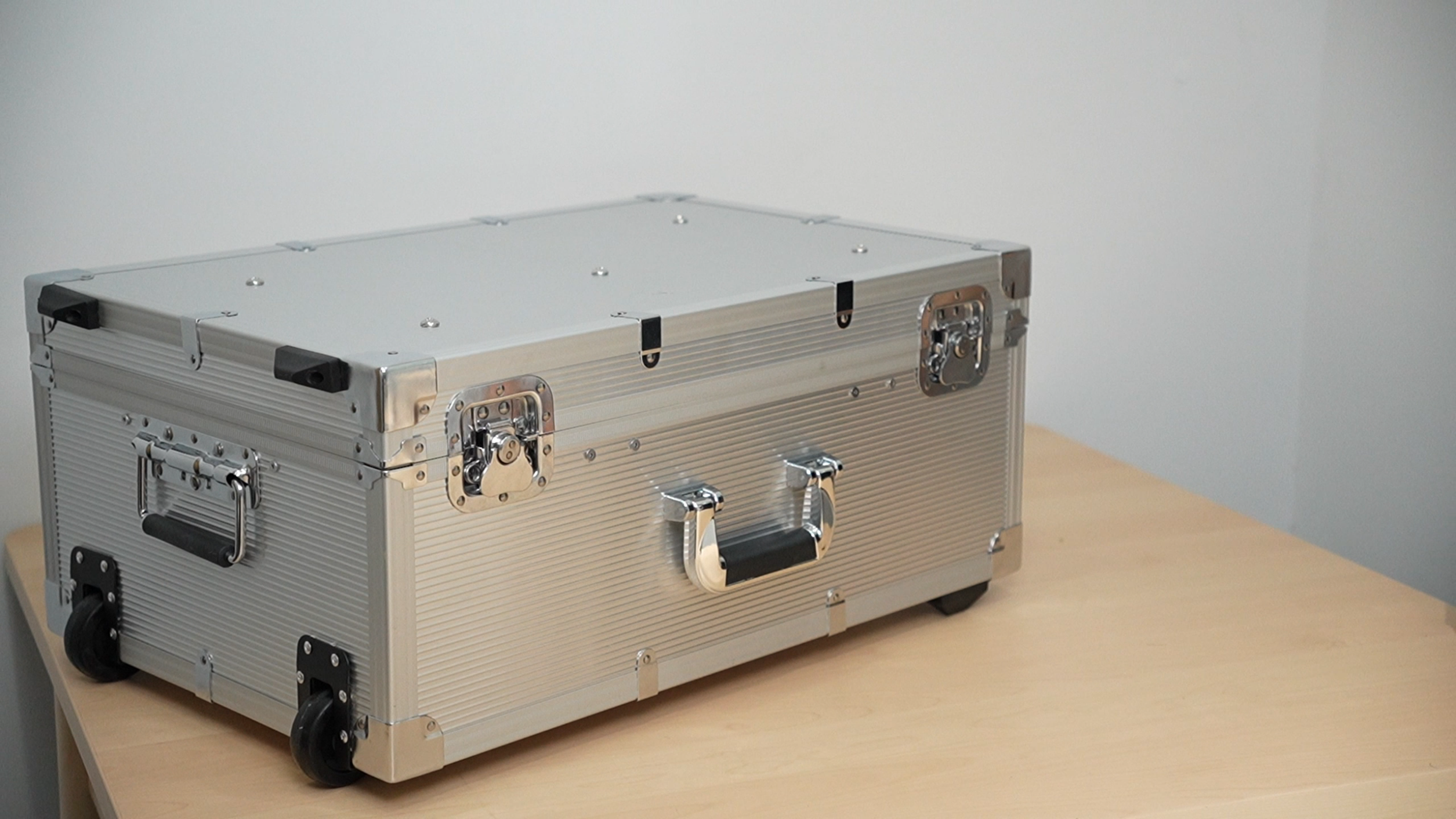

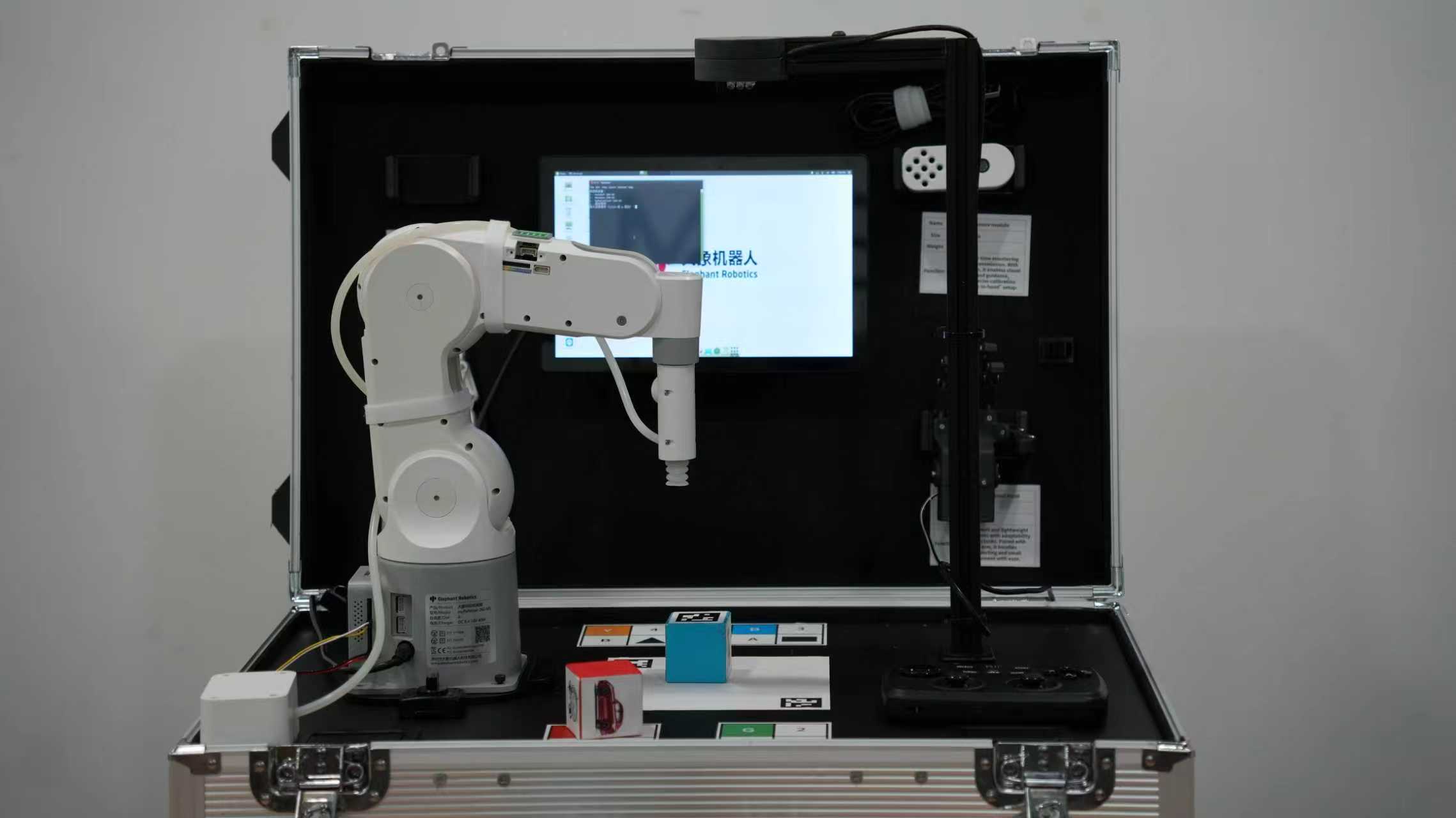

Ai Portable Training Box - Version 260
(Host and accessories must be purchased separately)
| Parameter Category | Detailed Information |
|---|---|
| Model | Suitcase |
| Overall Dimensions | 640×420×285mm |
| Overall Weight | 11.2KG (excluding robotic arm) |
| Power Supply | 12V 5A |
| Camera Flange (Standard) | my Series Camera Module |
| Touch Screen | 10.1-inch Touch Screen (1920*1200) |
| Keyboard, Mouse, and Controller Combination | RK707 USB Connection (Single Wireless Version) |
myPalltizer 260
| product | picture | Link |
| myPalletizer 260 M5 |  |
Introduction |
| myPalletizer 260 PI |  |
Introduction |
| Parameter Category | Details |
|---|---|

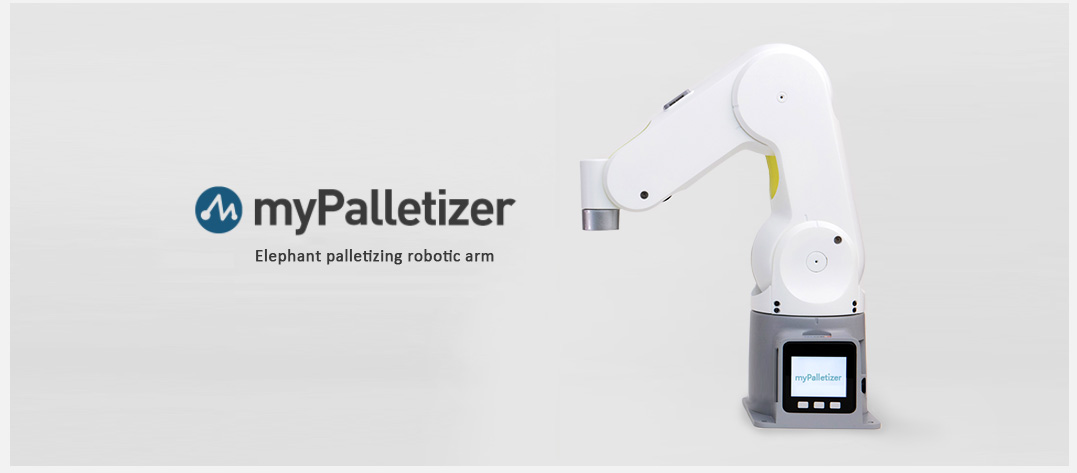

| Model | myPalltizer 260 for M5 |
| Degrees of Freedom | 4 |
| Payload | 250g |
| Working Radius | 260mm |
| Repeatability | ±2mm |
| Weight | 960g |
| Power Input | 8 to 12V, 5A |
| Operating Temperature | -5-45°C |
| Communication | Type-C |
| Parameter Category | Details |
|---|---|

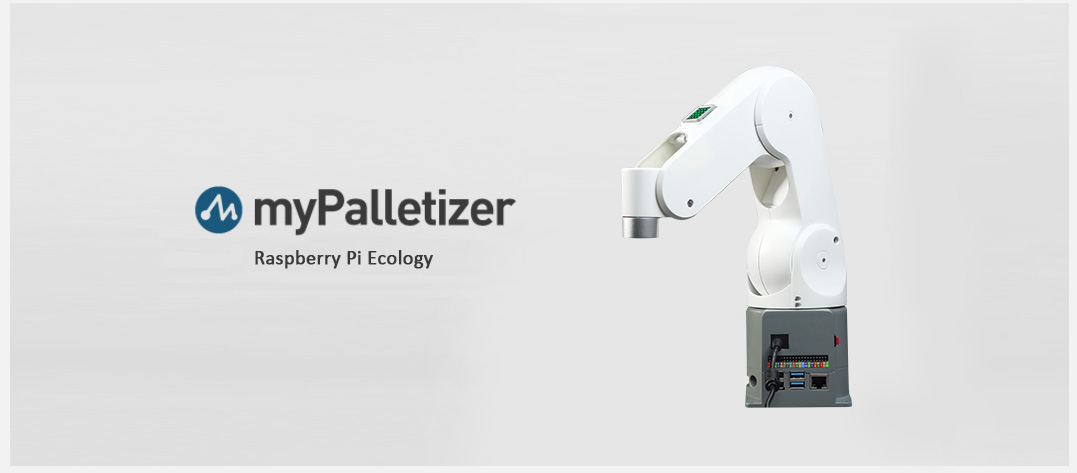

| Model | myPalltizer 260 for Pi |
| Degrees of Freedom | 4 |
| Payload | 250g |
| Working Radius | 260mm |
| Repeatability | ±2mm |
| Weight | 960g |
| Power Input | 8 ~ 12V, 5A |
| Operating Temperature | -5-45°C |
| Communication | Type-C |
