MyBlockly

myStudio Pro is already configured on your machine. You can access it via your PC by opening a browser and using ip:8000. After the homepage loads, the system will automatically establish a connection with the machine (default static IP: 192.168.0.232:8000).

You can click the myBlockly icon or the Create File button to enter the myBlockly programming page.

Alternatively, you can click the Create File button to automatically jump to the blockly programming page, loading your saved file content, including the workspace, waypoints, and track file (for information on saving the workspace, click here).

Clicking the myBlockly icon or the Create File button to enter the myBlockly programming page is equivalent to creating a new workspace.

The myBlockly homepage is shown below:

1 Introduction to the myBlockly Main Interface

2 Basic Function Usage

Let's write a small case study to introduce the basic usage of myBlockly

Case Description: Control the robotic arm to return to zero, then control one joint to move to a 20-degree position, and then return to zero.

Step 1: First, click the Posture button to open the attitude view, where you can see the current attitude of the simulated robotic arm.

• 1: Switch the posture panel: Click to show when the posture panel is hidden, and click to collapse when it is hidden.

• 2: Robotic arm simulation model, which can simulate motion in real time based on the current actual angle.

Step Two: Start Programming

Open the toolbox, first-level category Movement, select the second-level category Angle & Coord, and drag the Set Angles block to the workspace.

This block is used to control the movement of each joint of the robotic arm to a given angle. The default movement speed is 20.

Open the toolbox's primary category Basic, select the secondary category Time, drag the Sleep block to the workspace, and set the sleep time to 3 seconds.

Copy the Set Angles block and modify the J 1 angle to 20:

• Click to select the Set Angles block in the workspace;

• Press Ctrl + C to copy the Set Angles block;

• Press Ctrl + V to paste the Set Angles block;

• Modify the J 1 angle of the new block to 20;

• Drag the block to connect it to the Sleep block;

Similarly, copy the Sleep block and set the sleep time to 3. Seconds;

Copy the first Set Angles block in the workspace again;

The complete code is as follows:

This code means:

>

• Control the robotic arm to return to the zero point


• Wait 3 seconds


• Move one joint (J1) to a 20-degree position


• Wait 3 seconds


• Control the robotic arm to return to the zero point

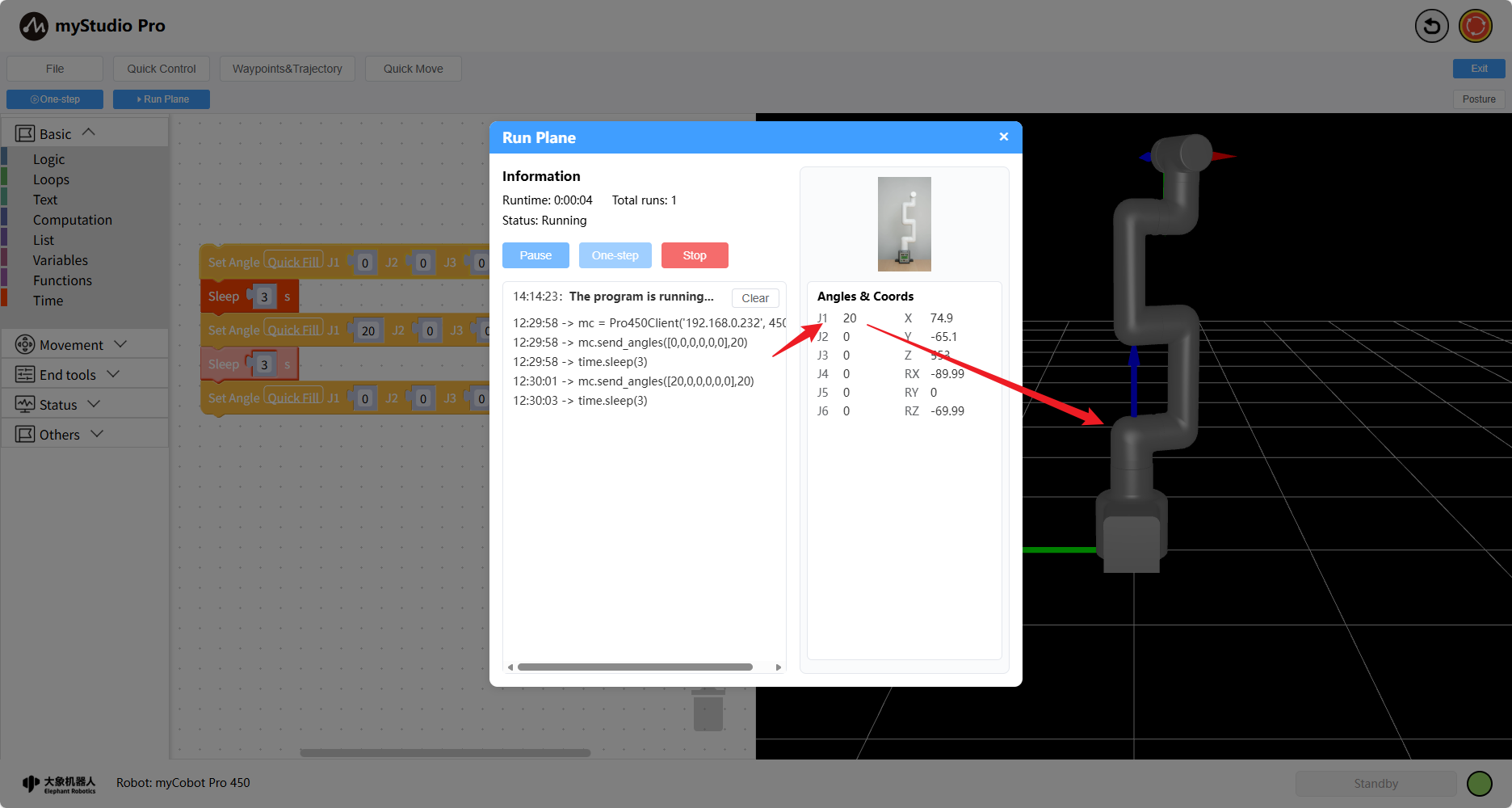

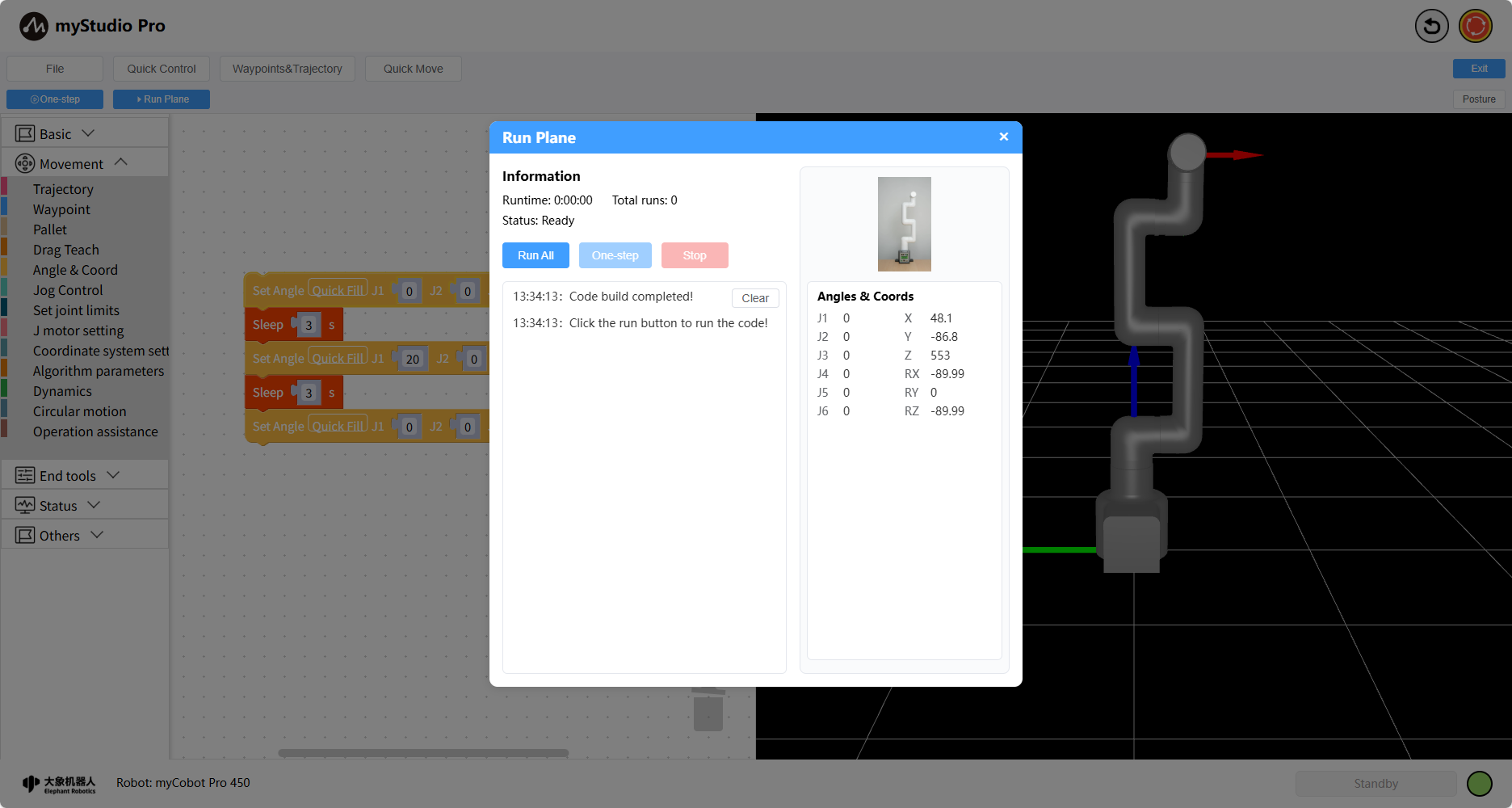

Finally, click the Run Plane button. After opening the panel, click the Run All button to start executing the code. The right side of the Run Plane will display the joint and angle coordinates in real time, and the 3D model will also simulate motion.

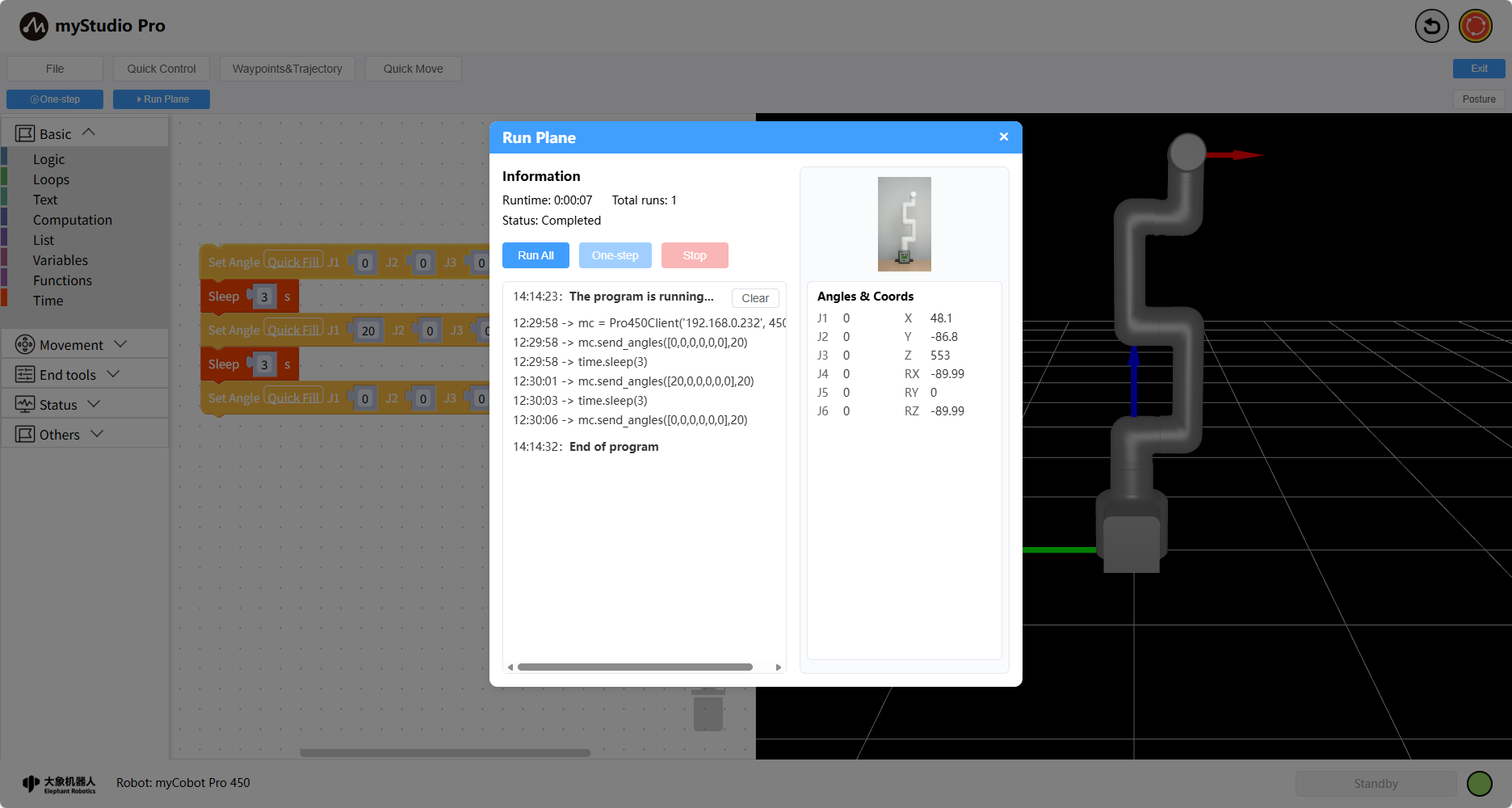

The code has finished running. Click the X on the panel to close it.

Step 3: Saving and Loading Files (or Saving and Loading the Workspace)

myBlockly supports saving and loading the workspace.

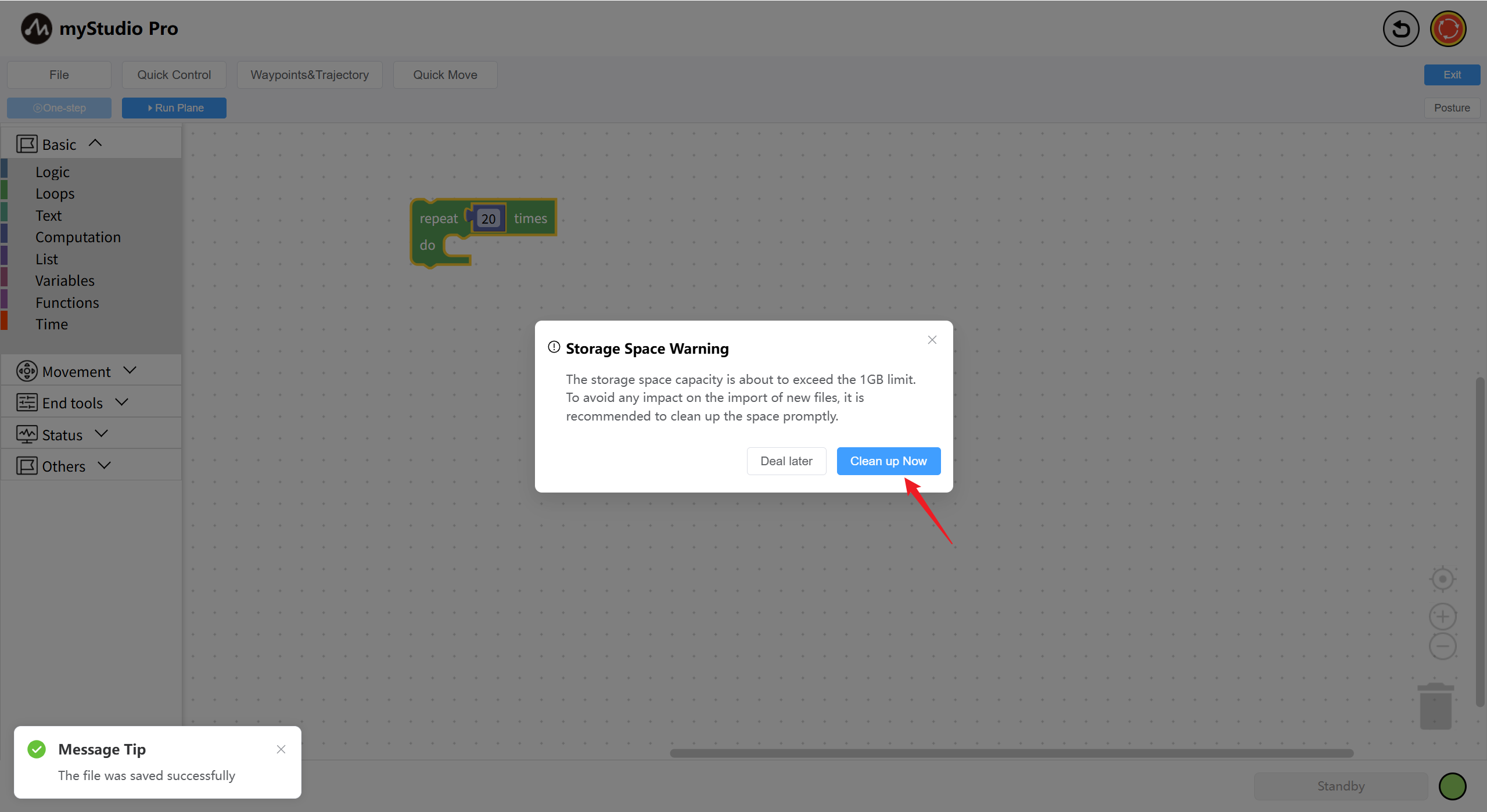

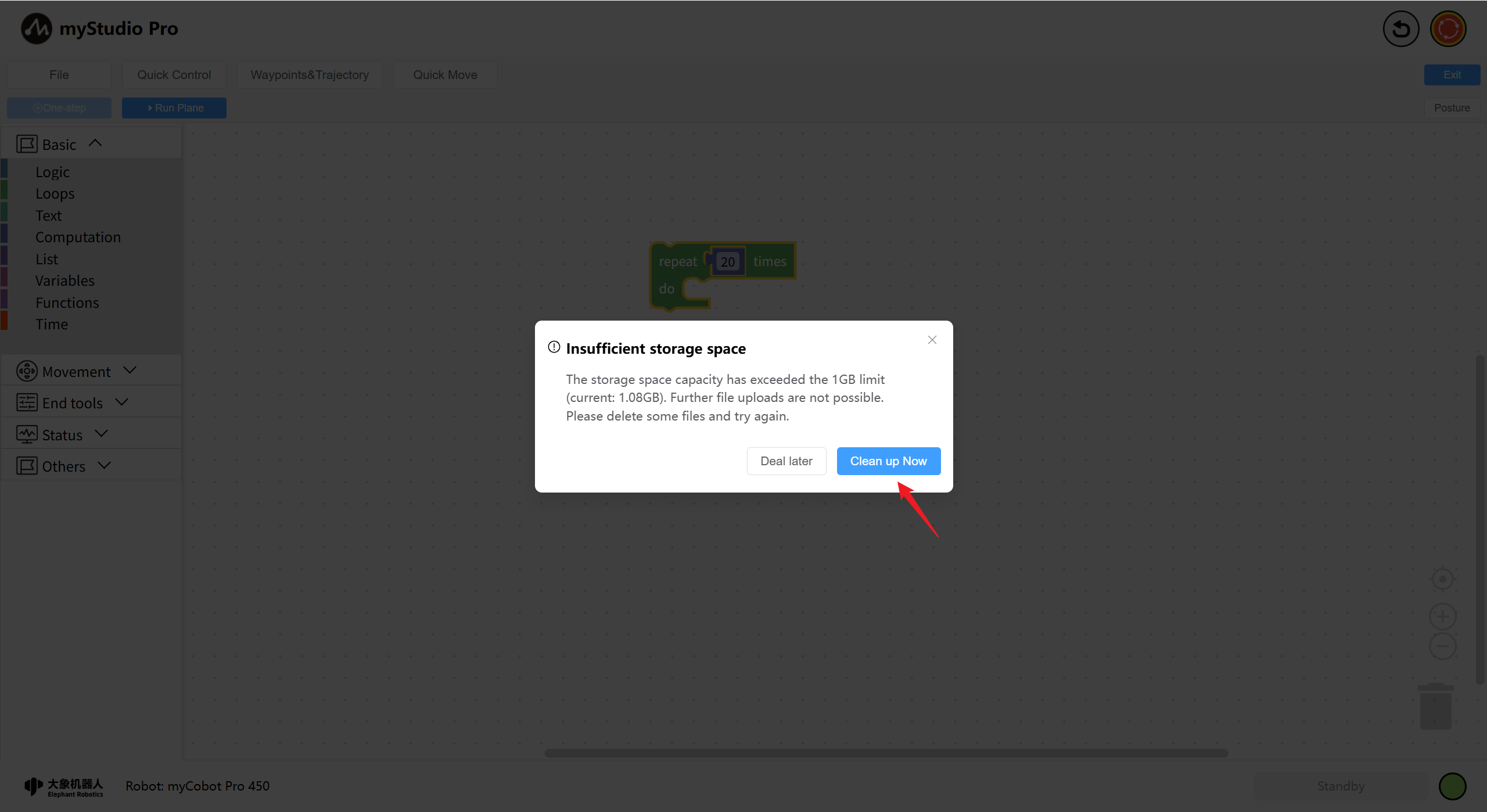

Click the File button, and a drop-down menu will appear. Click the Save button, and a file naming modal will appear. Enter your desired name and click Confirm to save (by default, it will be saved to the test space). The saved result will be displayed as a message in the lower left corner.

Step 4: Creating a New Workspace (This operation will clear all code in the workspace)

Click the File button. A drop-down menu will appear. Click the Create button. A prompt will appear. Click the OK button.

Workspace creation complete.

Step 5: Load the previously saved workspace file.

Click the File button. A drop-down menu will appear. Click the Open button in the menu. A list of saved files will be displayed. Select the file you want to load, and use the edit button in the operation column to load the file into the workspace.

Loading complete.

3 Quick Fill

This chapter introduces the Quick Fill function in the block.

When a block has too many data items, filling them one by one is too tedious. Therefore, for blocks with too many data items, we can use the Quick Fill function.

Quick Fill Source: Angle or coordinate data of the current robotic arm posture.

The following blocks currently support quick fill:

How to Use Quick Fill

Taking the Set Angles block as an example, first select the block, then click the Quick Fill button within it.

When the following prompt box appears on the page, the fill was successful.

4 Quick Move

What is Quick Move? Simply put, it's controlling the robot's movement quickly with just mouse clicks, without any programming.

Note: myStudio Pro has two Quick Move control panels; their functions are largely the same.

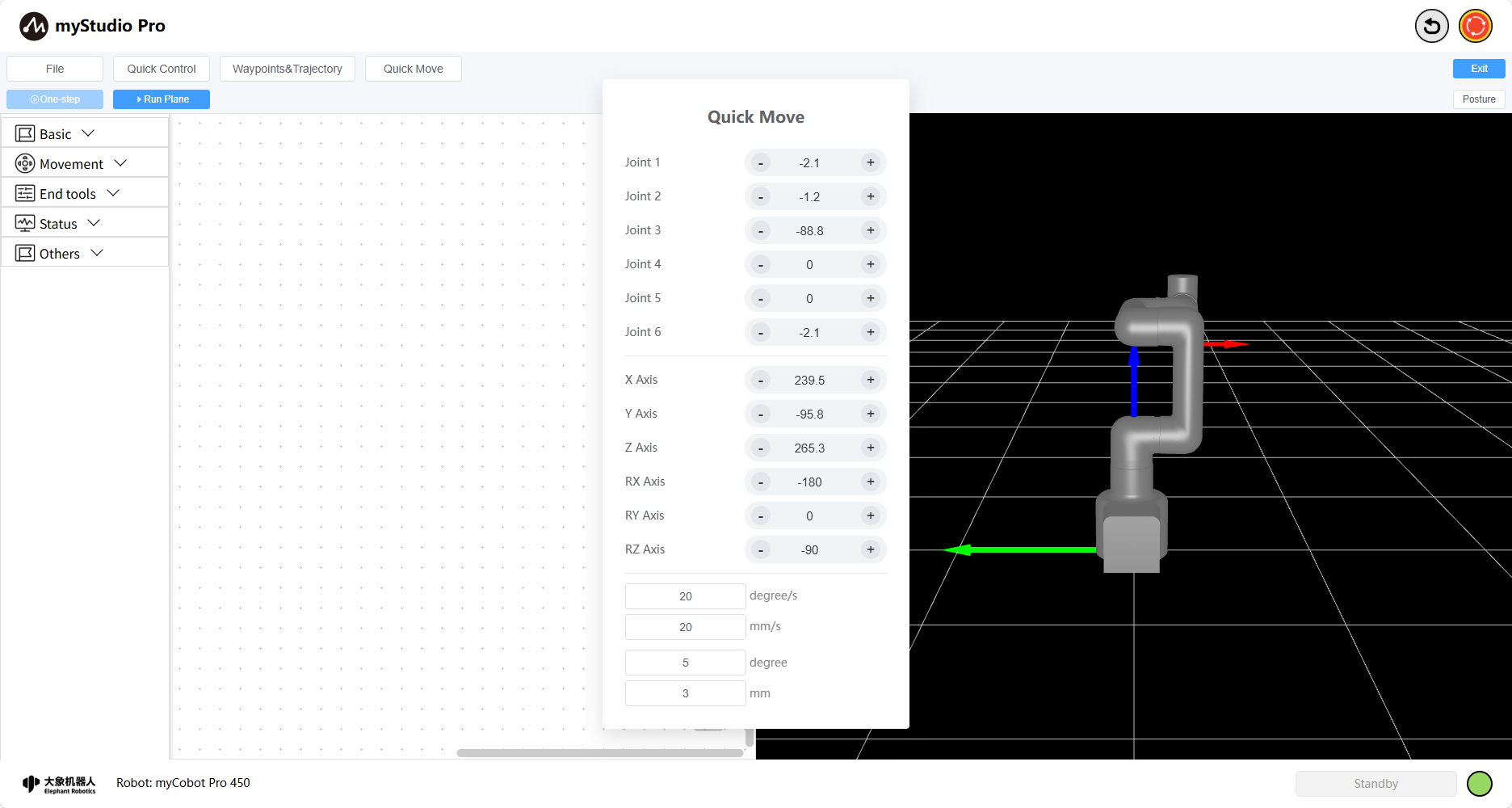

Step 1: Click the Quick Move button to open the Quick Move panel and wait for the robot data to return.

If all data is zero, please check if the robotic arm is connected and if it is functioning correctly.

Step 2: Use the - and + buttons to control different joints of the robotic arm. Single-point movement, long-press for continuous movement, and direct modification of angles and coordinates followed by pressing Enter are supported.

Step 3: Control the coordinates.

First, you need to move joint 3 to approximately -90 degrees, as shown in the image below.

Then you can click the - / + buttons on different axes to control the coordinates.

For other functions, please refer to Quick Move

5 Learning to Use Coordinate Control

Main APIs Involved:

Set Coord

• Prototype: send_coords(values,speed)

• Interface Description: Sets multiple coordinates for the robotic arm

• Parameters:

• values: [X,Y,Z,RX,RY,RZ]

• speed: Speed, range 1-100

Small Case

Some operations to be performed before first using coordinate movement:

• Return the robotic arm to zero position. Refer to Controlling the robotic arm to zero

• Set the initial posture of the robotic arm's coordinate movement (machine J3 needs to be parallel to the ground)

• As shown in the code below:

Open the Run Plane and run the code.

Coordinate Movement

Drag a Set Coord block to the workspace, and click the Quick Fill button on the block to fill in the data. Change the Z axis data to 300.

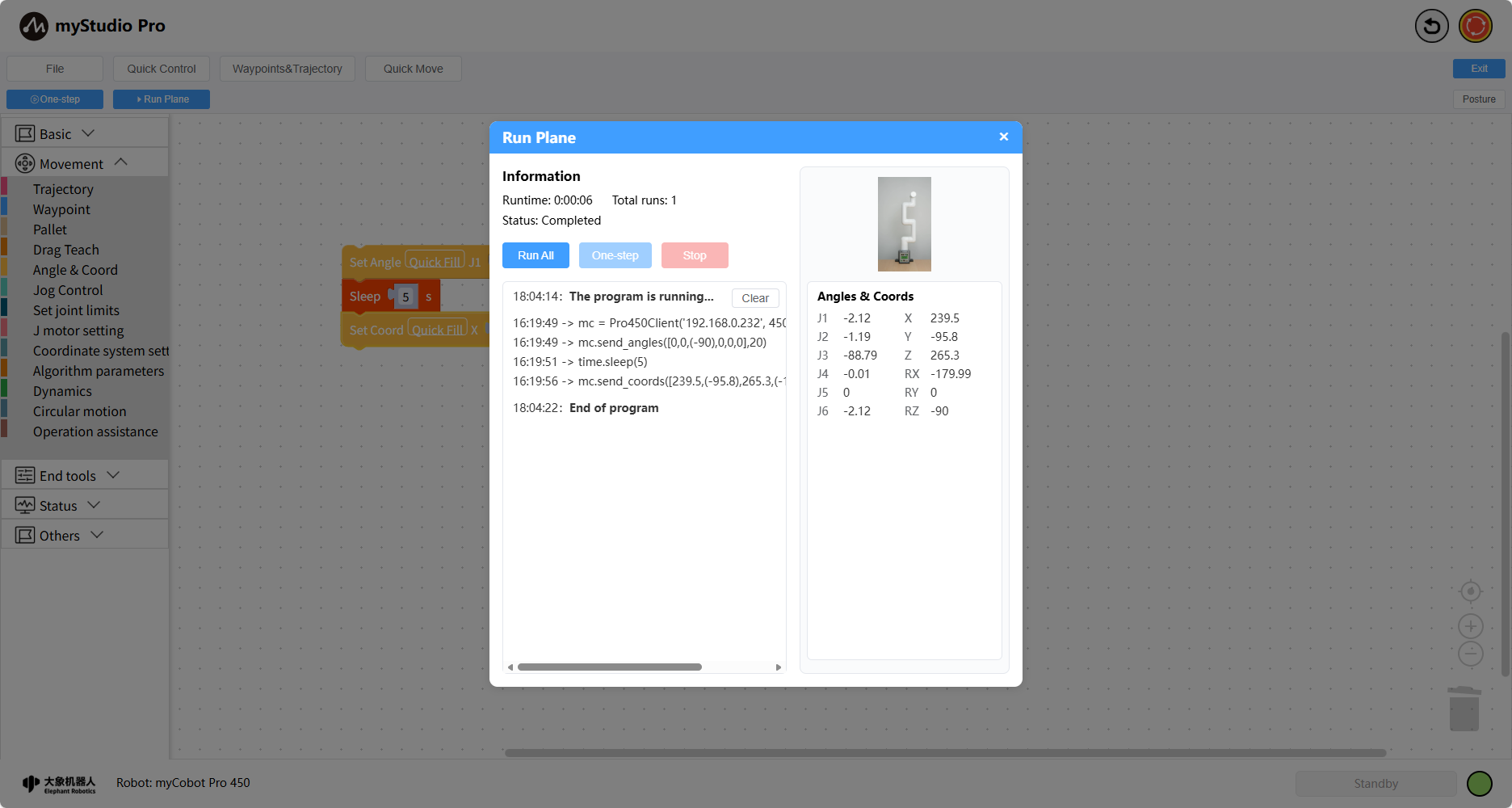

The complete code is as follows:

Execute the code; observe the robotic arm moving up and down throughout the process.

6 One-step

One-step execution refers to executing one block at a time. When there are many blocks in the workspace, I only want to execute one block to see the effect. This is where you can use the One-step button.

The One-step button is disabled by default and cannot be clicked.

Step 1: Drag several joint setting blocks into the workspace.

Step 2: Select the Set Joint block. You will observe that the One-step button has been unlocked (its color has changed to a darker shade).

Step 3: Click the One-step button. This will automatically open the run panel and begin executing the code. Simultaneously, observe the changes in the robotic arm's movement. (Single-step execution sets joint 1 to 30°)

7 Program Control

Introduces how to debug block code using the Run Plane , enabling program Pause, Recover, One-step, and Stop.

Edit a program to control the movement of joint 1 of the robotic arm.

Click the Run Plane button. When the Run Plane pops up, click Run All, and immediately click the Pause button. The program will pause after executing the first instruction mc.send_angle(1,0,20).

The program is paused. The next instruction to be executed, time.sleep(3), appears.

At this point:

• If you click the Recover button, the program will automatically continue execution;

• If you click the One-step button, The program will execute the time.sleep(3) instruction. When One-step is clicked again, the program will execute the next instruction, namely mc.send_angle(1,-90,20);

• If you click the Stop button, the program will be terminated;

What happens next is up to you!

8 Using Drag-and-Teach

This chapter introduces how to use the drag-and-teach function in myBlockly.

This refers to the movement of the manipulator along the direction of the operator's force under the operator's traction (traction of the end or traction of a manipulator).

This function makes it easy to plan trajectories (for tasks where the process trajectory accuracy is not high), so that the operator can record and reproduce the trajectory without manual programming, lowering the barrier to entry for operators and improving efficiency.

API Display

Small Case Study

We will achieve the following effect: A robotic arm can be dragged freely to perform some actions. After dragging, the robotic arm will execute the actions just performed. This is equivalent to recording and playing back a trajectory.

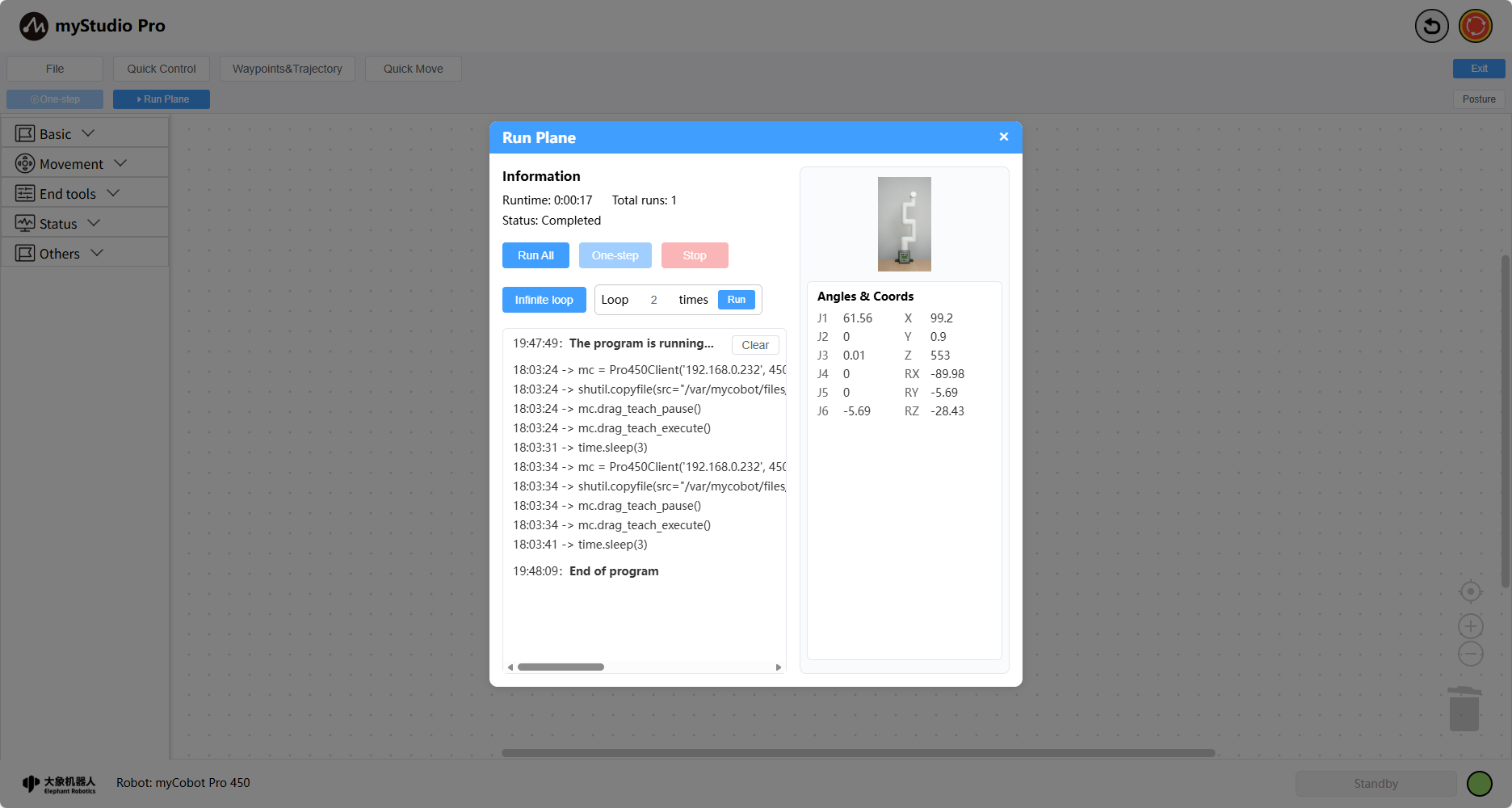

The complete code is as follows:

Code Explanation:

• Record trajectory: After executing this block, the robotic arm's joint brakes release, and the robotic arm can now be dragged.

• Wait 10 seconds (equivalent to recording for 10 seconds)

• Pause recording: The robotic arm's joint brakes lock, and it cannot be dragged manually.

• Wait 10 seconds

• Play trajectory: The robotic arm begins executing the previously recorded trajectory.

• Wait 10 seconds (equivalent to playing back the previously recorded 10-second trajectory)

9 Using the Gripper

This chapter introduces how to use myBlockly to control the F100 force control gripper connected to a robotic arm.

API display

We will use the following blocks:

1: Set F100 Force Control Gripper Angle: Makes the gripper enter a specified state (open or closed) at a specified angle.

Parameter description:

This block has two adjustable parameters:

• Gripper ID parameter: Default 14

• Gripper Angle parameter: Represents the angle to be set, with a value range of 0~100

2: Read F100 Force Control Gripper Angle: Reads the current gripper angle value.

This block has one adjustable parameter:

• Gripper ID parameter: Default 14

Small Case

The graphical code is as follows:

• Code execution results:

• Control the F100 force control gripper to reach a position with a value of 80

• Wait 3 seconds

• Control the F100 force control gripper to reach a position with a value of 20

• Wait 3 seconds

• Read the current angle value of the F100 force control gripper

• Wait 3 seconds

• Control the F100 force control gripper to reach a position with a value of 0

Note:

If you cannot control the gripper from the above examples, please ensure that your F100 force control gripper communication method is modbus protocol control.

After setting, run the small case code again.

10 Waypoints

This chapter introduces how to use the waypoint function to control a robotic arm.

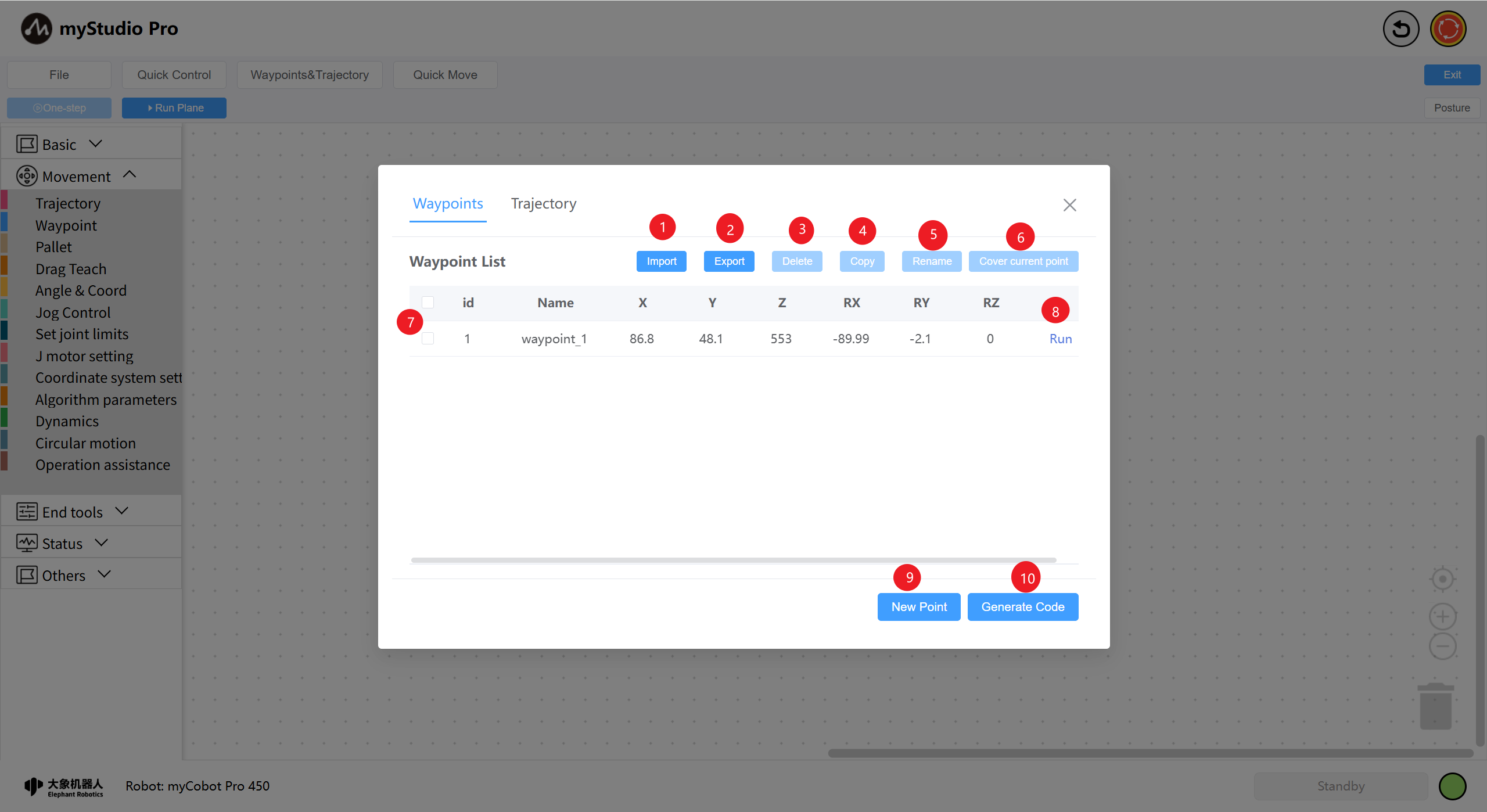

Function Description: By inputting multiple waypoint data (robotic arm joints and coordinates), you can quickly control the robotic arm to reach the position of each waypoint. Open the waypoint list page, long press the end effector button, release the robotic arm, manually adjust the robotic arm's posture, and click New Point to add a waypoint data entry.

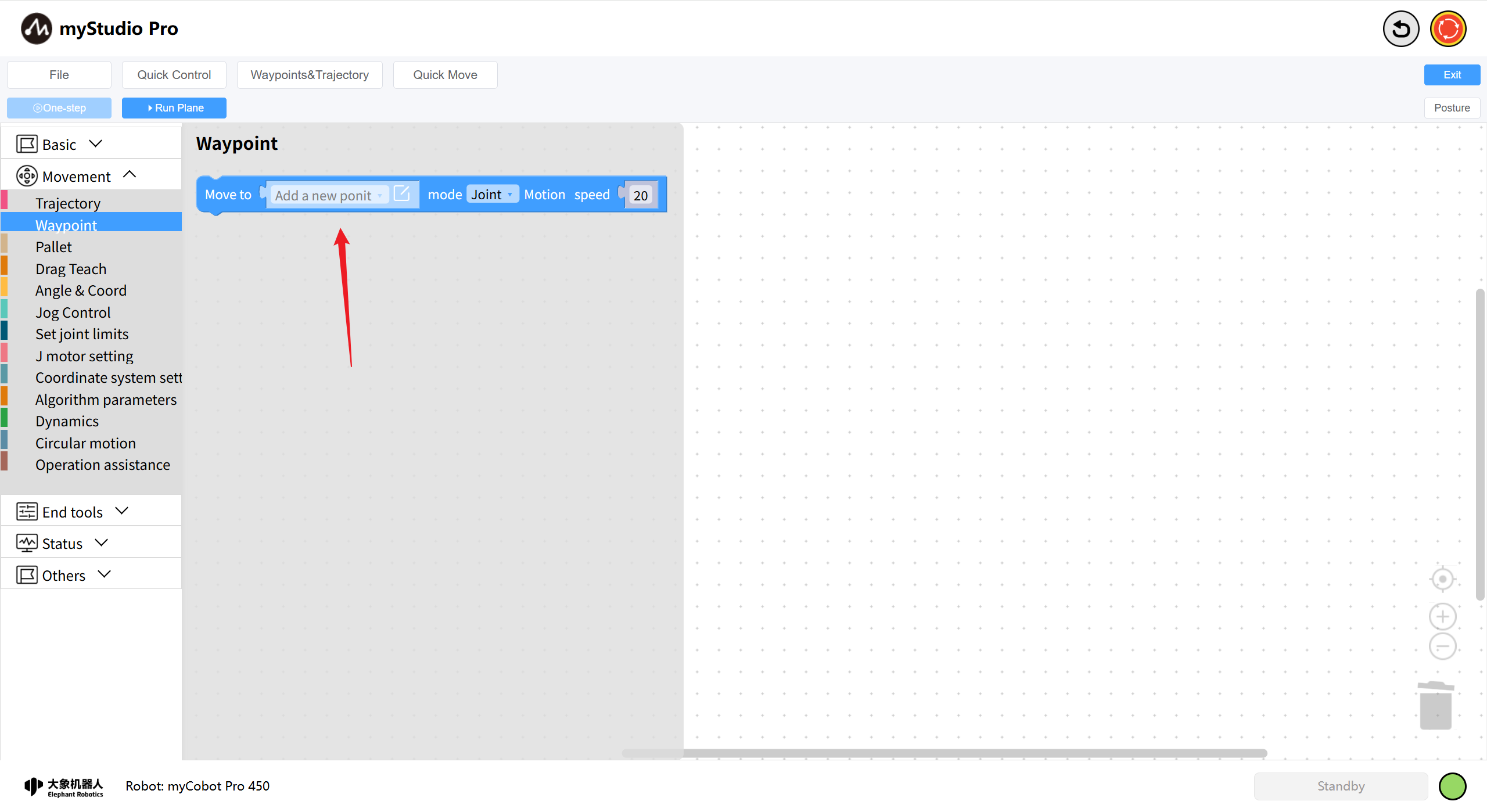

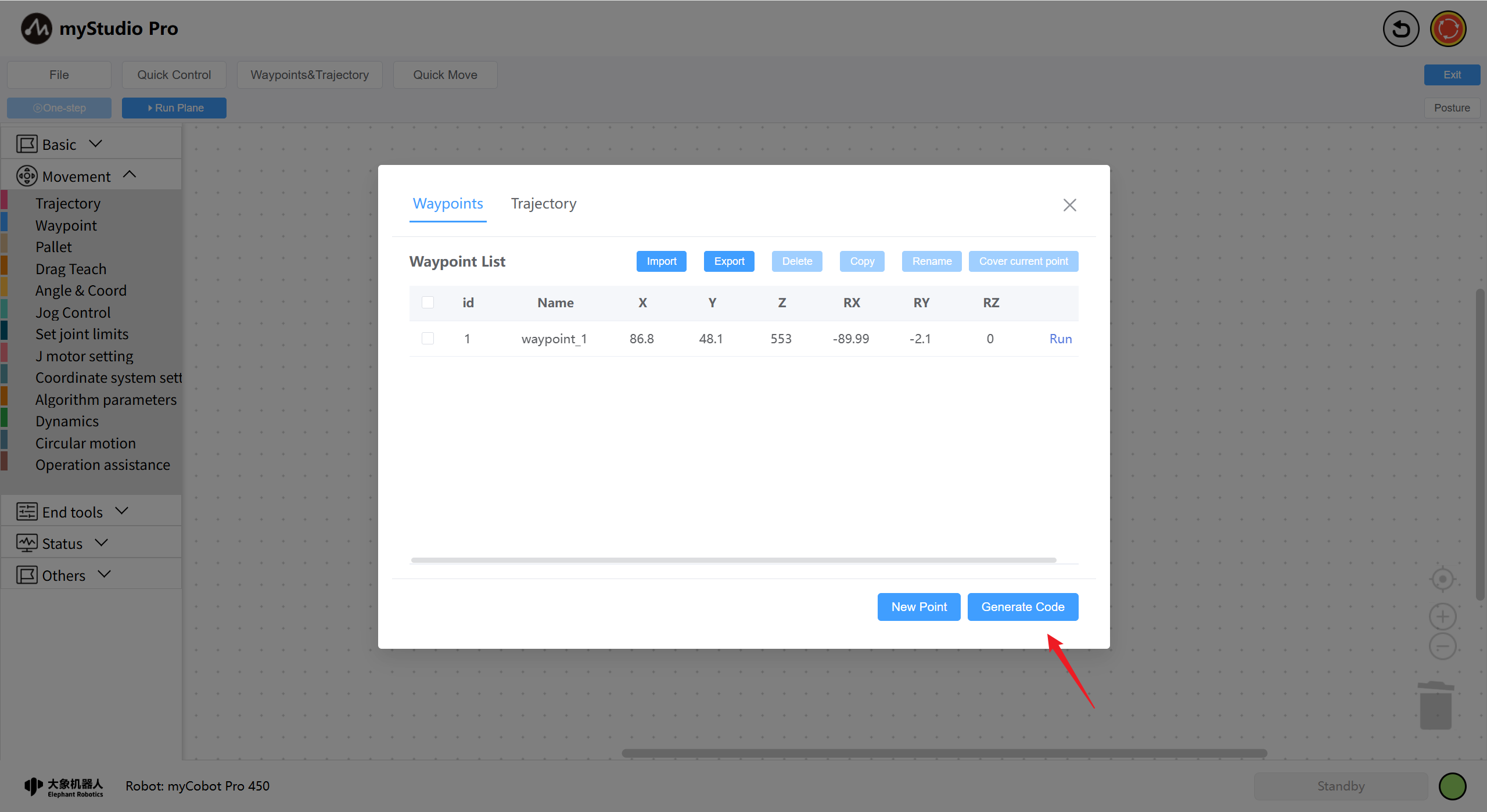

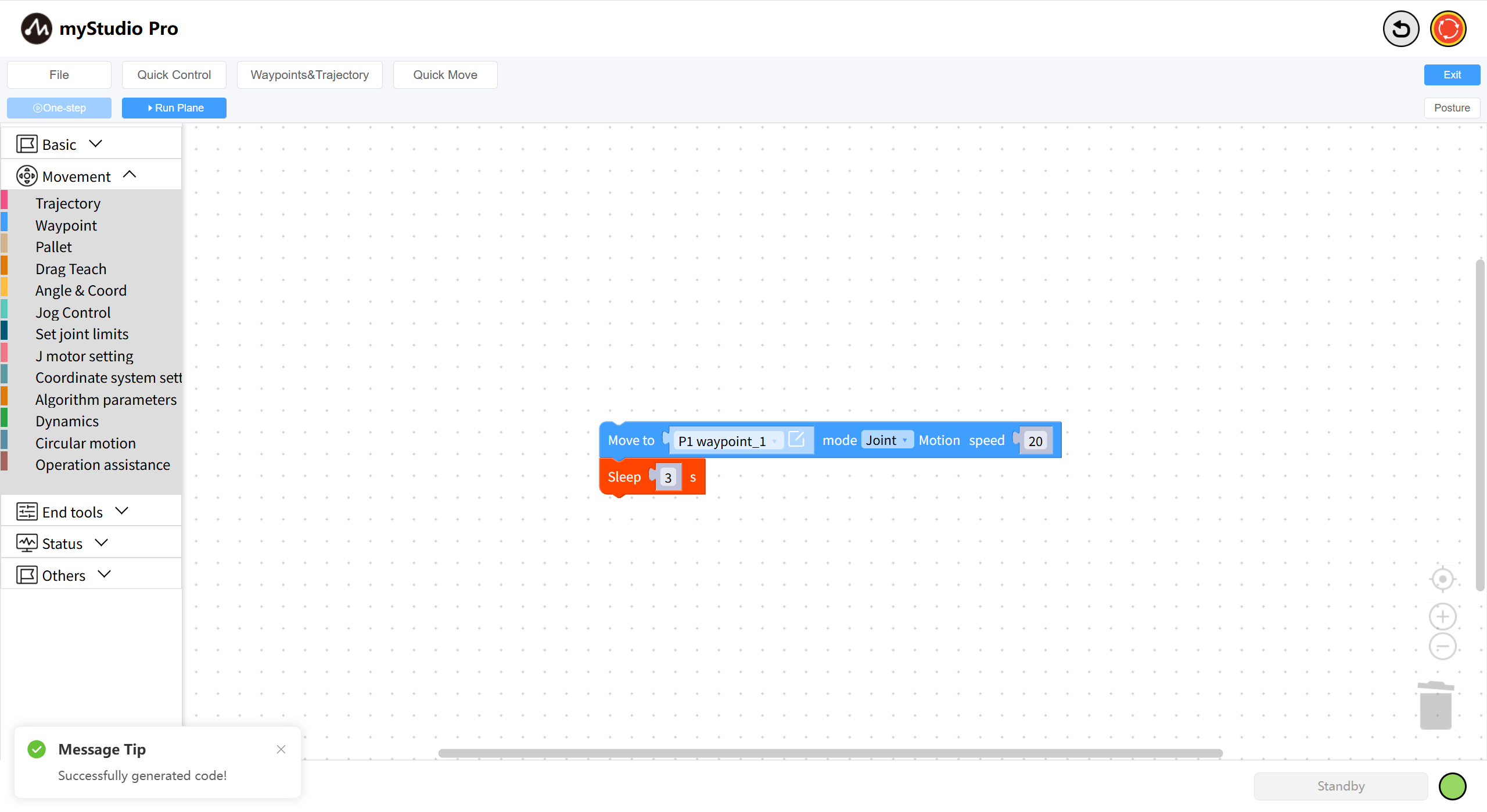

Select a waypoint block in myBlockly and add it to the program coding area. Alternatively, use the Generate Code button in the waypoint list to add the generated waypoint block to the last block in the workspace.

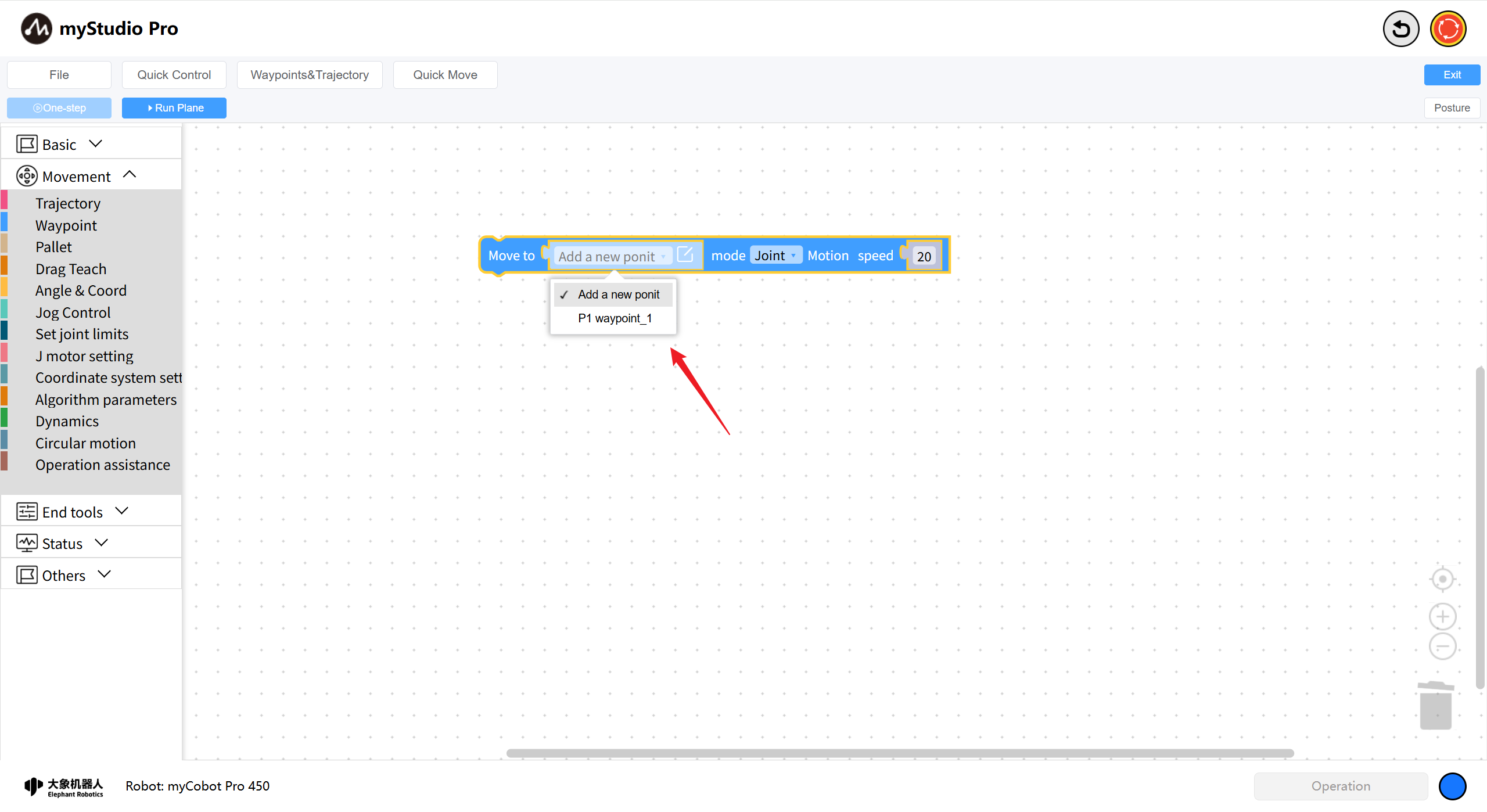

The waypoint block associates data from the waypoint list. Select any waypoint in the list to associate.

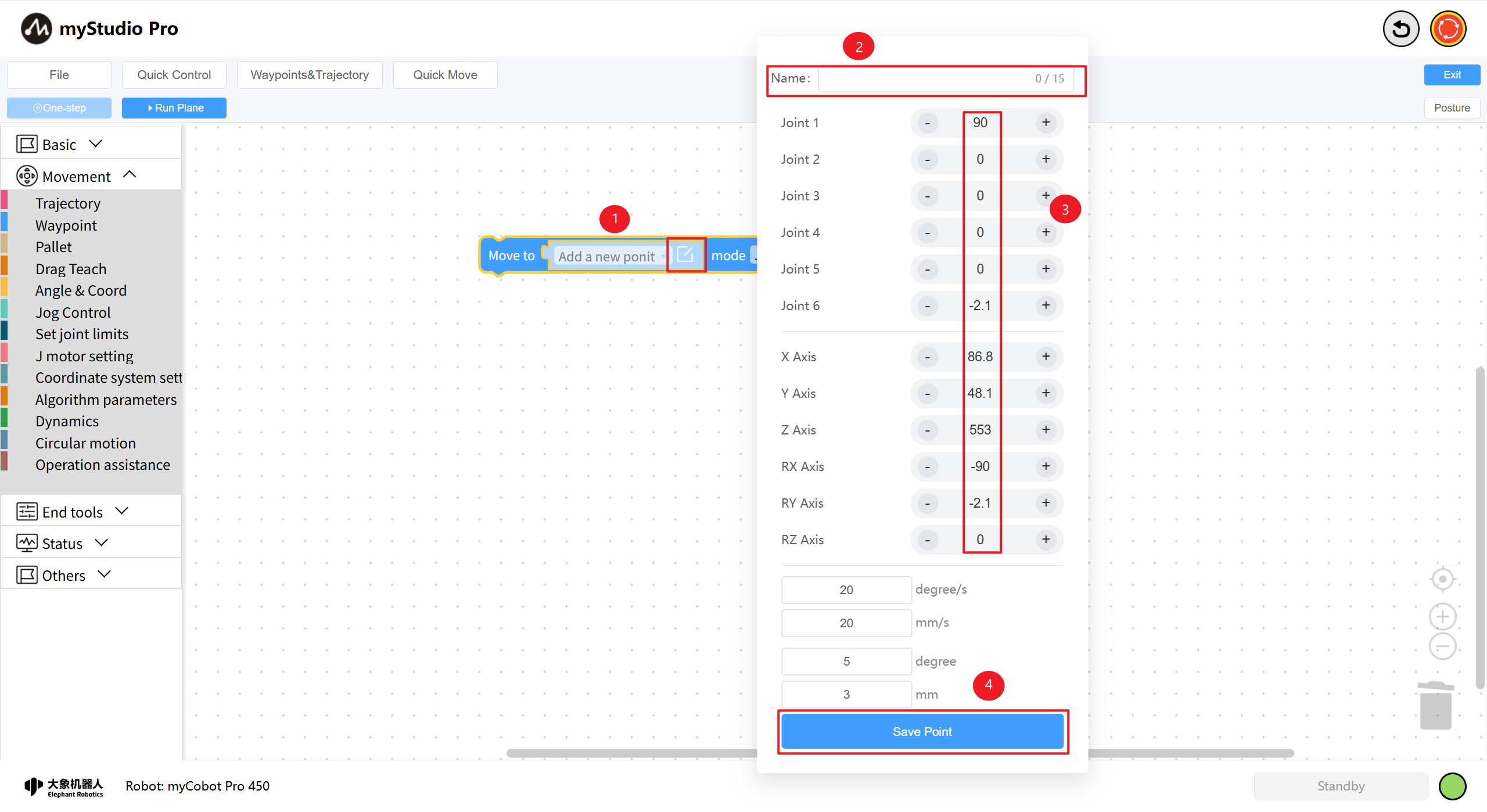

Adds point information to the waypoint block. Select "Add Waypoint," click the "Edit" icon to open the "Add Waypoint" pop-up. The default waypoint name will be displayed. Adjust the waypoint information using the "+" or "-" buttons, and then click the "Save Waypoint" button to add the waypoint data.

Furthermore, the waypoint blocks can have their motion modes modified: Joint Motion Mode: moves based on the joint information of the current waypoint; Linear Motion Mode: moves based on the coordinate information of the current waypoint.

11 Trajectory

Introduces how to use the track function to control the robotic arm and achieve drag-and-drop teaching.

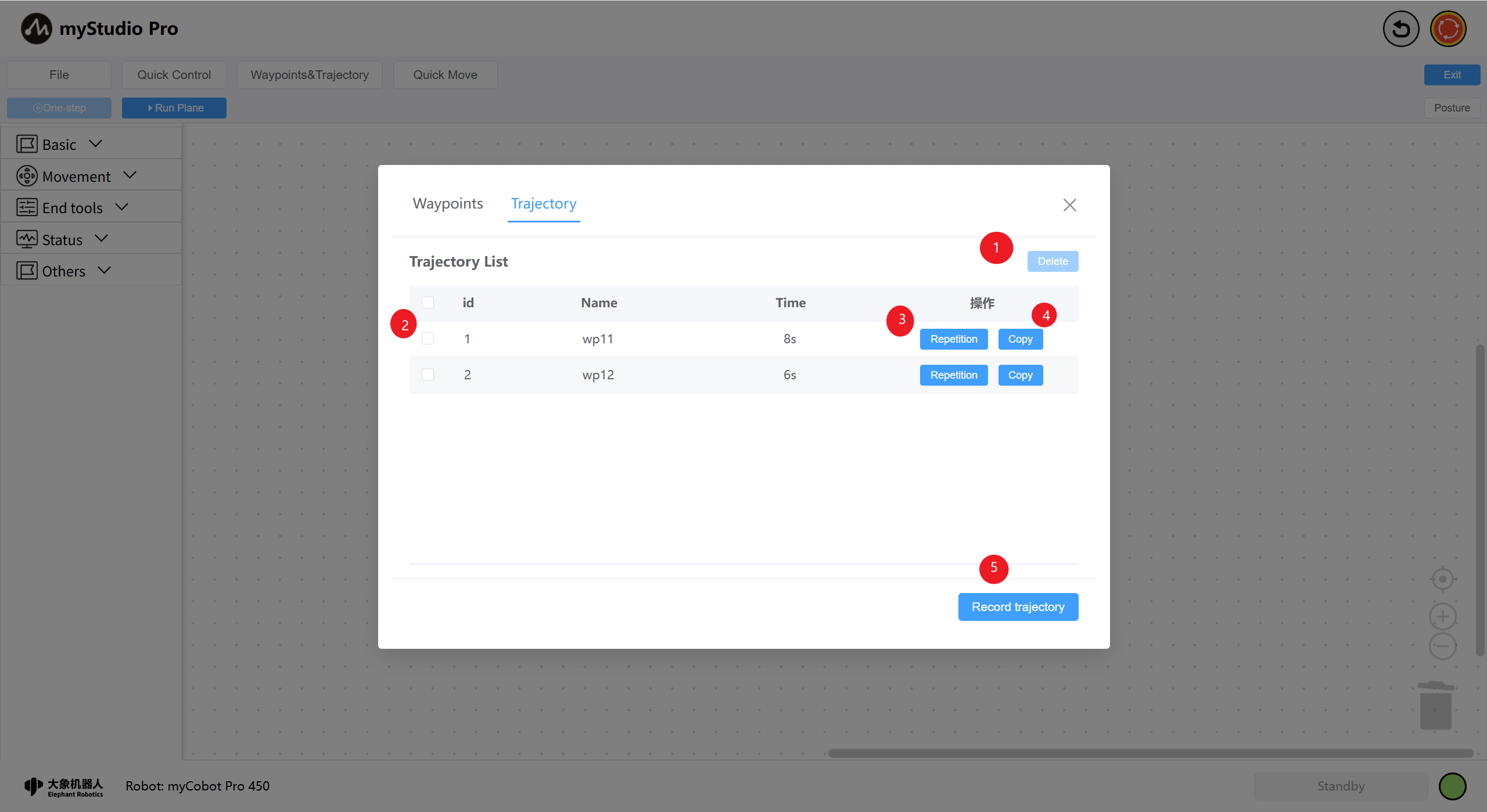

Function Description: By recording multiple track data (robotic arm joints), quickly control the robotic arm to reach each track point position. Open the track list page, click the "Record trajectory" button, the joints of the robotic arm will relax, manually drag the robotic arm to record the track, click "Stop Recording" and wait for the track to be saved. Once saved, the track recording is complete. Successfully recorded tracks will automatically generate a track type file in the "draft" (For file function related operations, please click here).

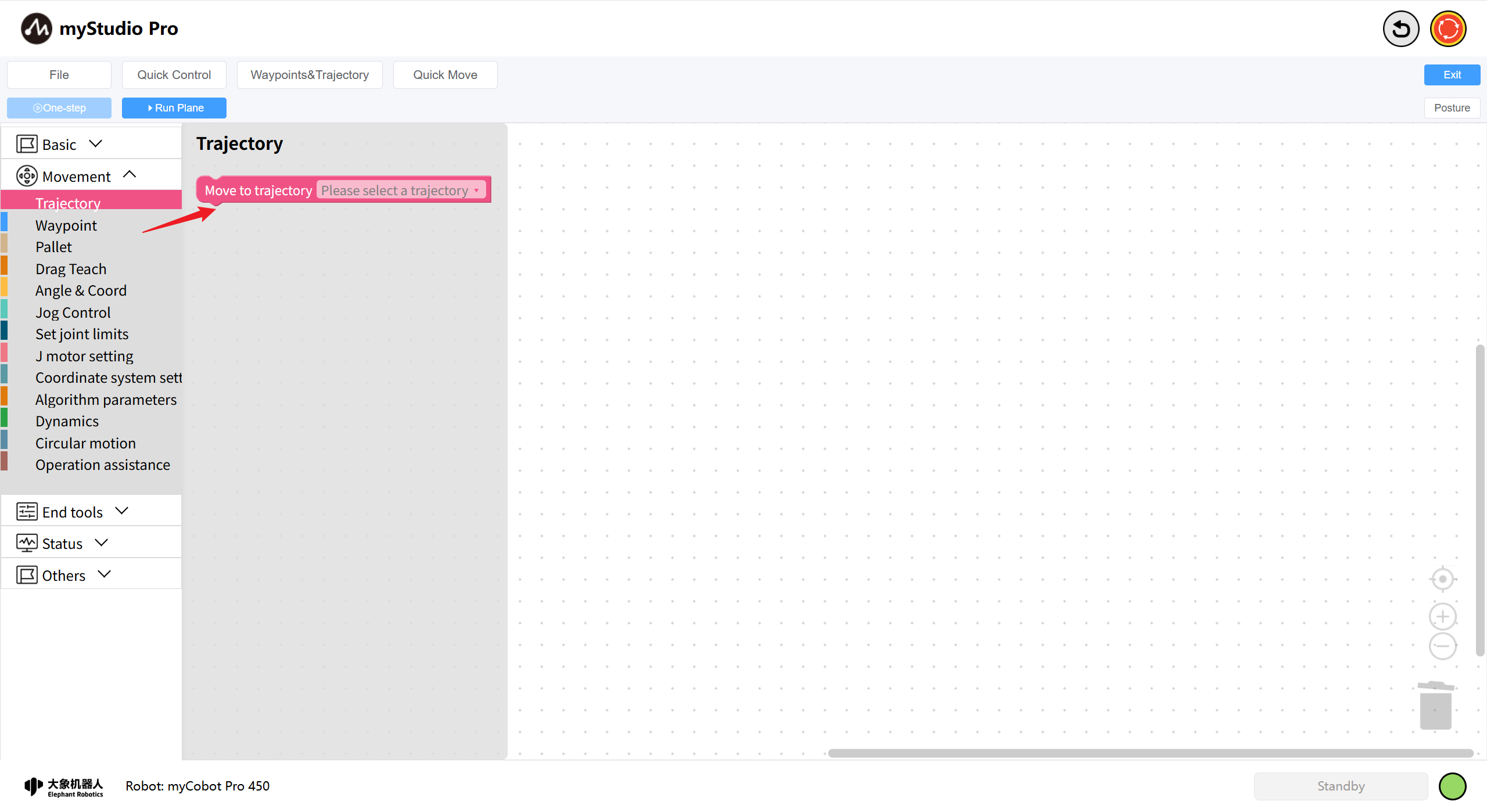

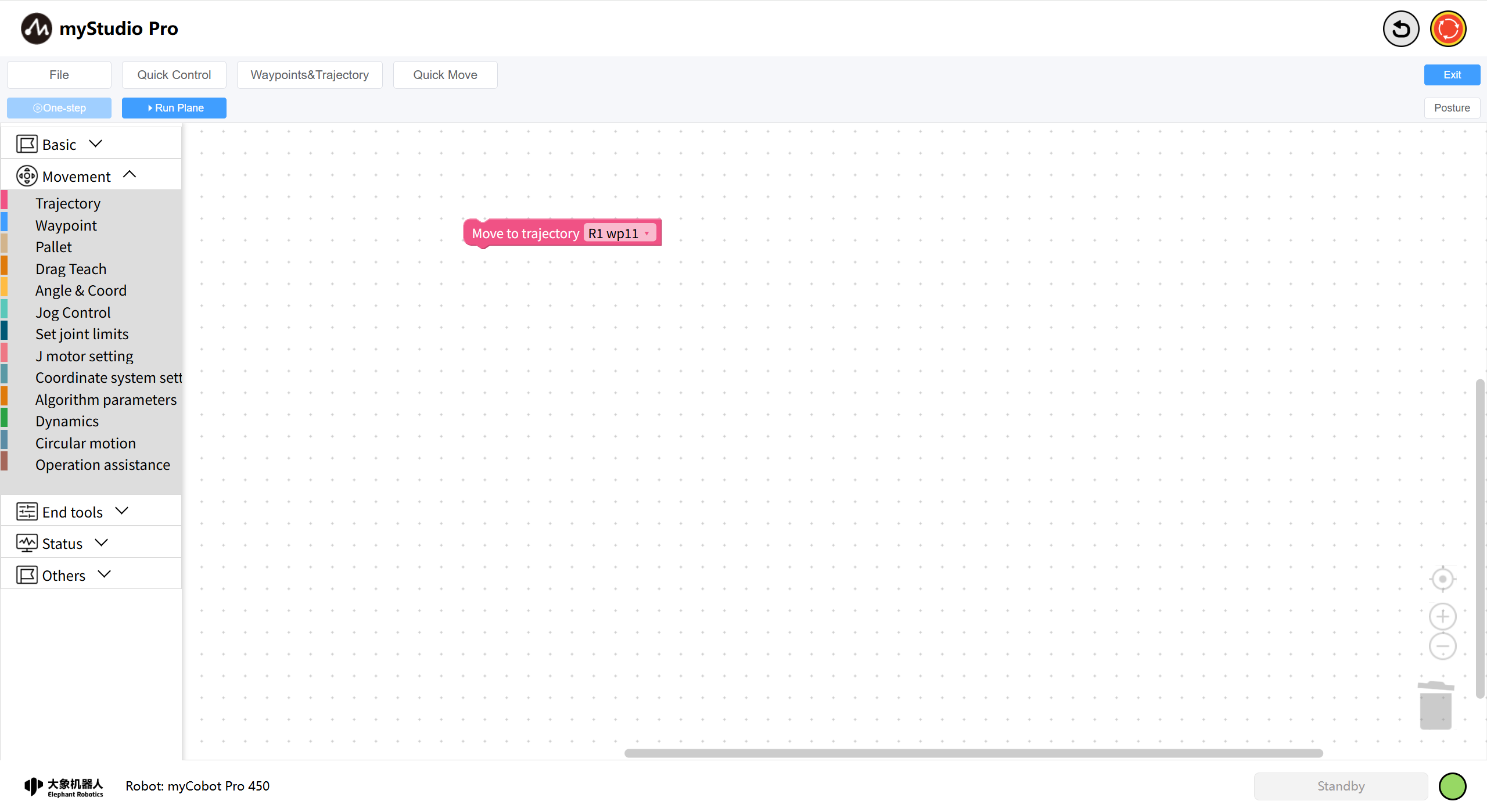

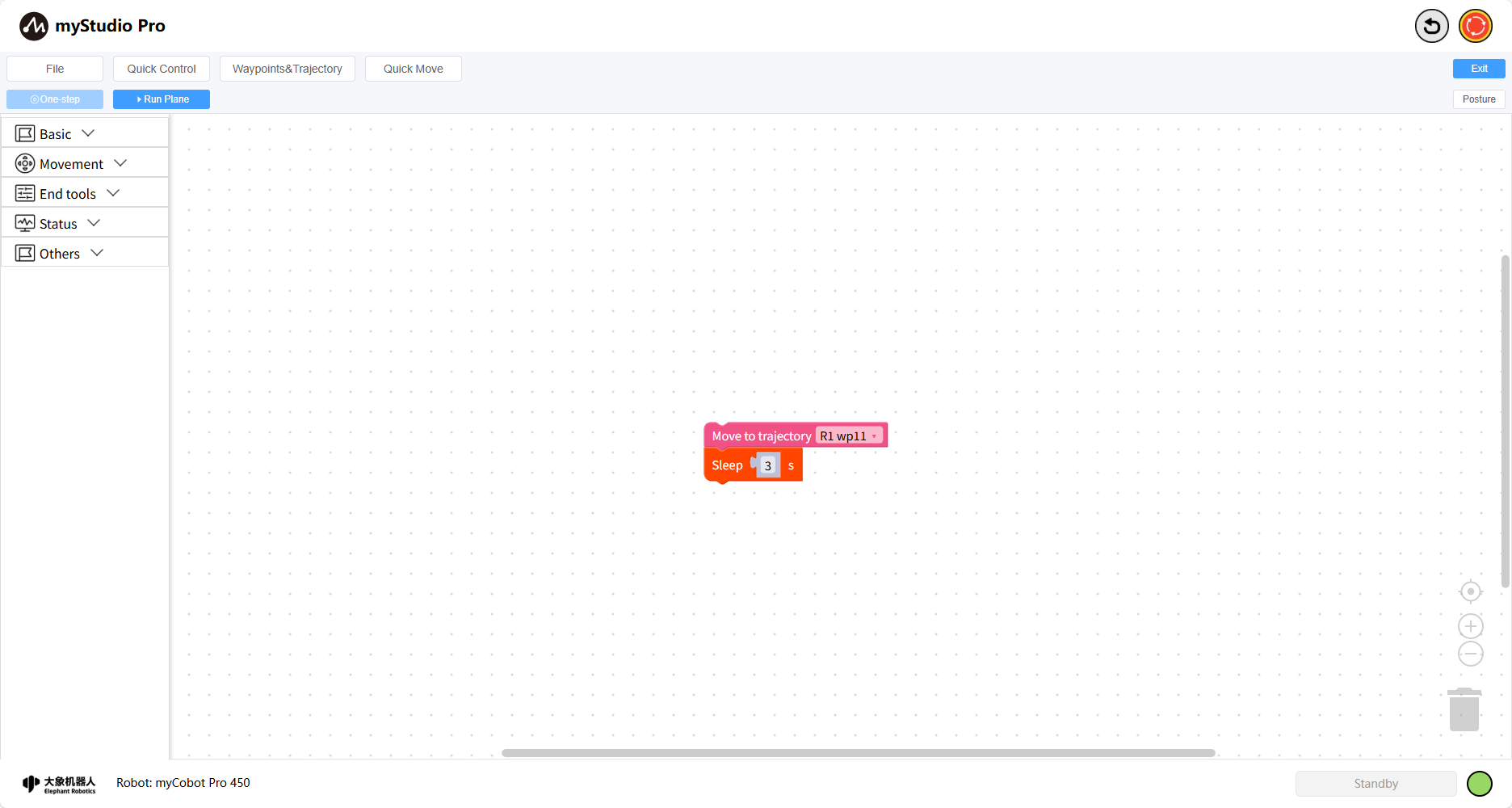

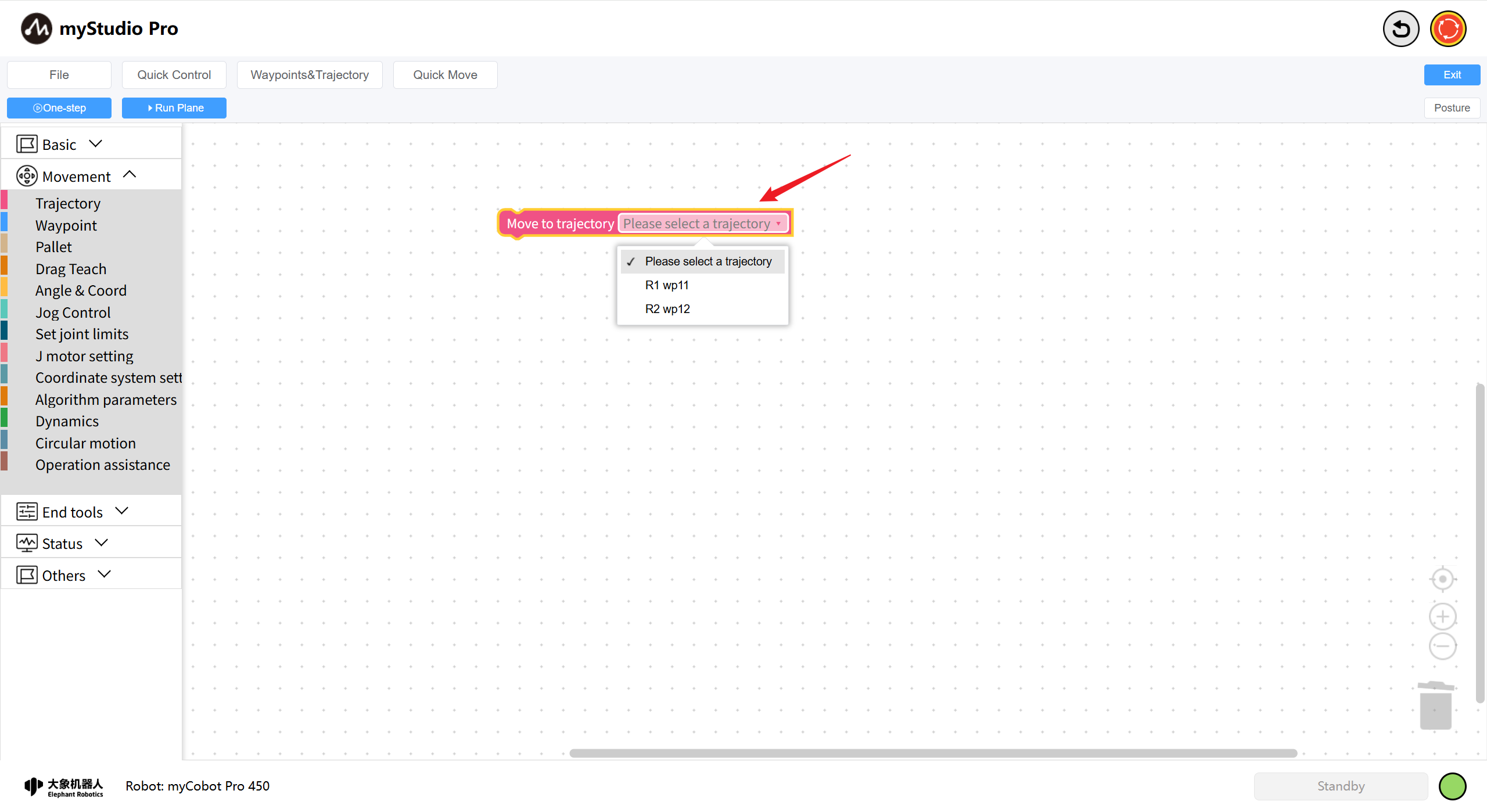

Then, select the trajectory block in myBlockly and add it to the program programming area. Clicking the drop-down menu of a trajectory block in the workspace allows you to select data from the current trajectory list page.

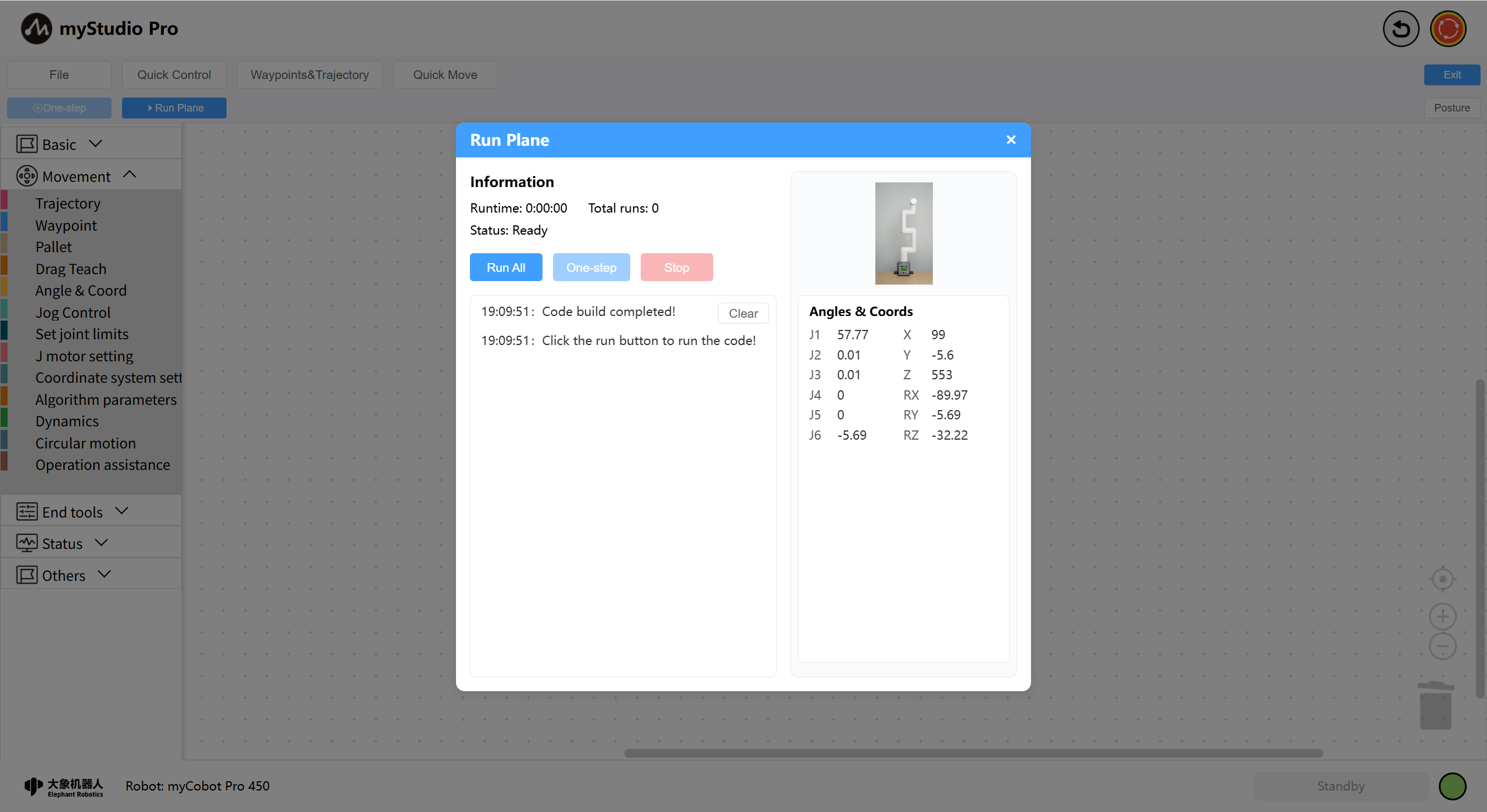

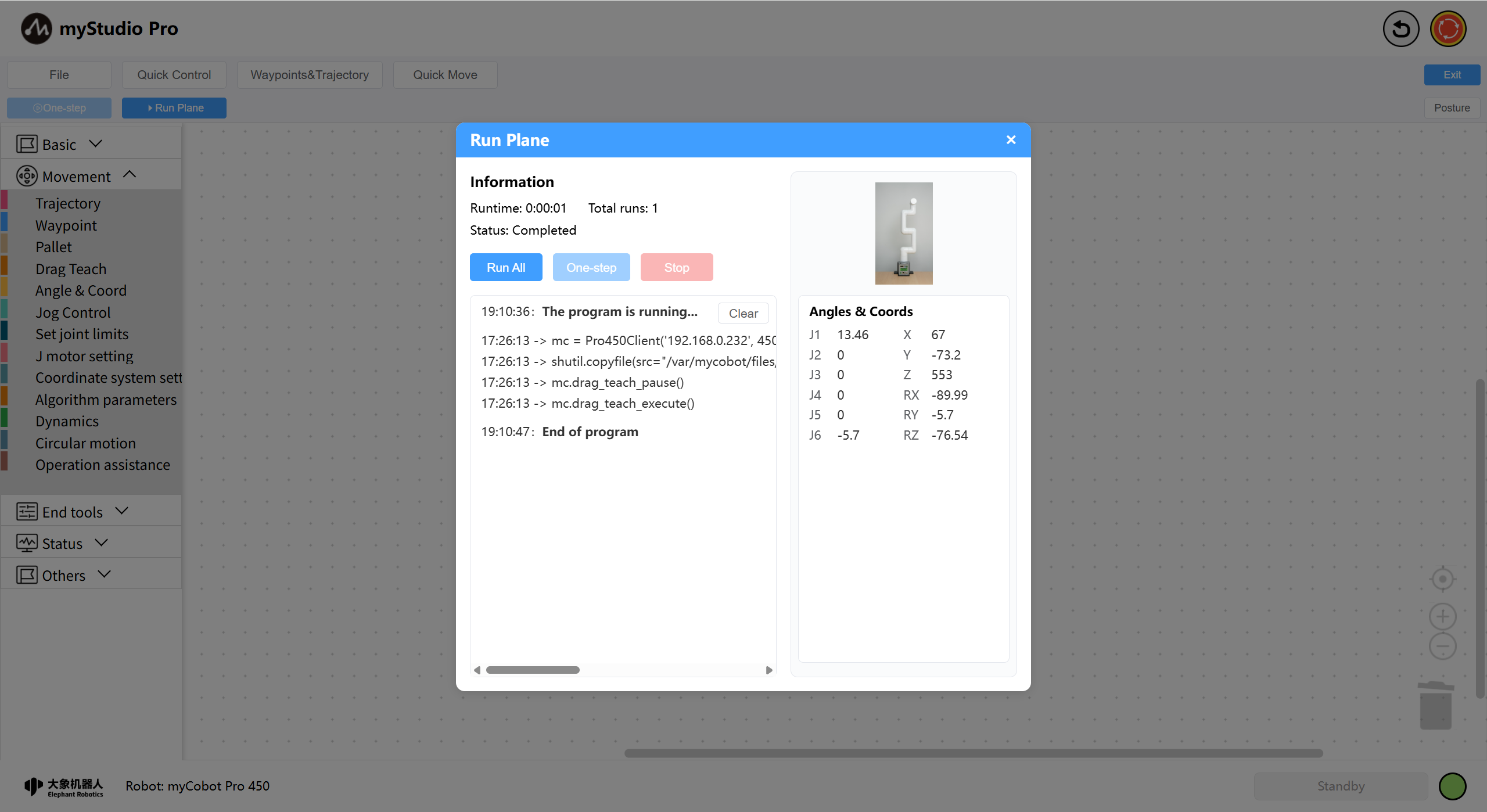

After selection, open the Run Plane and click Run All to reproduce the trajectory using the block-by-block method.

After the program runs, the trajectory is reproduced. Of course, you can also use other blocks for more complex programming.

12 File Management

Introduces how to use the file management module.

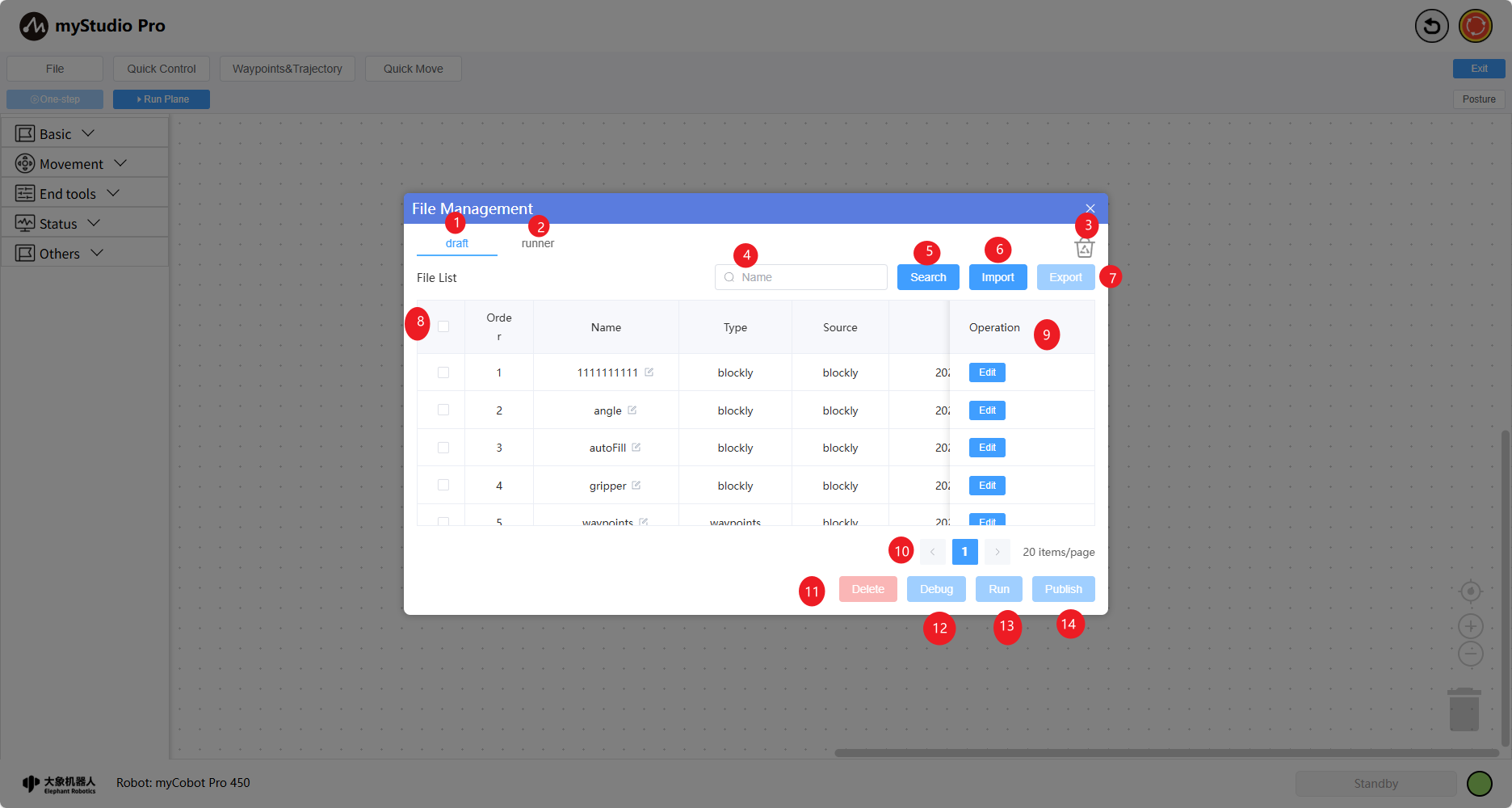

Function Description: The file management module allows for easy saving, importing, and exporting of files from different file spaces. There are two ways to open the file list: Open File from the Homepage - or Open from the file operation menu on the myBlockly page. This will open the file management list and load your saved file content, including workspaces, waypoints, and track files (for information on how to save workspaces, click here).

11 | Batch operation button: Delete - deletes selected files to the recycle bin.| |12 | Single file operation button: Selecting a file and clicking this button loads the file's content into the workspace and automatically opens the debug panel.| | 13 | Single file operation button: Selecting a file and clicking this button loads the file's content into the workspace and automatically opens the debug panel. The panel allows you to set the number of times the file will run – infinite loop or multiple loops.| | 14 | Single file operation button: Selecting a file and clicking this button publishes the file to the production space.|

Search

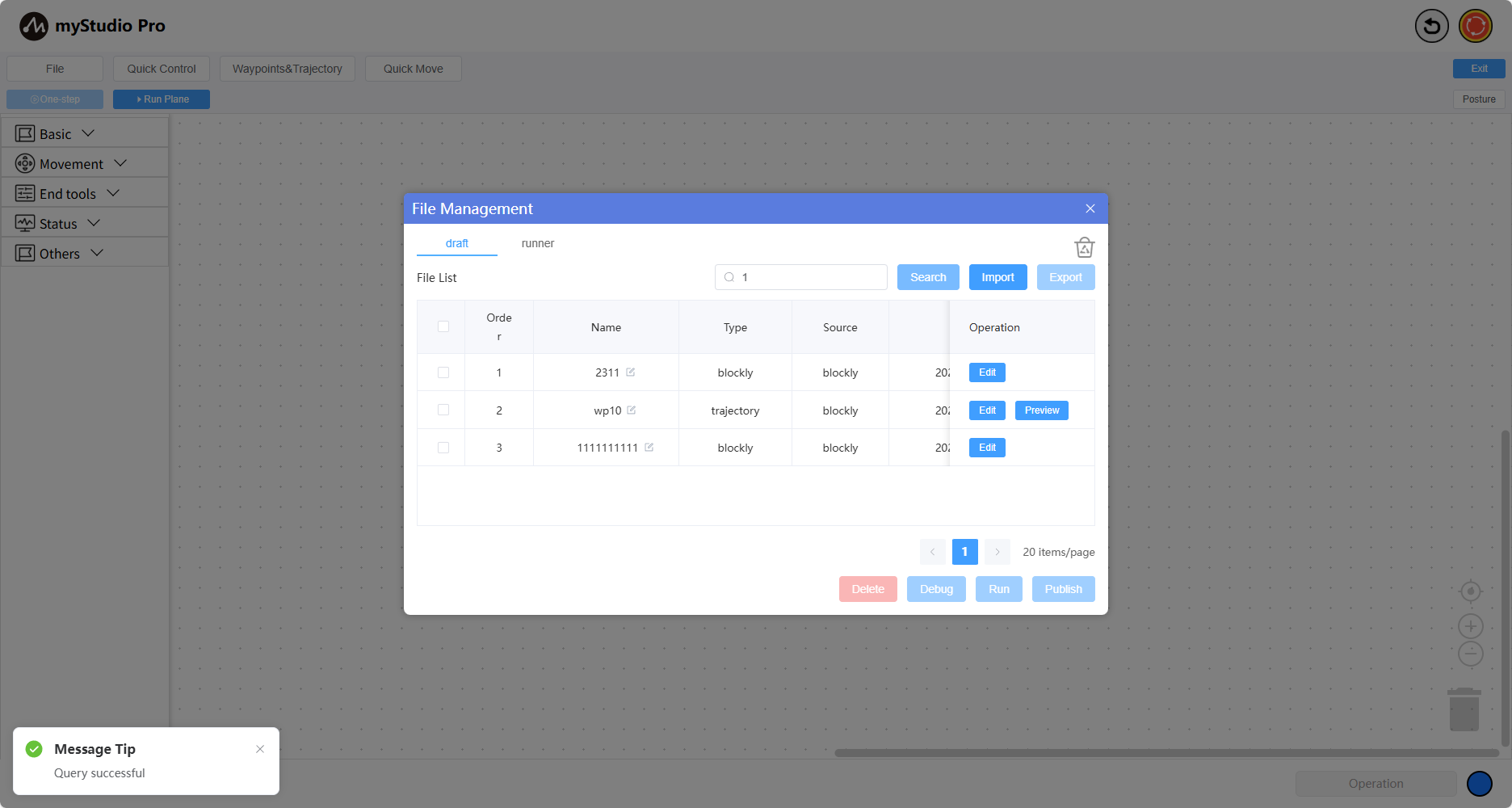

By default, queries all files. You can enter a filename for a fuzzy search. When the input box contains content, the search will be based on the current file space and the content. A successful search will display a message.

Import

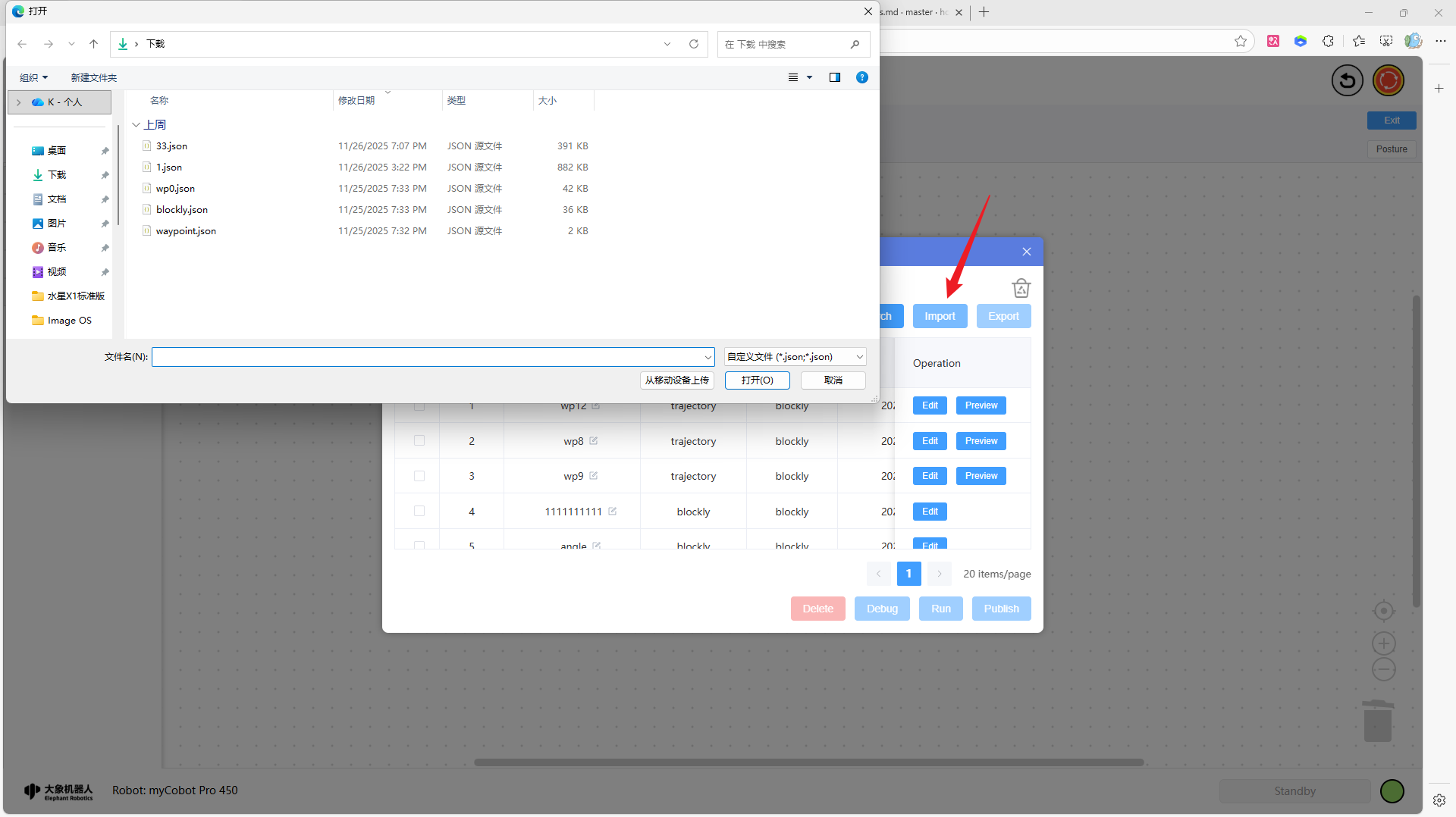

Click the Import button, select the file to import, and click OK.

Note: The file selected for import must be exported from myStudio Pro; otherwise, you will encounter an import failure or import success but "cannot be edited" error.

Click the Import button, select the file to import, and click OK.

Edit

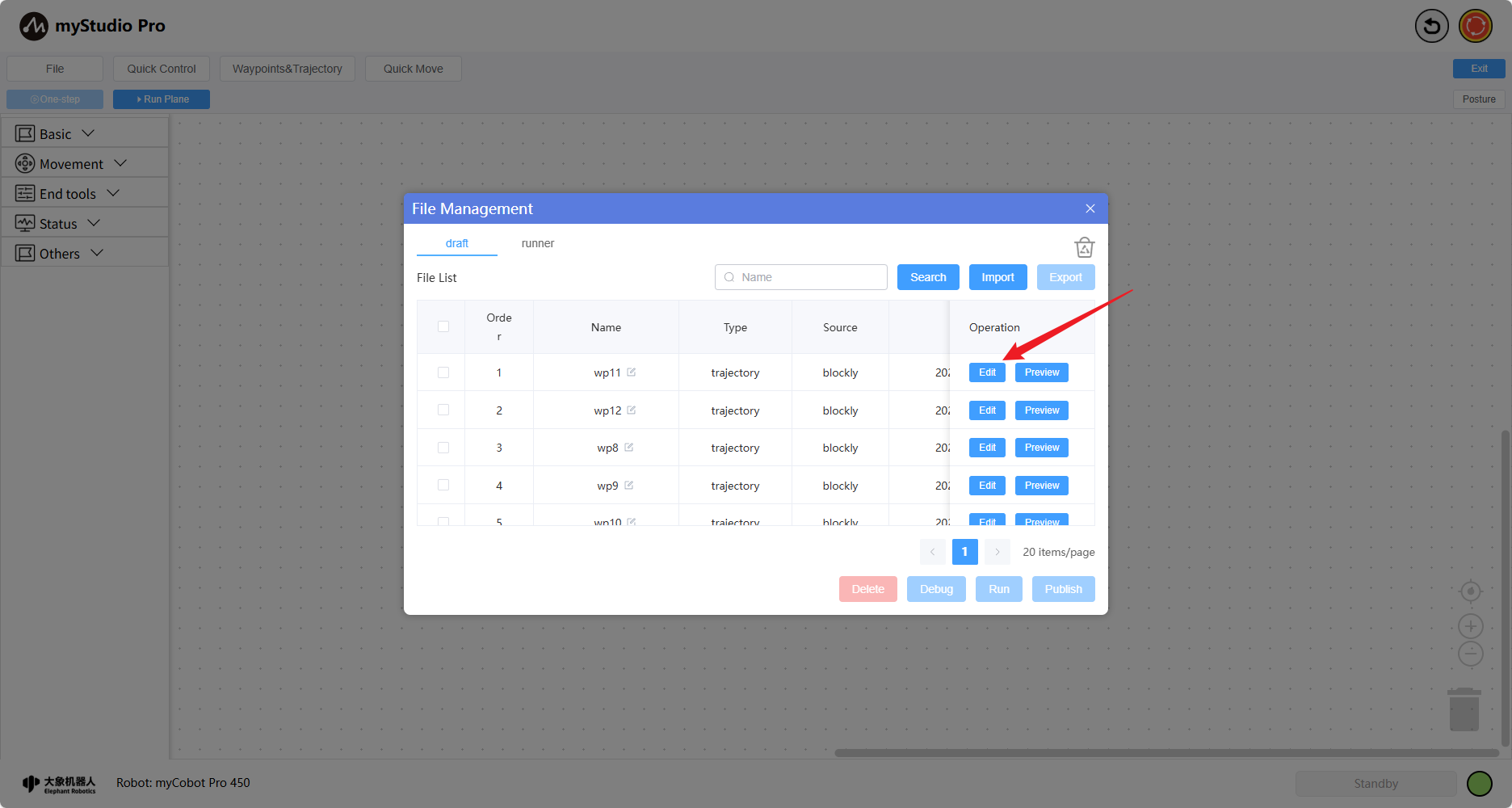

Click the Edit button to load the file content into the workspace.

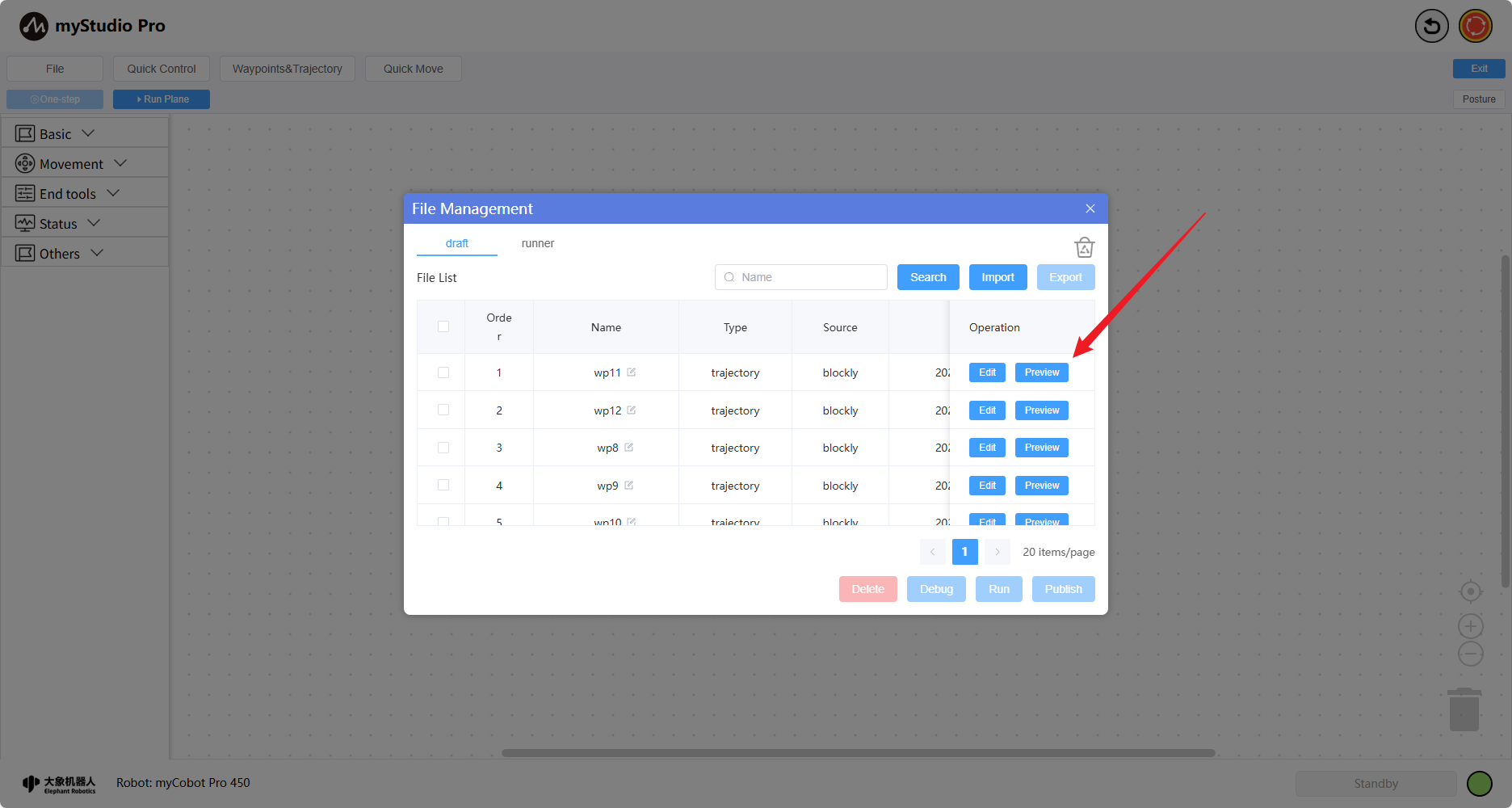

Preview

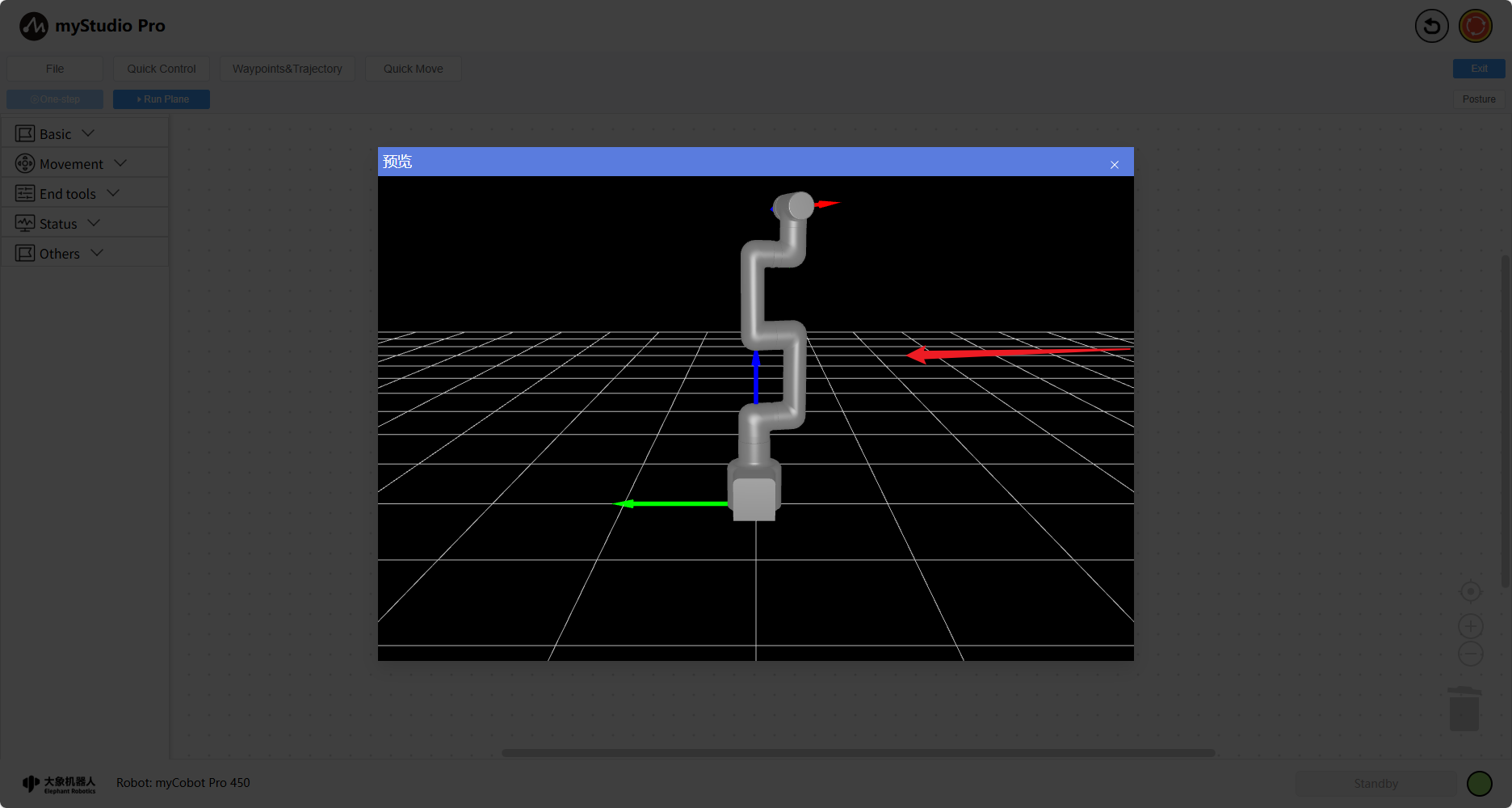

ClickThe Preview button will open the preview panel. The 3D model will simulate motion based on the actual points in the trajectory file.

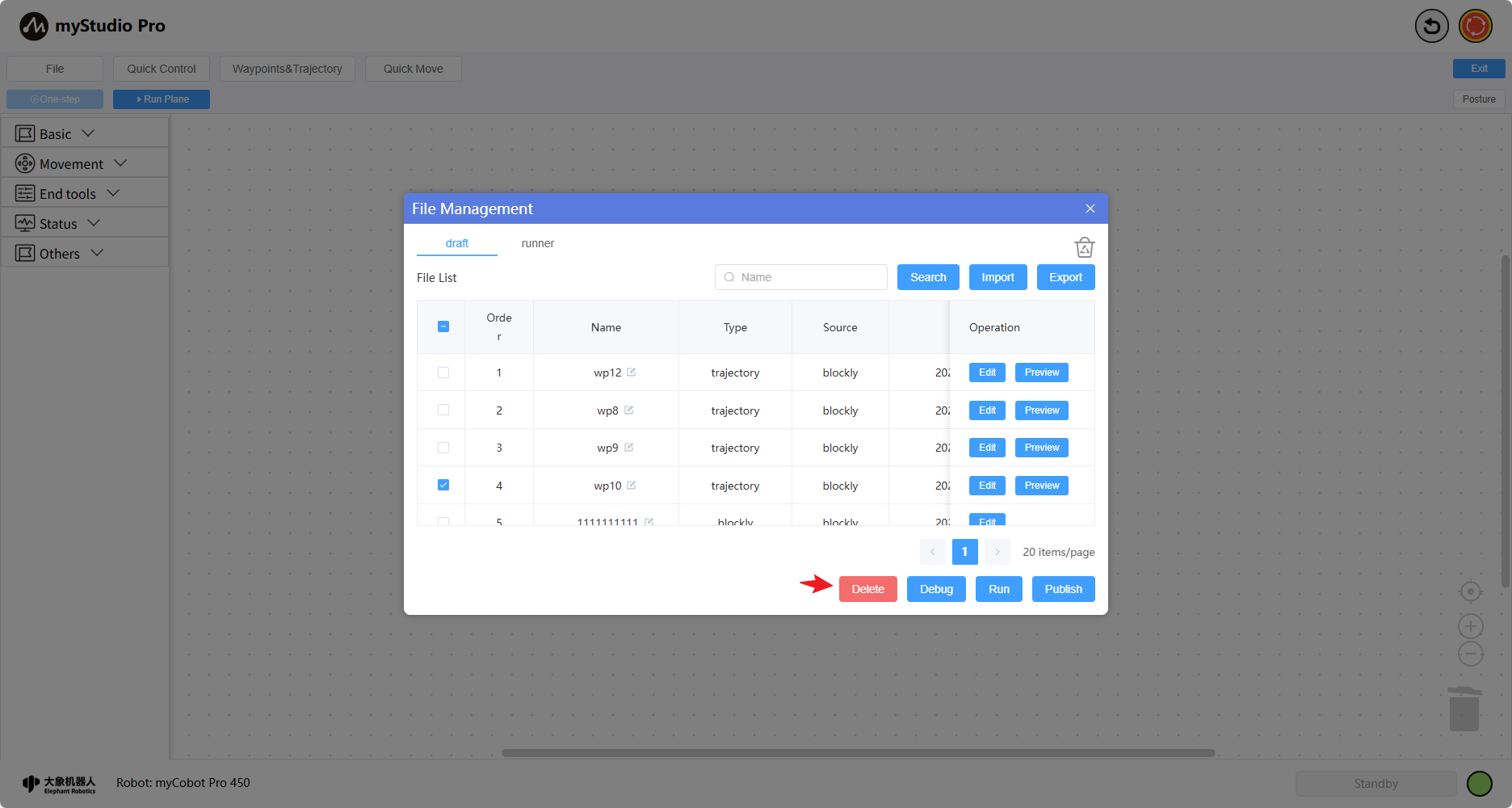

Delete

Click the Delete button to delete files in batches, moving the selected files to the Recycle Bin.

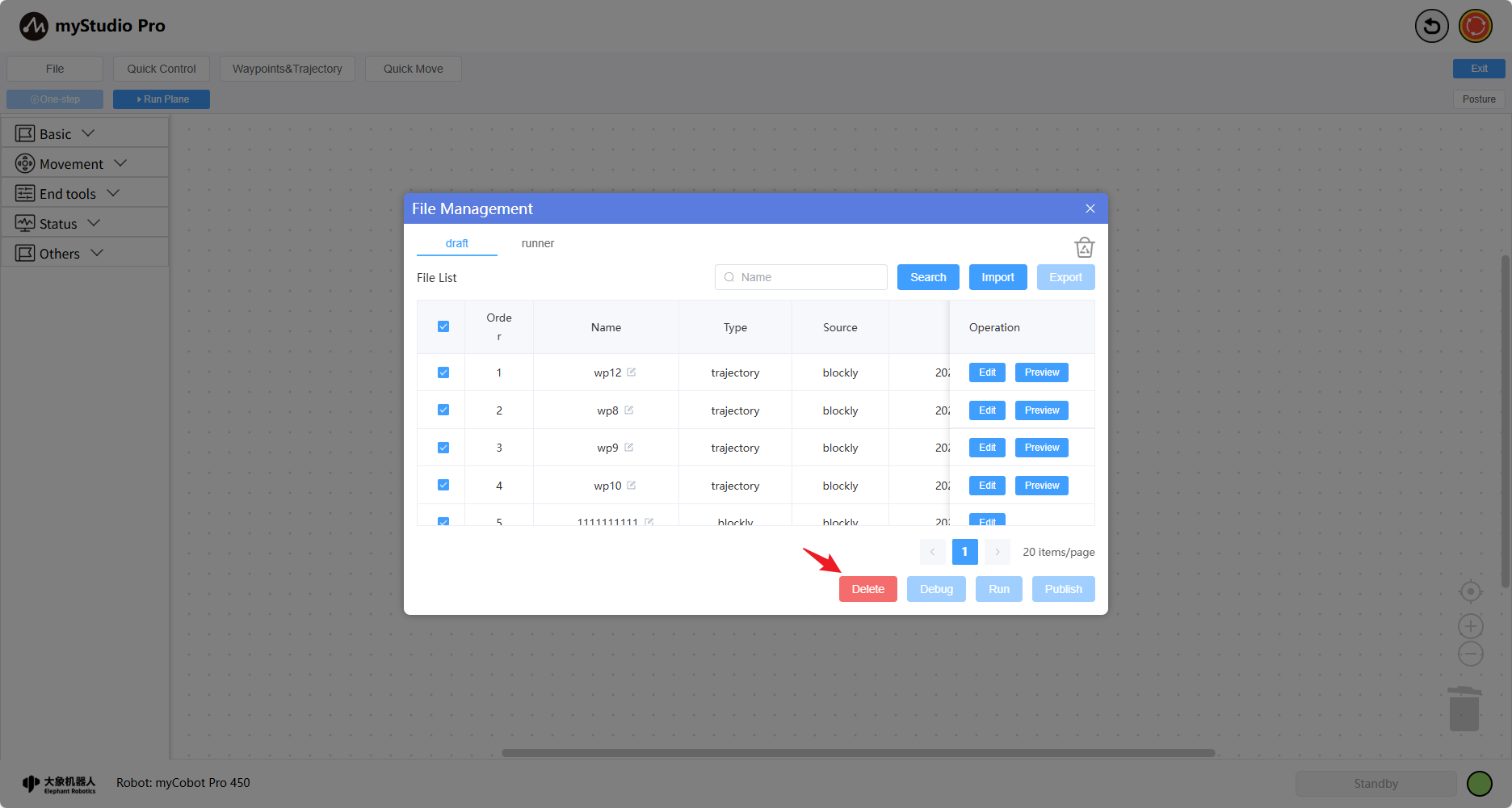

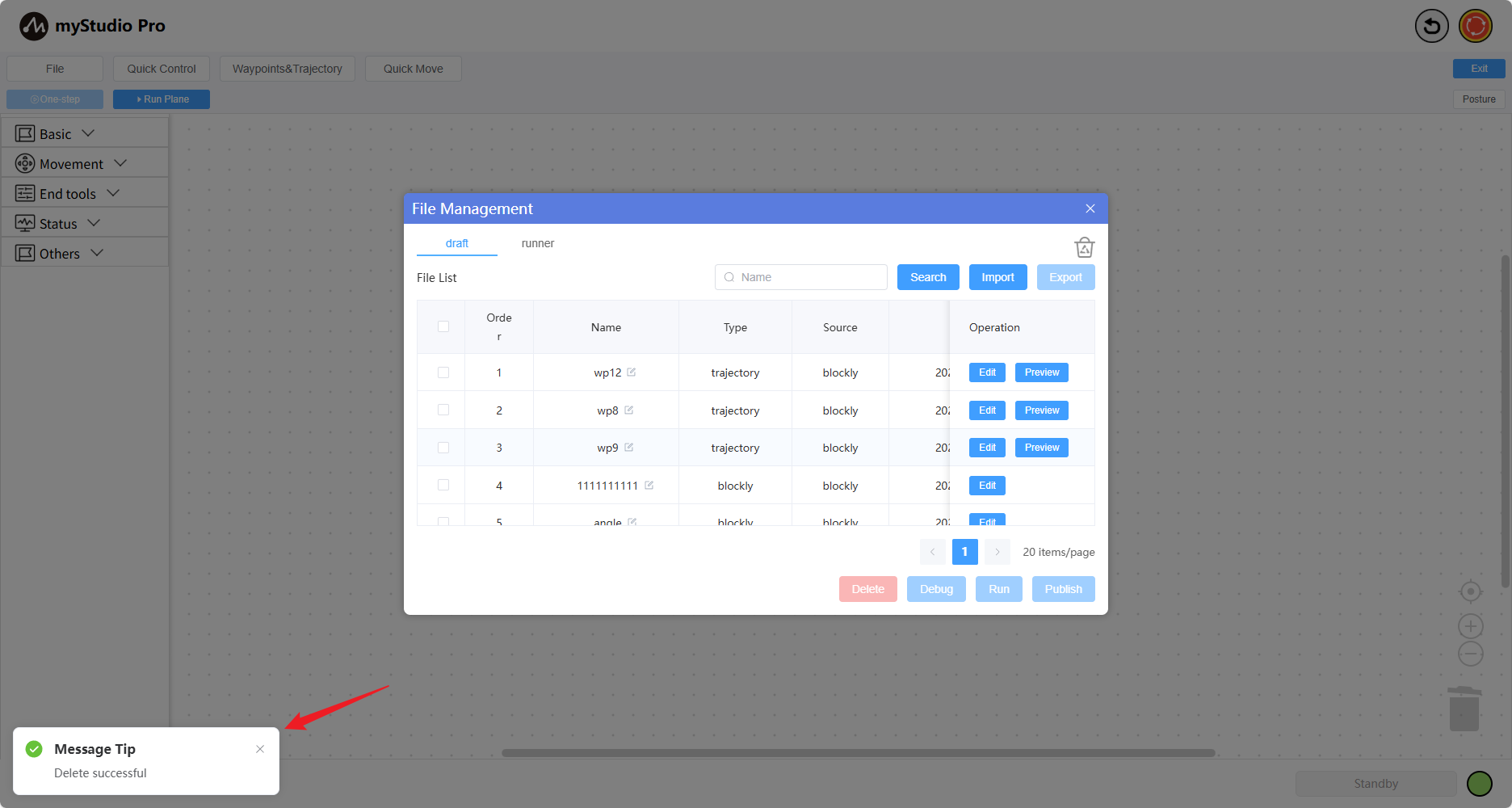

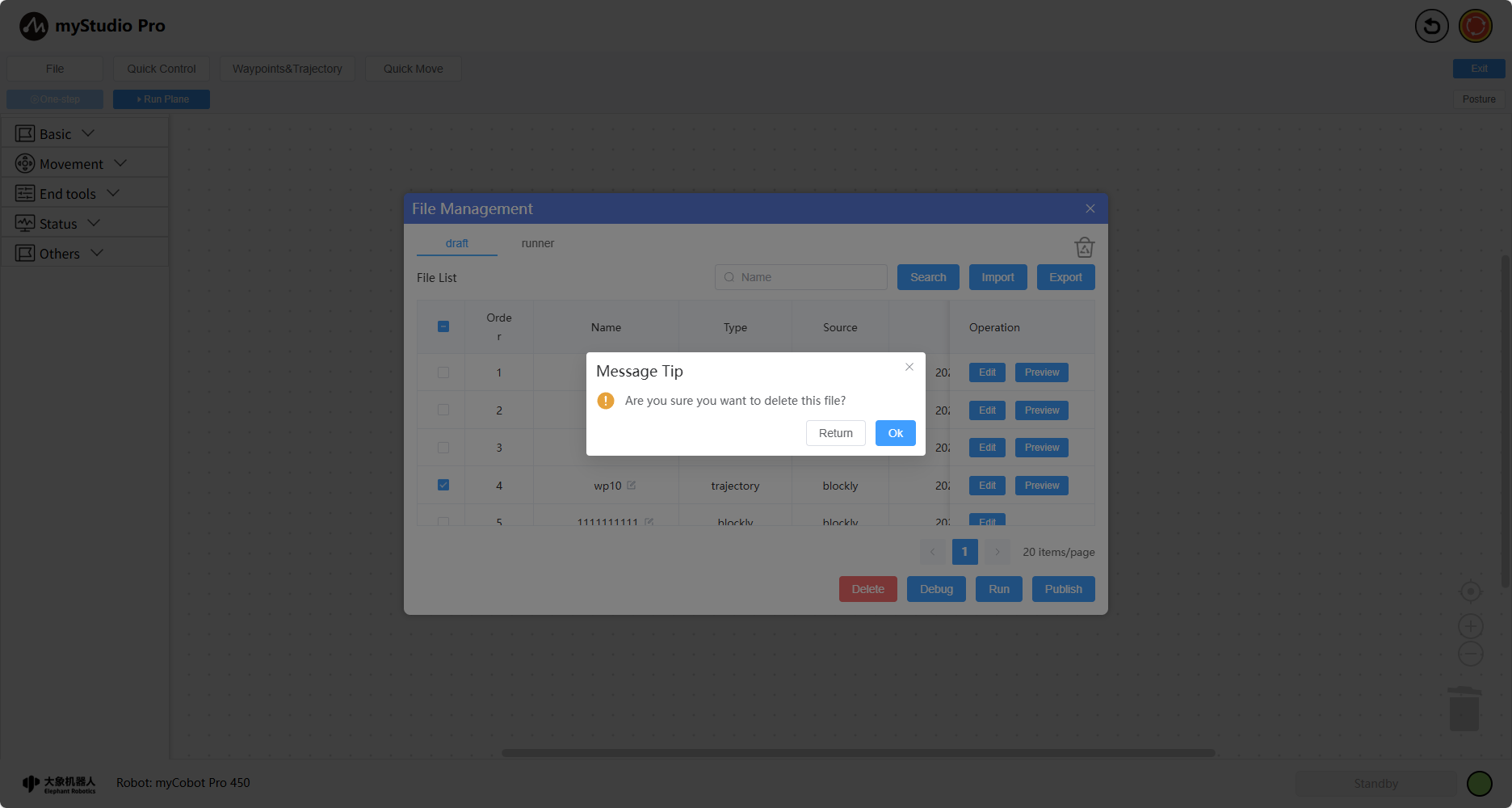

Select the files you want to delete, then click the Delete button. Switch to the Recycle Bin option to view the deleted files in the list.

Recover

Click the Recover button to restore the file from the recycle bin to the test space.

Debug

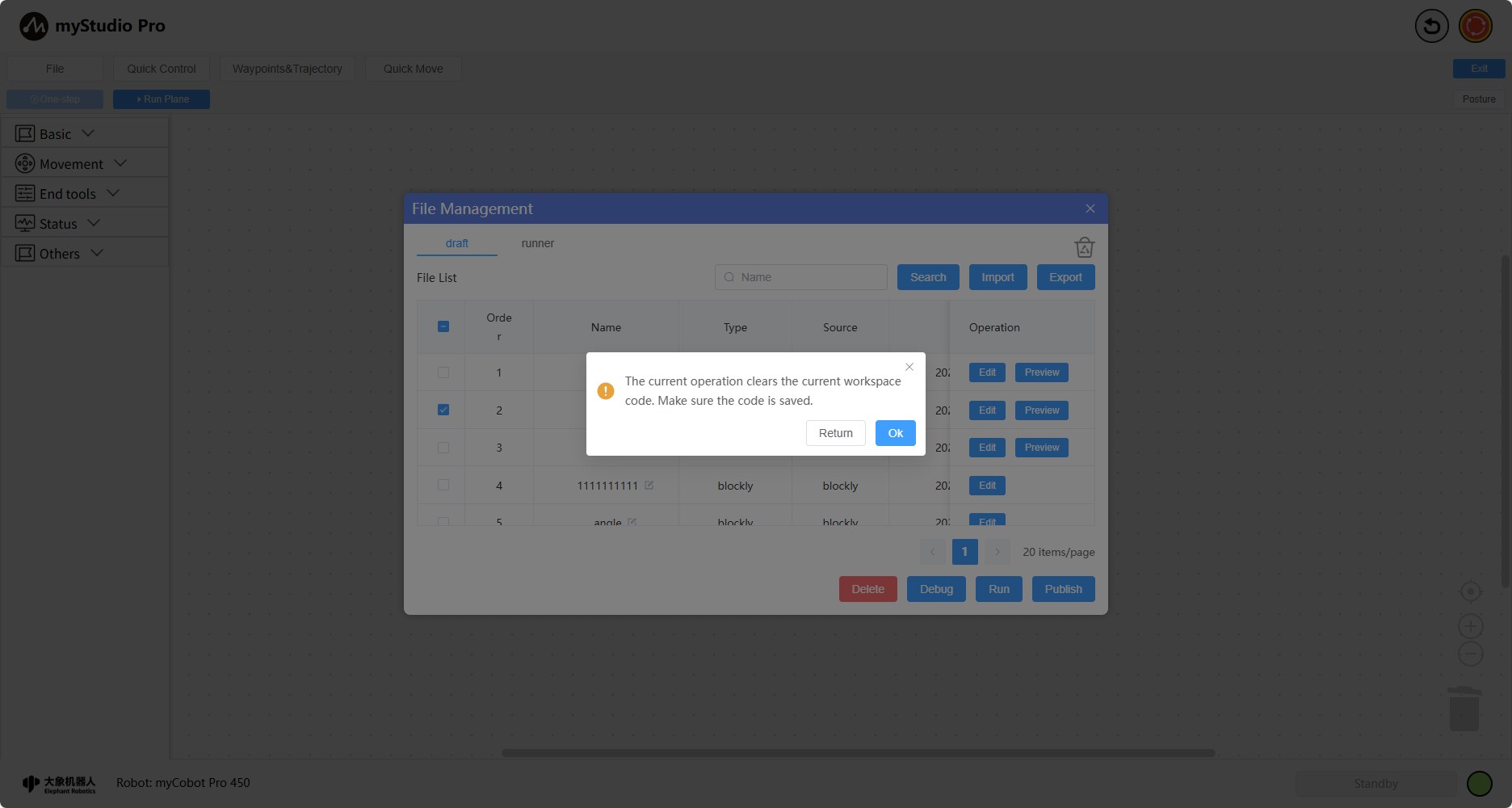

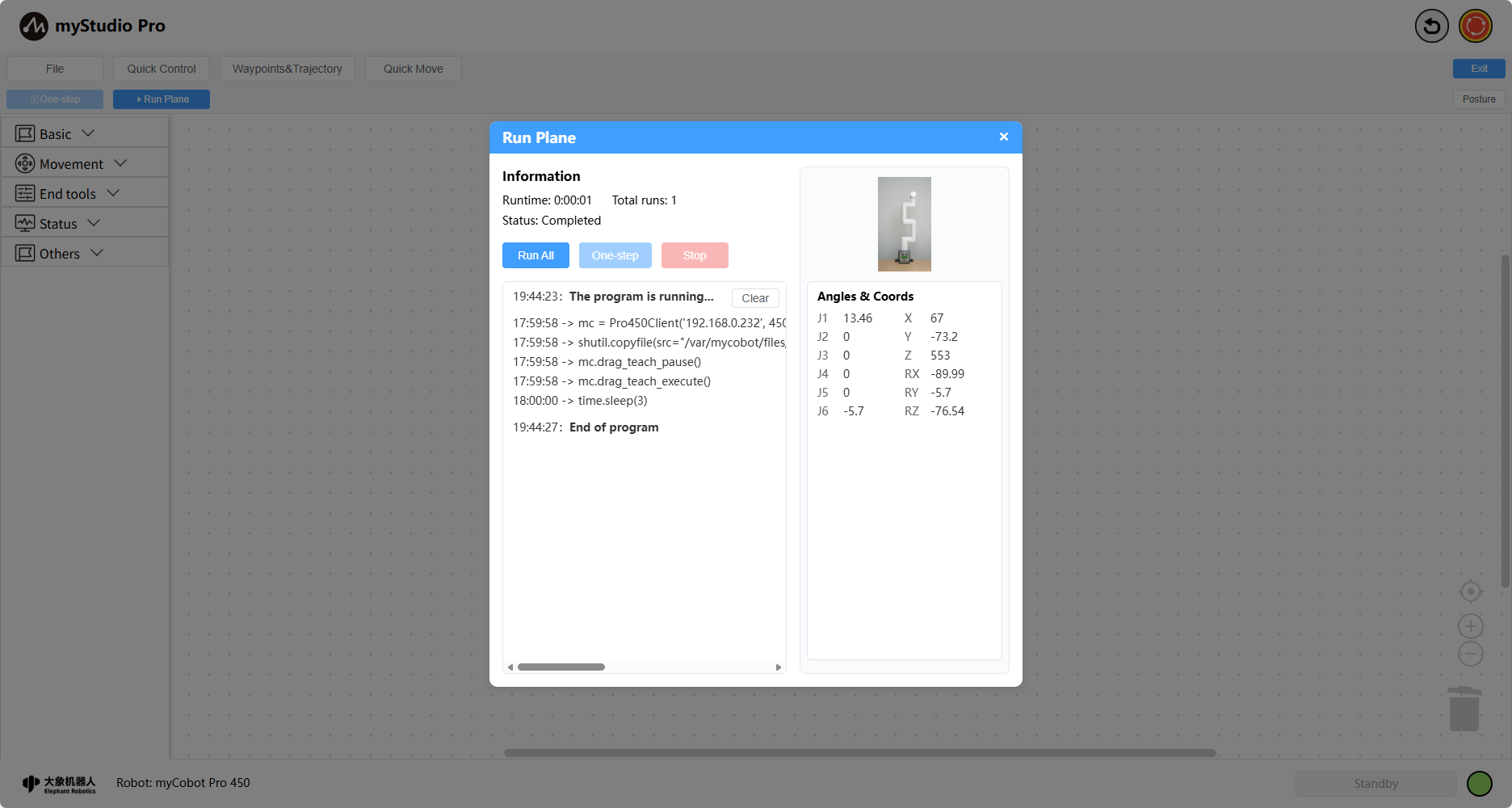

Select the files you want to debug, then click the Debug button. It will first check if there is any unsaved content in the workspace and prompt you. If so, a pop-up window will appear; click "Ok" to load it into the workspace. Otherwise, it will load directly and open the debug panel.

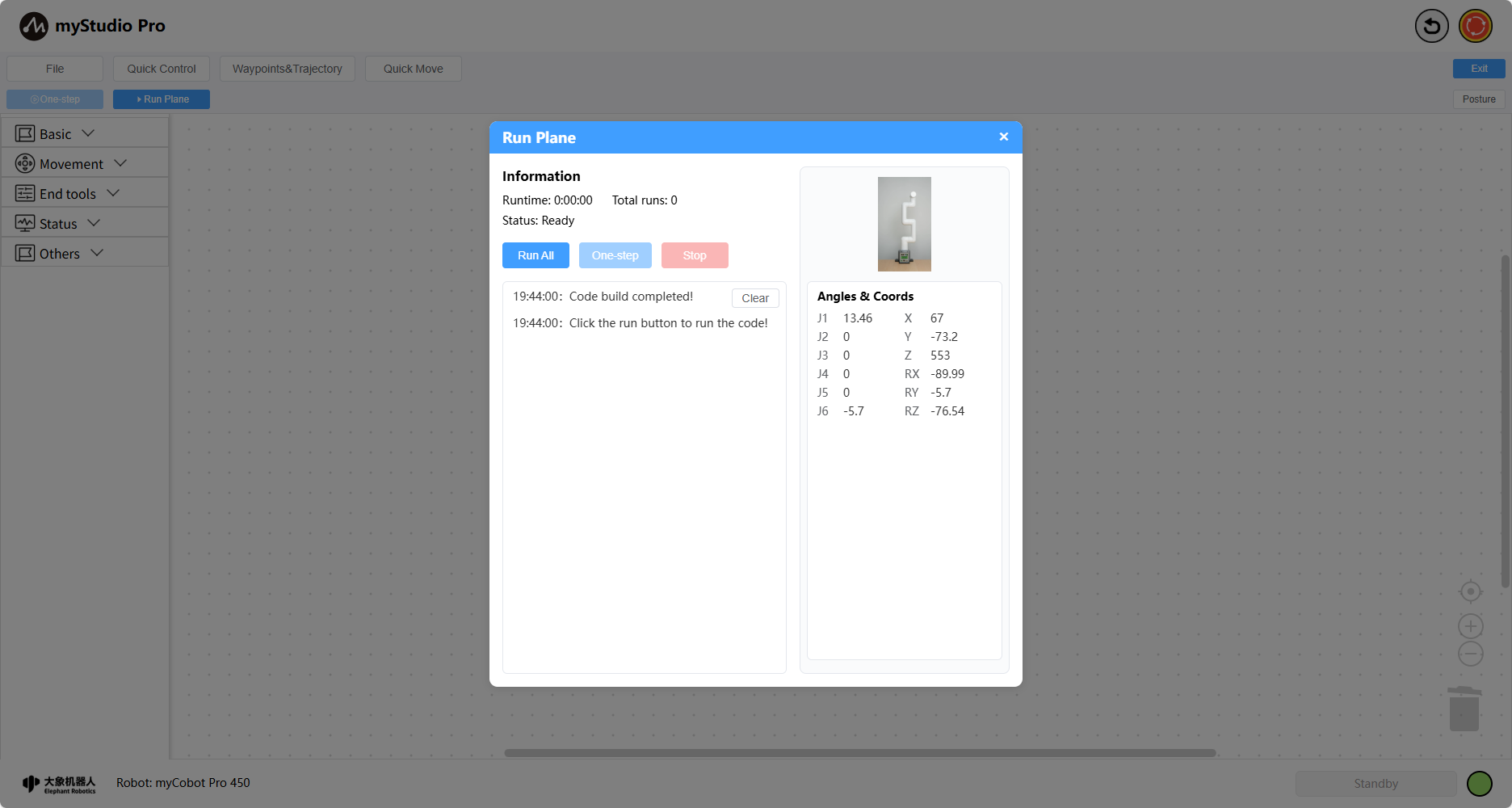

Click "Run All" to begin debugging.

Run

Select the file you want to run, then click the Run button. First, it will check if there is any unsaved content in the workspace and prompt you. If so, a pop-up window will appear; click "Ok" to load it into the workspace. Otherwise, it will load directly, and the Run panel will open; click "Run" to run the file.

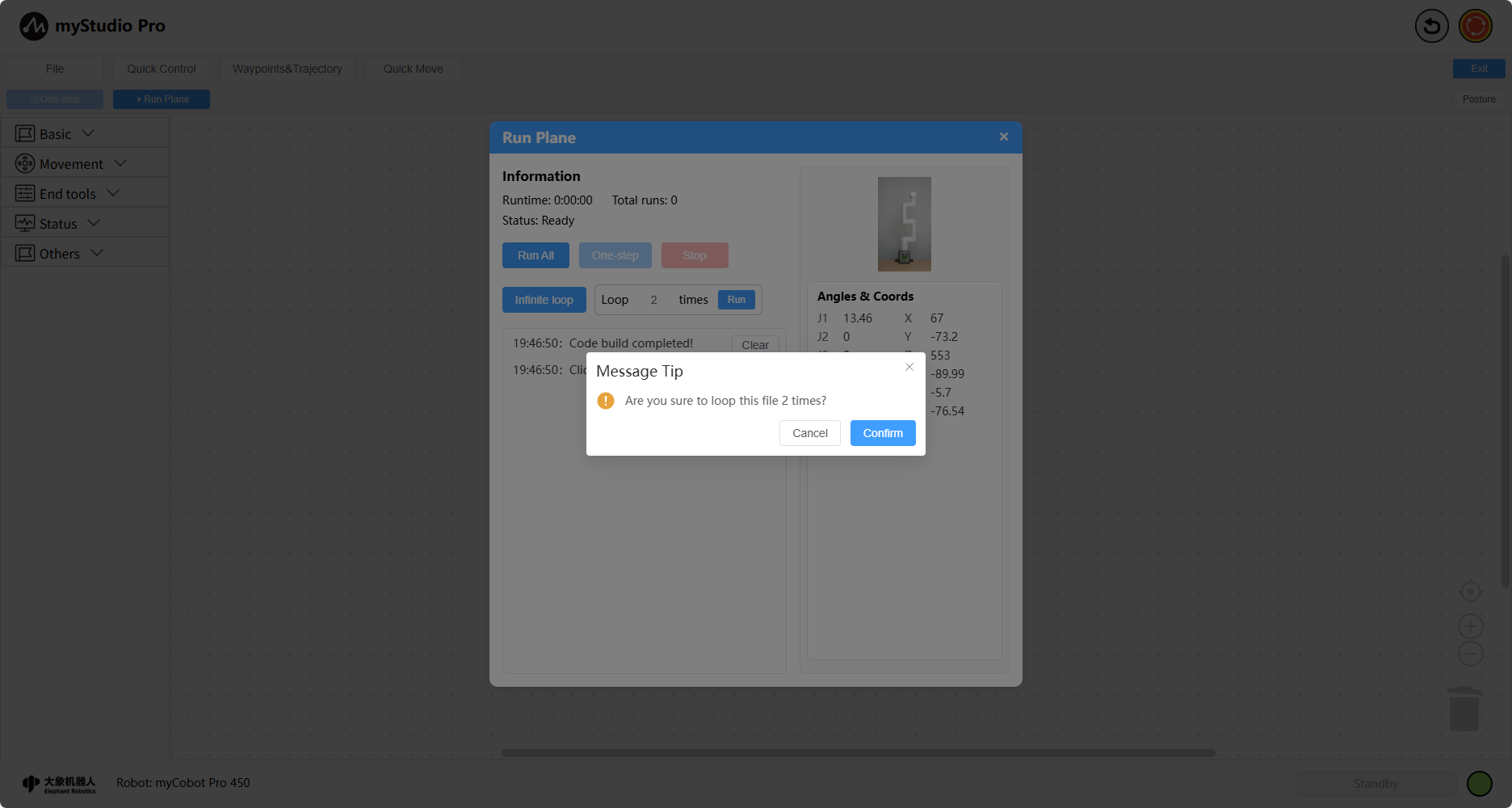

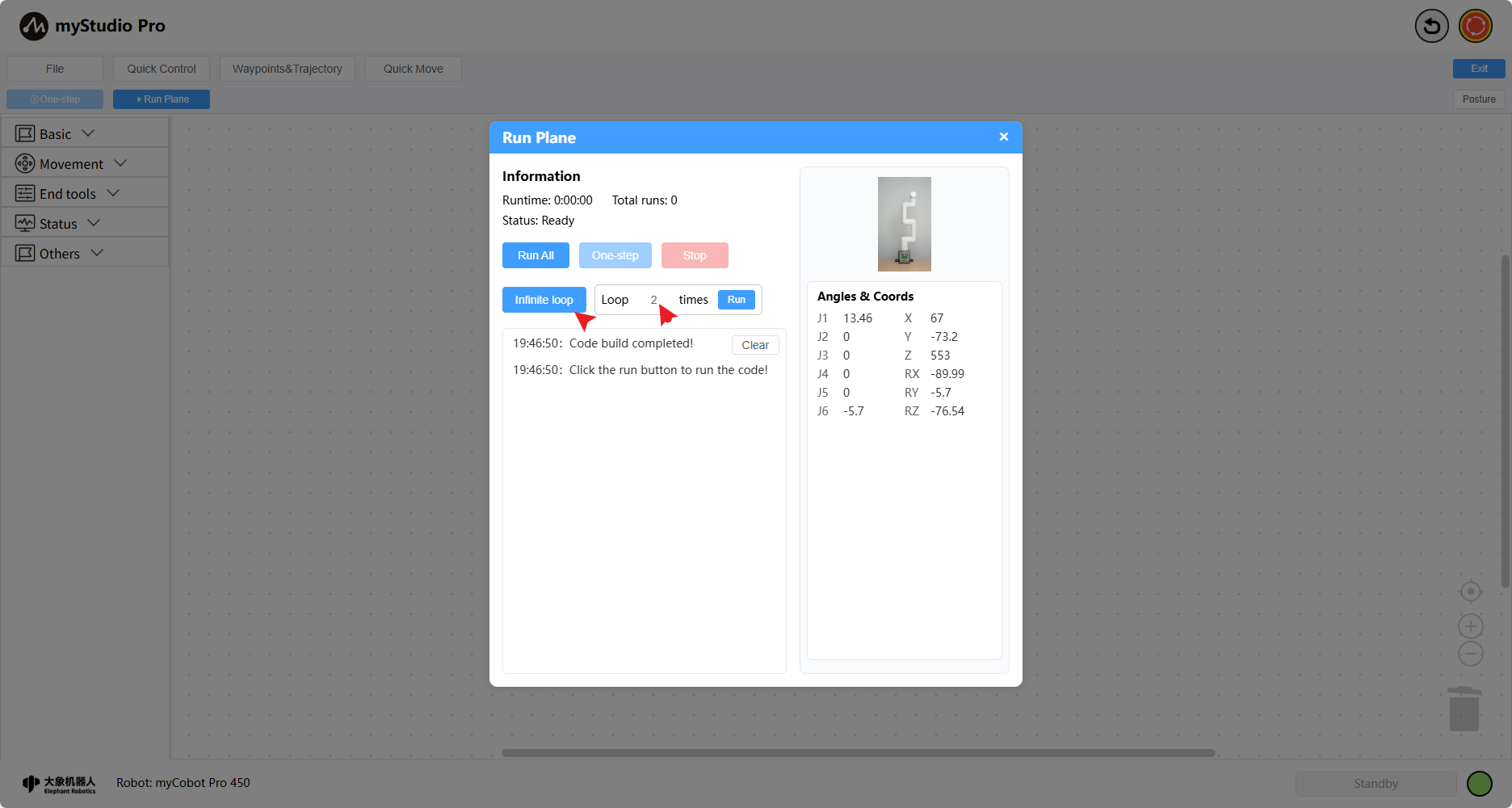

You can choose to run the file infinitely or specify the number of runs (the following explains the looping process). After setting, it will run in a loop. First, it will prompt you twice for confirmation; click "Confirm" to start the loop.

After running.

Publish

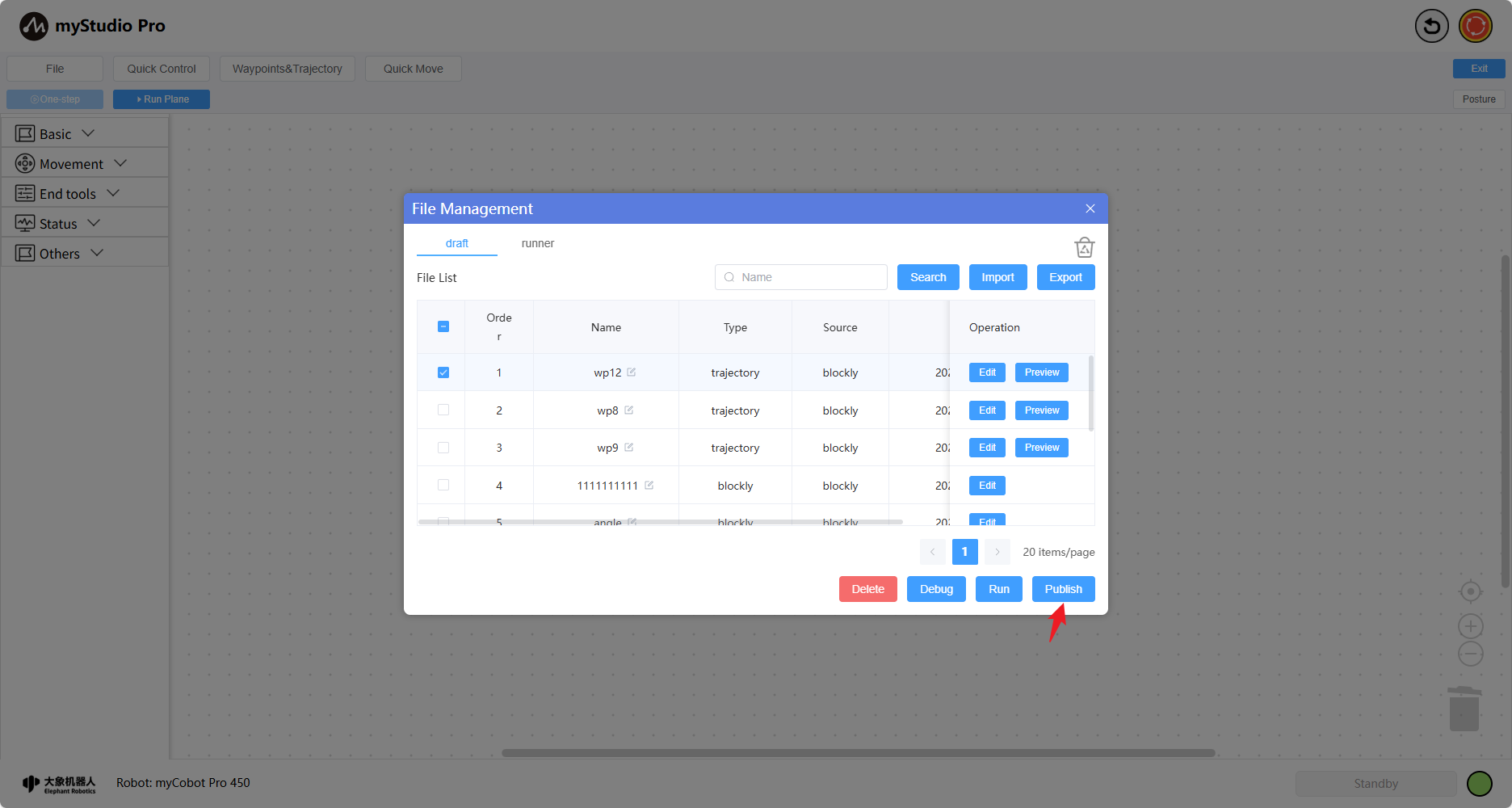

Select the files to be published, and then click the Publish button. This will publish the corresponding files from the test space to the production space.

Copy

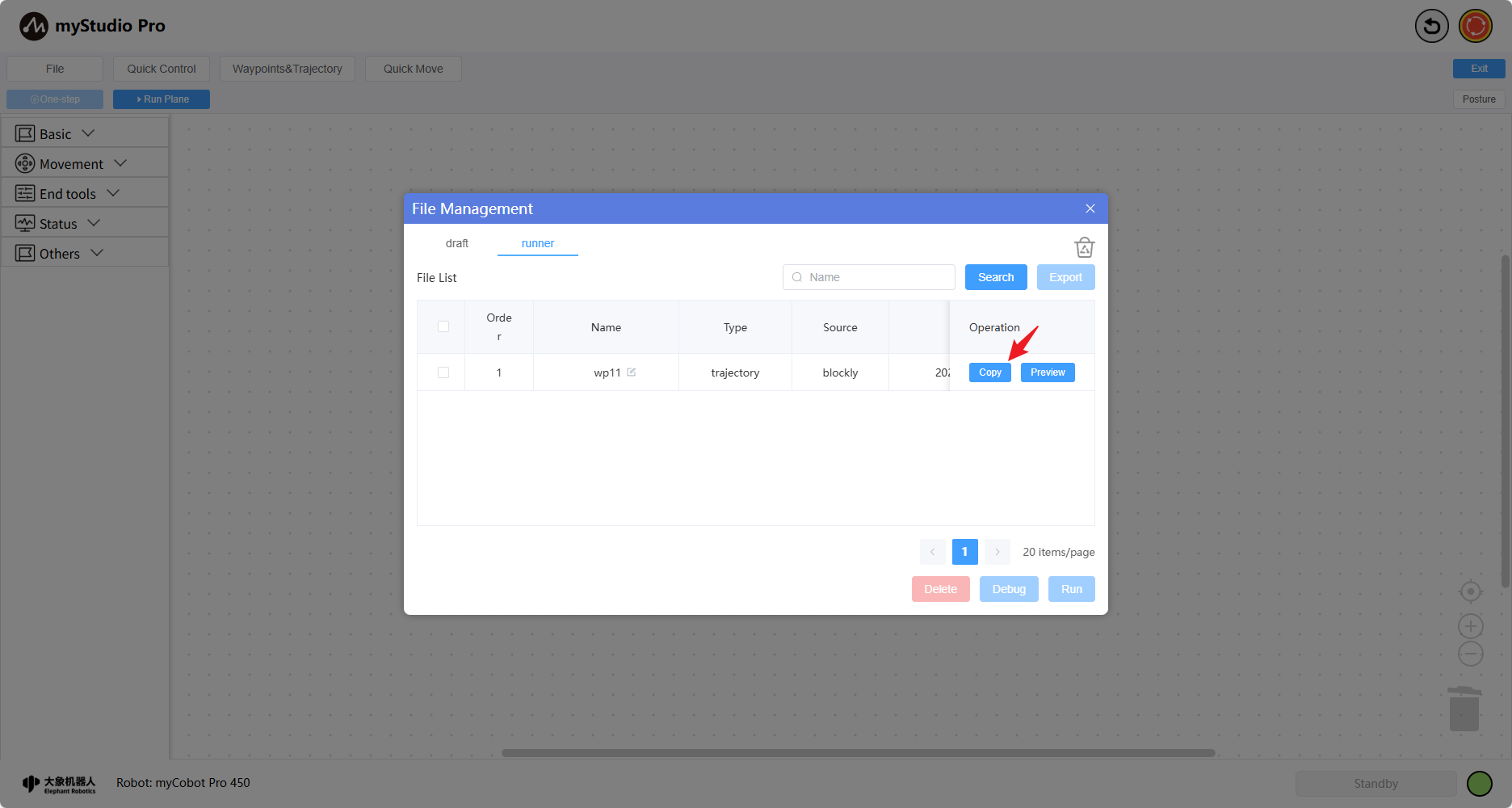

Click the Copy button to copy the file from the production space to the test space.
