ROS1 Environment Setup

This tutorial provides two methods for setting up an Ubuntu 20.04 + ROS1 development environment:

  • Method 1: Importing a Virtual Machine Image (Recommended) → Quickest way to get started, with a complete built-in environment
  • Method 2: Customizing the Installation Environment → Building from scratch, suitable for users who require flexible customization

Method 1: Importing a Virtual Machine Image

Recommended: This is the quickest method and suitable for beginners. Note: To simplify environment setup, we will provide a Linux system image (Ubuntu 20.04), the Virtual Box installation package, and its extensions. The following instructions will show you how to install Virtual Box and import the Linux system image (the default user is u202, and the default password is 123). Built-in Environment: ROS1 + Moveit + Git + pymycobot + mycobot_ros

1 Install virtual machine

Of course, if you already have your virtual machine, you can skip this step.

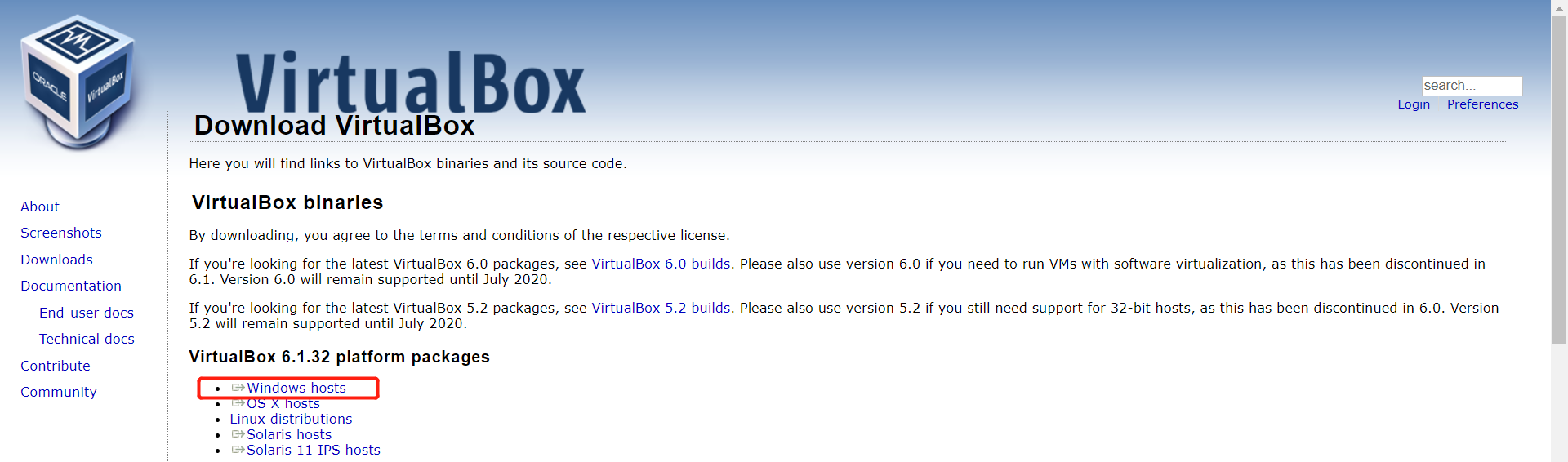

We chose to download Virtual box because it is free.

2 Download Linux system image

Click to download: Linux ubuntu20.04

3 Import Linux system image

In the Virtual Box interface, click Management -> Import Virtual Computer -> Select Virtual Image -> Select the installation path and import it, and then install it as follows.

Just wait for the image to be imported. The installation is successful as shown below.

Then start the system, the user name is u202, the default password is 123

4 Update pymycobot

To use the latest robotics driver library, open a terminal and execute the following command:

pip3 install pymycobot --upgrade

5 Update mycobot_ros

To ensure users have the latest official packages, navigate to the /home/u202/catkin_ws/src folder through a file manager, open a console terminal (shortcut Ctrl+Alt+T), and enter the following command to update:

# Clone the code from GitHub
cd ~/catkin_ws/src
# Delete the original mycobot_ros package
sudo rm -rf mycobot_ros

git clone --depth 1 https://github.com/elephantrobotics/mycobot_ros.git
cd .. # Return to the workspace
catkin_make # Build the code in the workspace
source devel/setup.bash # Add environment variables

Method 2: Customize the Installation Environment

1 Virtual Machine Installation

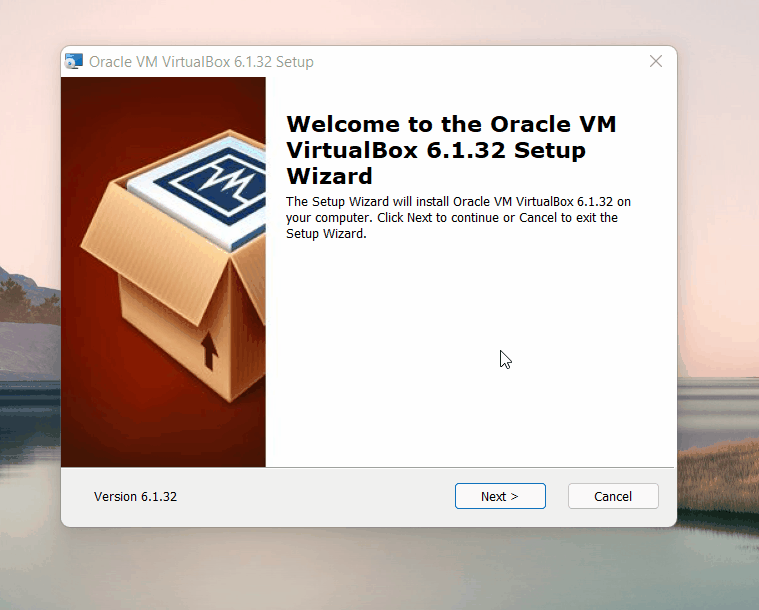

Of course, if you already have your virtual machine, you can skip this step.

We chose to download Virtual box because it is free.

2 Create a virtual machine

  • Select New in the control

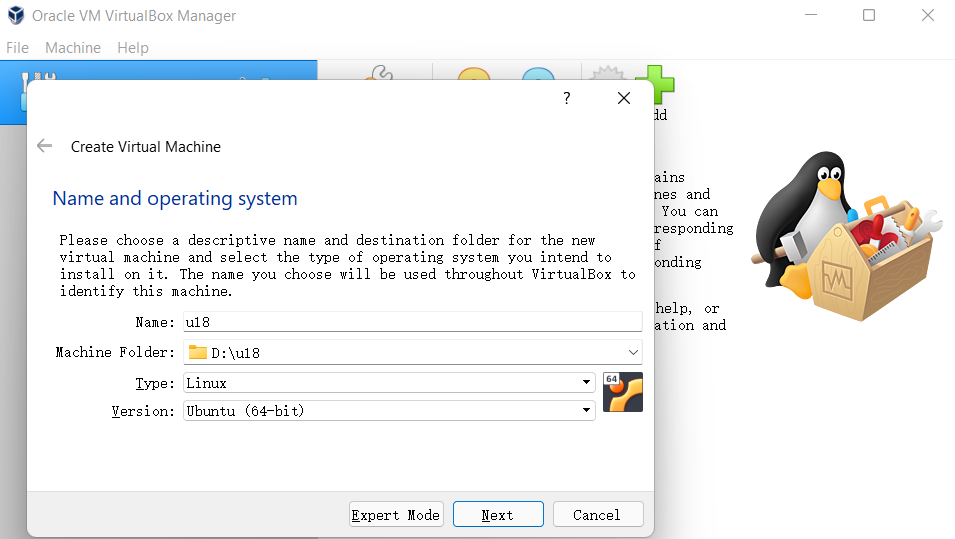

Enter the virtual machine name and the location where the virtual machine is stored, select the virtual machine type as Linux, select Ubuntu 64-bit version, and proceed to the next step.

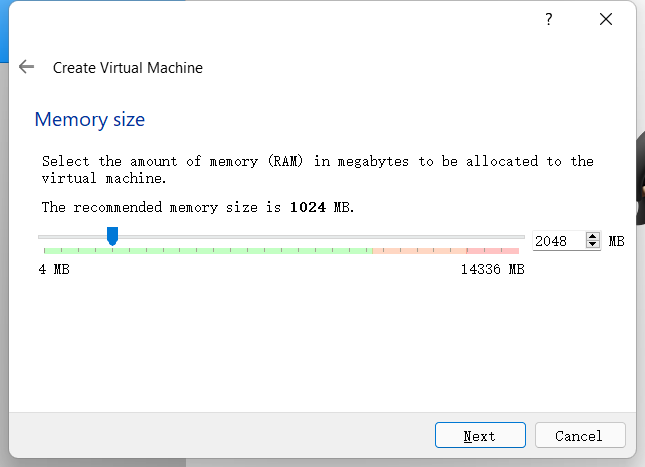

Configure the memory size according to your needs and proceed to the next step.

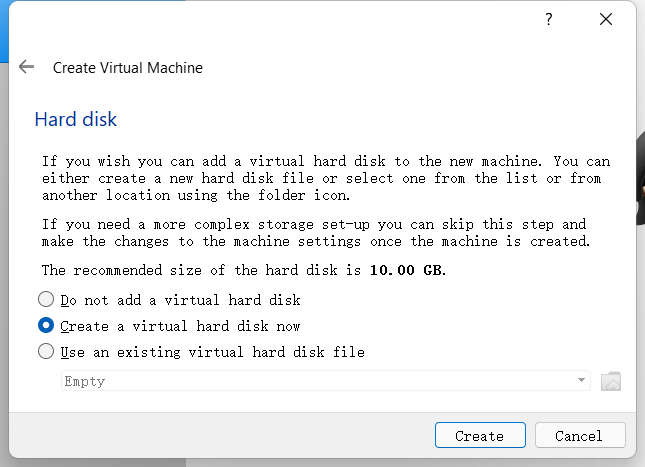

  • Select Create a virtual hard disk now and create it.

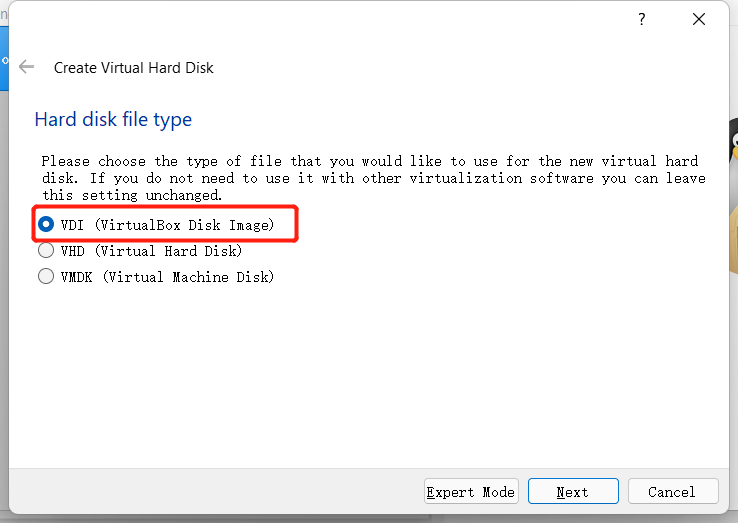

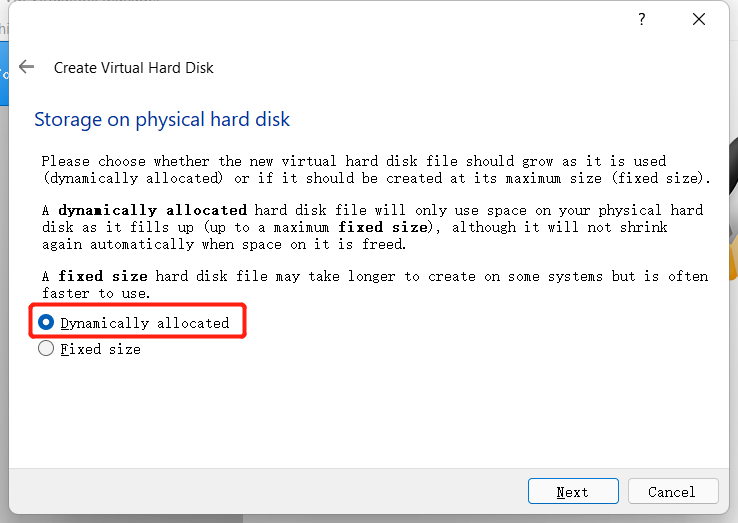

Select the VDI type for the virtual hard disk type and proceed to the next step.

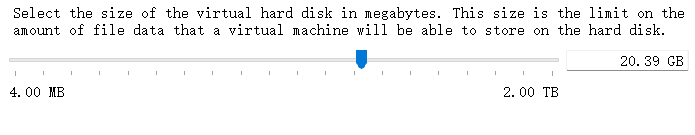

Allocate the size of the virtual hard disk. Since you need to install the Ubuntu system and will also operate in the system, it is recommended that the size should not be less than 20G.

3 Download Ubuntu system.

Please choose the Ubuntu version to install according to your needs, the default version is Ubuntu 20.04.

Note: ROS2 needs to download 20.04 version.

The installation method and process of each version are the same. Here we use the 18.04 version as an example

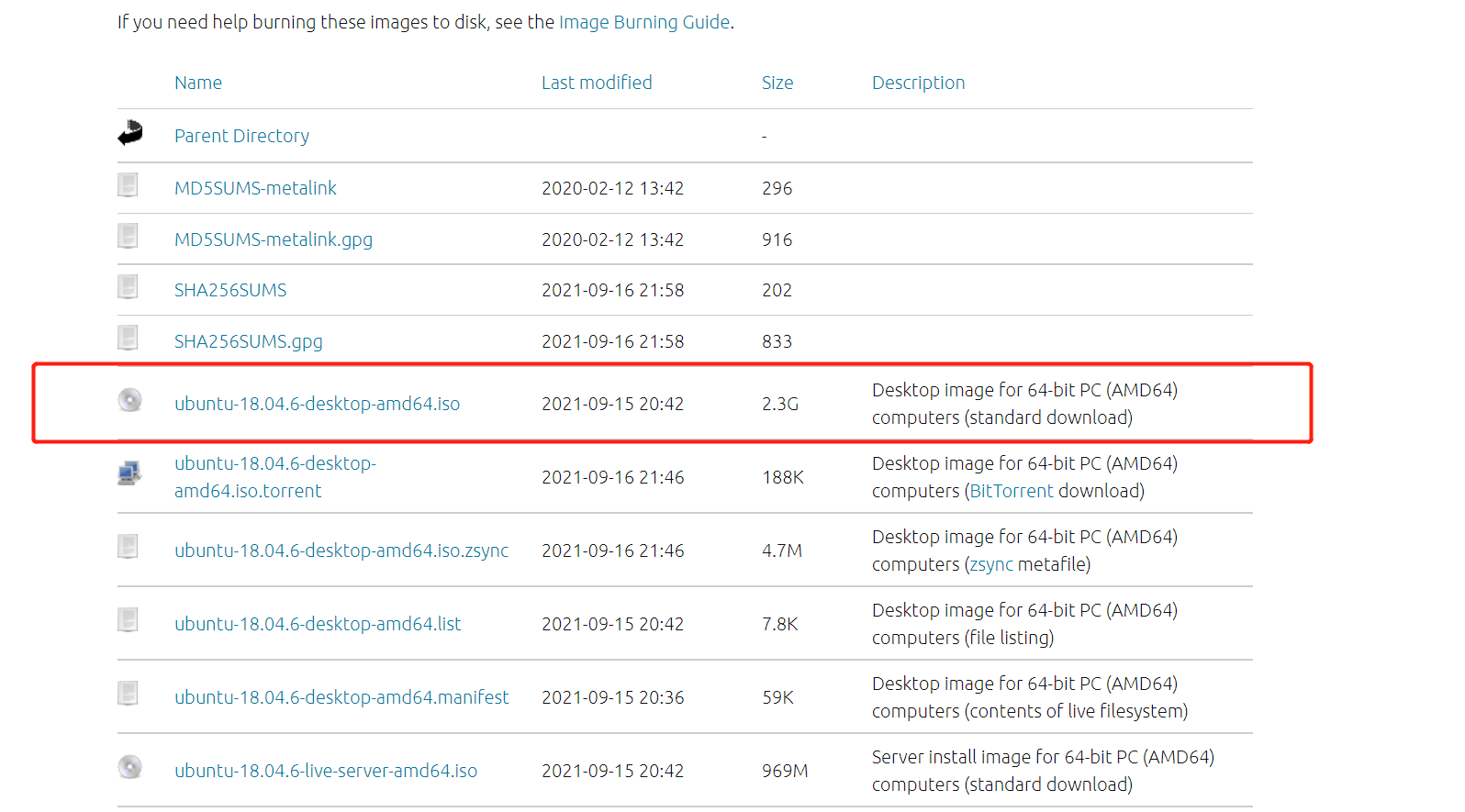

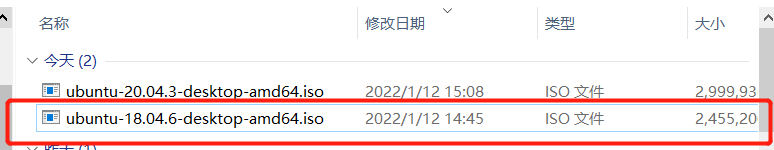

After downloading, there is a file as shown in the figure:

4 Import Ubuntu into the virtual machine

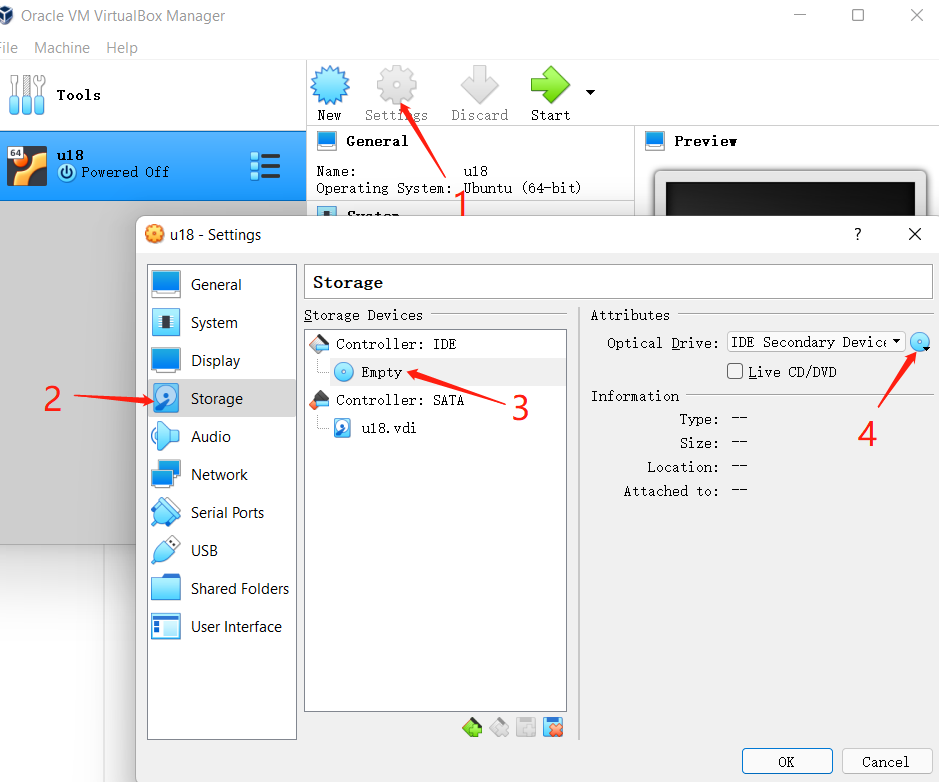

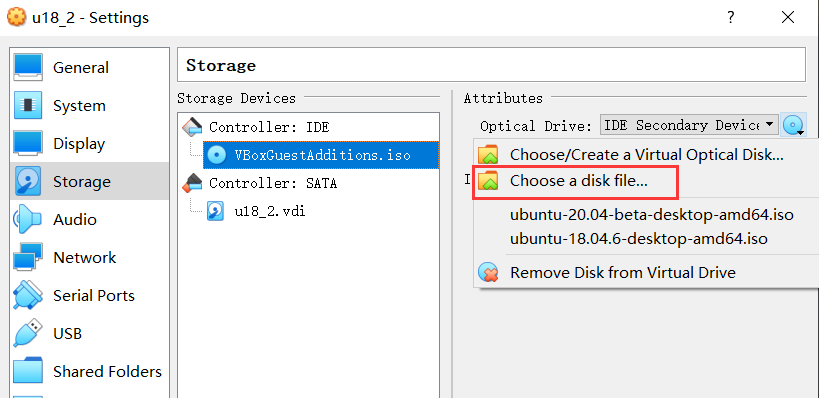

Find the previously installed virtual machine in Virtual Box, enter Settings, and assign the CD to the controller in Storage:

Then open the virtual machine to install Ubuntu and click Start.

5 Ubuntu installation

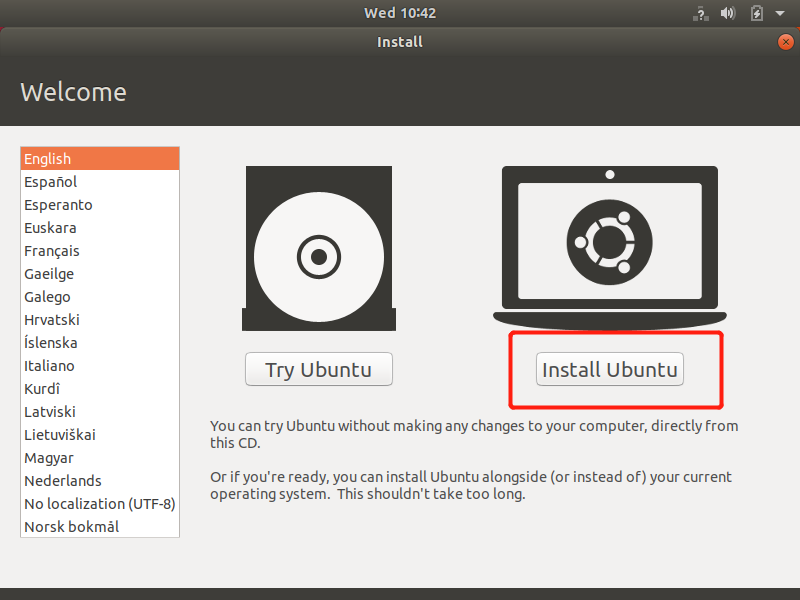

Wait for the system to start, enter the Welcome interface, select "English", and click the "Install Ubuntu" button;

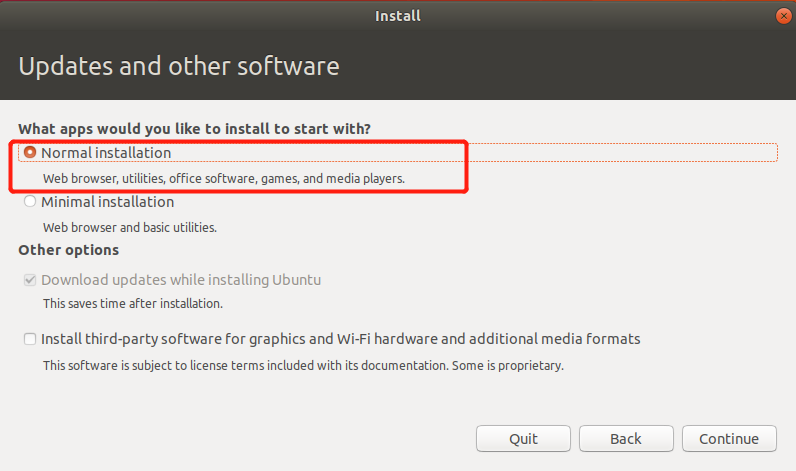

Click the "Continue" button;

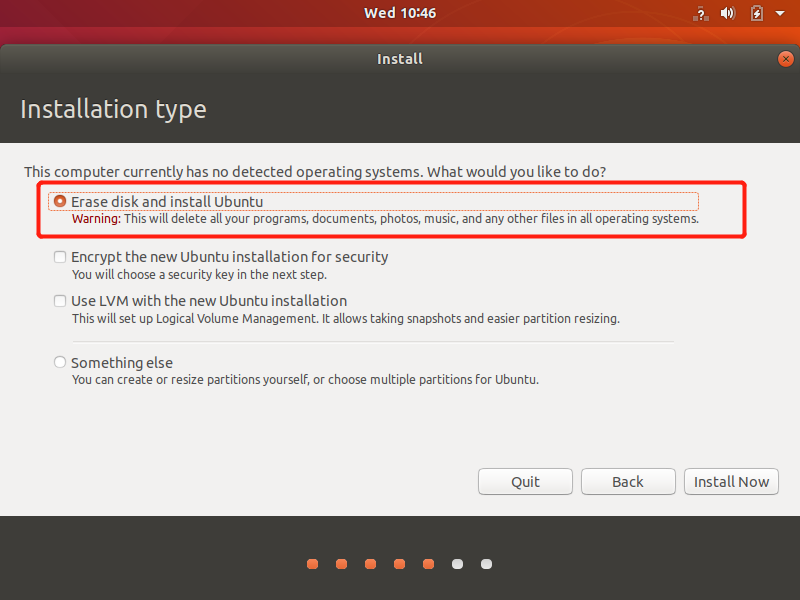

Select the "Erase the entire disk and install Ubuntu" option, and click the "Install Now" button;

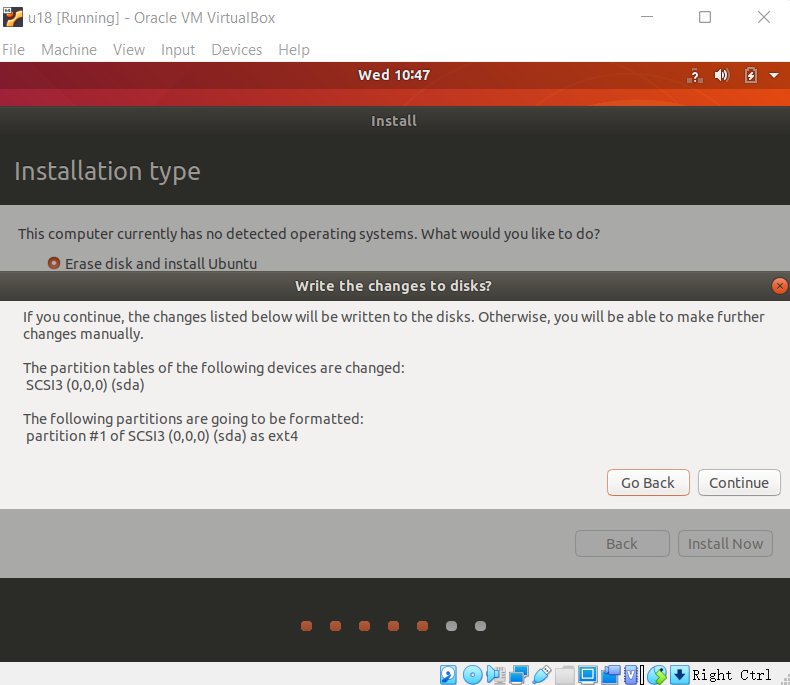

Click the "Continue" button in the pop-up dialog box;

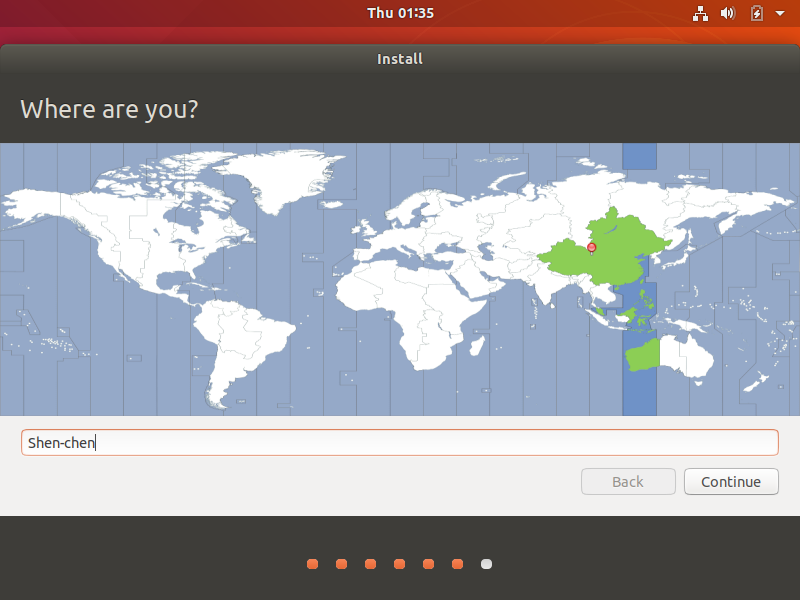

Set the geographic location and click the "Continue" button;

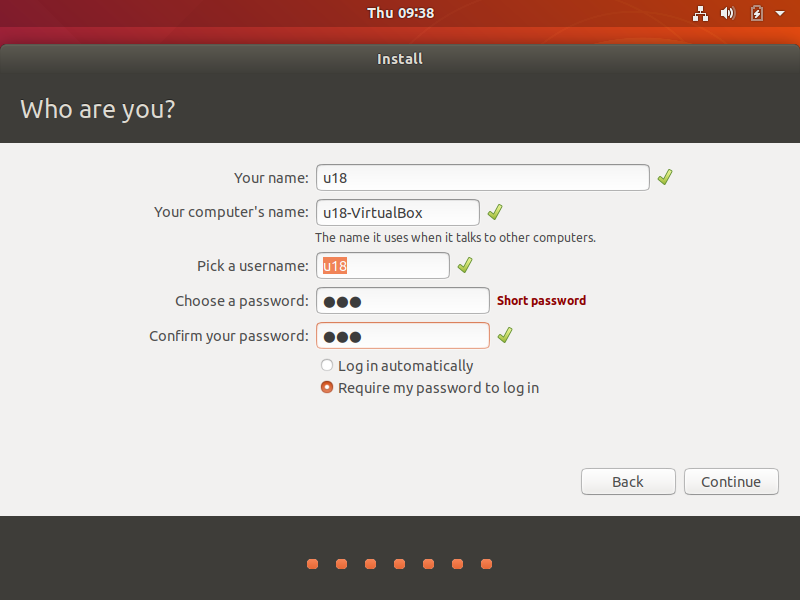

Set the user name and password and click the "Continue" button;

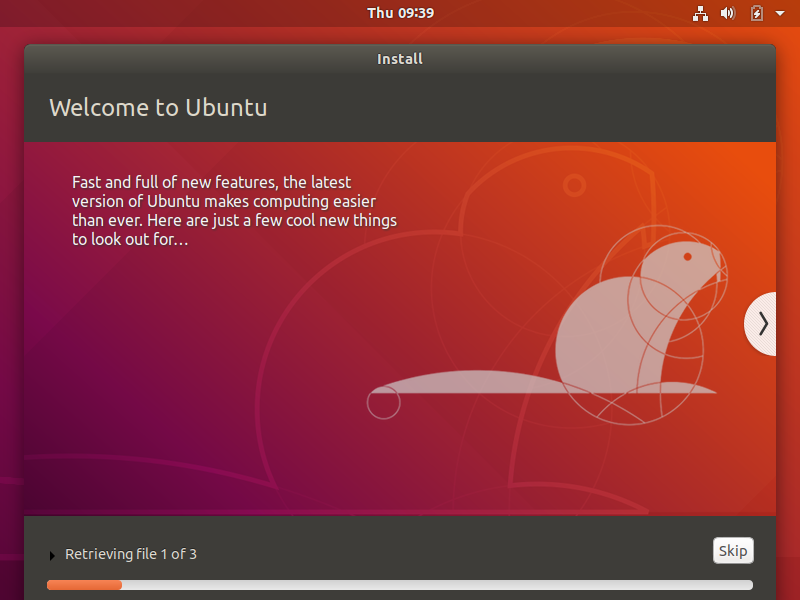

Enter the system installation interface, please wait patiently;

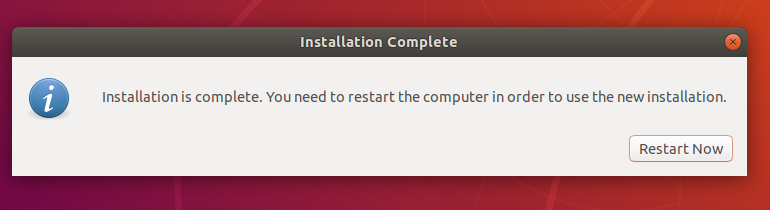

After the installation is complete, in the pop-up dialog box, click the "Restart Now" button to complete the installation.

6 ROS installation

The basic development environment setup requires the installation of the robot operating system ROS, MoveIt, and git version manager. The following describes their installation methods and processes.

For myCobot Pro 450 devices, please refer to the installation methods and processes described below.

Here we choose Ubuntu 20.04, and the corresponding ROS version is ROS Melodic

NOTE: We currently do not provide any reference for installing ROS on Windows. If necessary, please refer to https://www.ros.org/install/

6.1 Start installation

1 Add source

There is no ROS software source in the software source list of Ubuntu itself, so you need to configure the ROS software source to the software list warehouse before you can download ROS. Open a console terminal (shortcut key Ctrl+Alt+T), enter the following command:

  • Official source:
sudo sh -c 'echo "deb http://packages.ros.org/ros/ubuntu $(lsb_release -sc) main" > /etc/apt/sources.list.d/ros-latest.list'
  • If the download speed is slow, it is recommended to select a mirror source nearby to replace the above command. For example, Tsinghua University is:
sudo sh -c '. /etc/lsb-release && echo "deb http://mirrors.tuna.tsinghua.edu.cn/ros/ubuntu/ `lsb_release -cs` main" > /etc/apt/sources.list.d/ros-latest.list'

You will be asked to enter the user password here. Just enter the user password you set when installing Ubuntu.

2 Set up the secret key

Configure the public network secret key. This step is to let the system confirm that our path is safe, so that there is no problem downloading the file, otherwise it will be deleted immediately after downloading:

sudo apt-key adv --keyserver 'hkp://keyserver.ubuntu.com:80' --recv-key C1CF6E31E6BADE8868B172B4F42ED6FBAB17C654

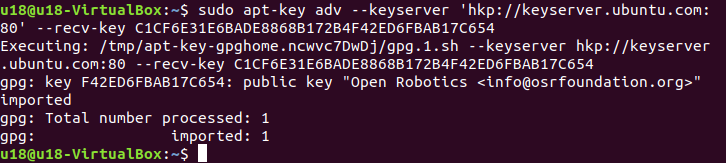

The execution results are shown below:：

3 Installation

After adding a new software source, you need to update the software source list, open a console terminal (shortcut key Ctrl+Alt+T), and enter the following command:

sudo apt-get update

Execute Install ROS, open a console terminal (shortcut key Ctrl+Alt+T), and enter the following command according to your Ubuntu version:

# Ubuntu 20.04
sudo apt install ros-noetic-desktop-full

It is recommended to install the complete ROS to prevent missing libraries and dependencies.

The installation process takes a long time, please be patient

  • If the following error message appears in the console terminal during the installation, you need to change the software source list in /etc/apt/sources.list.

  • Open a console terminal (shortcut key Ctrl+Alt+T), and enter the following command:
sudo gedit /etc/apt/sources.list
  • Replace all official software sources in sources.list with the following Alibaba Cloud software sources:

Ubuntu 20.04：

deb http://mirrors.aliyun.com/ubuntu/ focal main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ focal main restricted universe multiverse

deb http://mirrors.aliyun.com/ubuntu/ focal-security main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ focal-security main restricted universe multiverse

deb http://mirrors.aliyun.com/ubuntu/ focal-updates main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ focal-updates main restricted universe multiverse

deb http://mirrors.aliyun.com/ubuntu/ focal-proposed main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ focal-proposed main restricted universe multiverse

deb http://mirrors.aliyun.com/ubuntu/ focal-backports main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ focal-backports main restricted universe multiverse

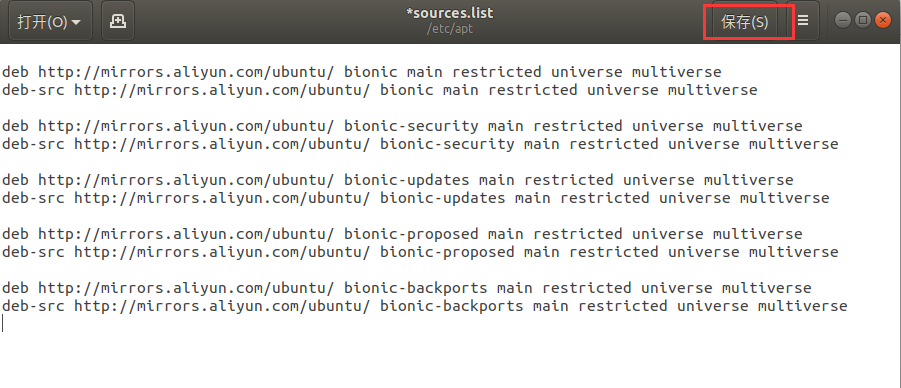

  • After the configuration is complete, the contents of the sources.list file are as follows. Click Save and Exit.

  • Update the software source list and enter in the console terminal:
sudo apt-get update
  • Enter the command to install ROS in the console terminal:
# Ubuntu 20.04
sudo apt install ros-noetic-desktop-full

The installation process takes a long time, please wait patiently

4 Configure ROS environment to the system

rosdep allows you to easily install the source code you want to compile or the system dependencies required by some ROS core components. Execute the following commands in the terminal in sequence to open a console terminal (shortcut key Ctrl+Alt+T).

If rosdep is not installed on your system, please use the command sudo apt install python-rosdep to install it.

If your installed Ubuntu system is version 20.04, please use the command sudo apt install python3-rosdep to install it, and execute the rosdep initialization command after completion.

Initialize rosdep:

sudo rosdep init

If the error message shown below appears:

Solution: Modify the hosts file and enter the following command in the console terminal:

sudo gedit /etc/hosts

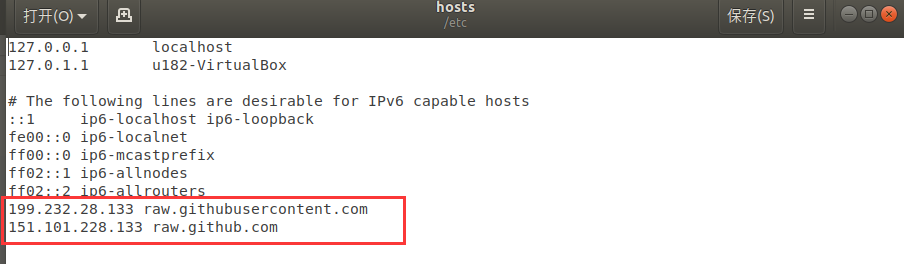

At the end of the file content, add the IP addresses of the following two websites to access:

199.232.28.133 raw.githubusercontent.com
151.101.228.133 raw.github.com

After the modification is completed, execute in the console terminal:

sudo rosdep init

rosdep update

After initialization is completed, in order to avoid the need to re-validate the ROS function path every time the terminal window is closed, we can configure the path to the environment variable, so that the ROS function path can be automatically validated every time a new terminal is opened. Execute the following commands in the terminal in sequence to open a console terminal (shortcut key Ctrl+Alt+T):

6.2 Set up the ros environment

Execute the following command:

# Ubuntu 20.04
echo "source /opt/ros/noetic/setup.bash" >> ~/.bashrc

source ~/.bashrc

6.3 Install ROS additional dependencies

Enter the following command in the terminal to install ROS additional dependencies and open a console terminal (shortcut key Ctrl+Alt+T):

sudo apt install python3-rosdep python3-rosinstall python3-rosinstall-generator python3-wstool build-essential

# Ubuntu 20.04
sudo apt install ros-noetic-joint-state-publisher-gui

6.4 Verify the installation

The startup of the ROS system requires a ROS Master, i.e., a node manager. We can start the ROS Master by entering the roscore command in the terminal.

To verify whether ROS is successfully installed, open a console terminal (shortcut key Ctrl+Alt+T), and execute the following command in the terminal:

roscore

When the following interface is displayed, it means that ROS is installed successfully

The roscore command starts a node manager, which is used for node management. In a ros system, there is only one node manager, which is the prerequisite for the operation of the ros node. Therefore, before starting the ros node, the first step is to execute roscore.

For more detailed installation instructions, please refer to the official installation guide at: http://wiki.ros.org/ROS/Installation

7 MoveIt Installation

MoveIt is a functional package of a series of mobile operations in ROS, mainly including motion planning, collision detection, kinematics, 3D perception, operation control and other functions.

7.1 Update the software source list

Open a console terminal (shortcut key Ctrl+Alt+T), and enter the following command in the terminal window to update the software source list:

sudo apt-get update

7.2 Install MoveIt

Open a console terminal (shortcut key Ctrl+Alt+T), enter the following command in the terminal window to execute MoveIt installation:

# Ubuntu20.04
sudo apt-get install ros-noetic-moveit

8 git installation

8.1 Add software source

Add the software source installed by git to the software source list of Ubuntu, open a console terminal (shortcut key Ctrl+Alt+T), and enter the following command in the terminal window:

sudo add-apt-repository ppa:git-core/ppa

8.2 Update the software source list

Open a console terminal (shortcut key Ctrl+Alt+T), and enter the following command in the terminal window to update the software source list:

sudo apt-get update

8.3 Install git

Open a console terminal (shortcut key Ctrl+Alt+T), enter the following command in the terminal window, execute git installation:

sudo apt-get install git

8.4 Verify installation

Read the git version, open a console terminal (shortcut key Ctrl+Alt+T), and enter the following command in the terminal window:

git --version

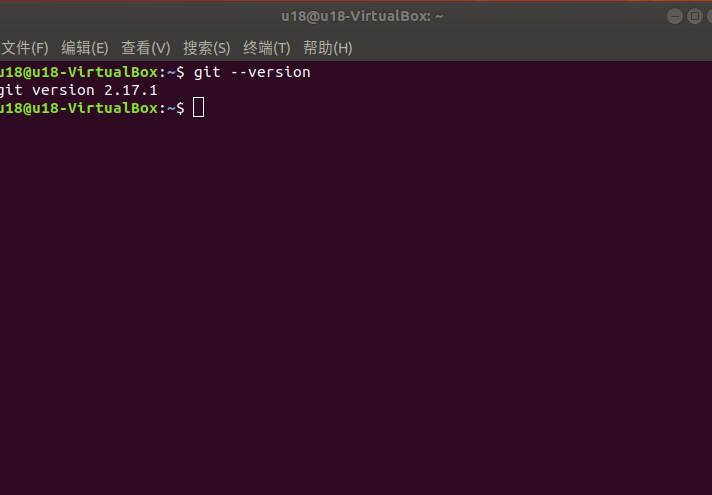

The git version number can be displayed in the terminal, as shown below, indicating a successful installation

8.5 Usage

You will need to use git to download the ros package later. For details on how to use git, please refer to the following link:

9 mycobot_ros installation

mycobot_ros is a ROS package launched by ElephantRobotics, which is compatible with its desktop six-axis robot arm mycobot series.

项目地址：http://github.com/elephantrobotics/mycobot_ros

9.1 Prerequisites

Before installing the package, please ensure that you have a ros workspace.

Here we give a sample command for creating a workspace, the default is catkin_ws, open a console terminal (shortcut key Ctrl+Alt+T), and enter the following command in the command line:

mkdir -p ~/catkin_ws/src # Create a folder
cd ~/catkin_ws/src # Enter the folder
catkin_init_workspace # Initialize the current directory as a ROS workspace
cd .. # Return to the parent directory
catkin_make # Build the code in the workspace.

Add workspace environment

The official default ROS1 workspace is catkin_ws.

# Ubuntu 20.04
echo "source ~/catkin_ws/devel/setup.bash" >> ~/.bashrc

source ~/.bashrc

9.2 Installation

NOTE:

  • This package depends on ROS and MoveIT. Please make sure that ROS and MoveIT are installed successfully before use.
  • The interaction between this package and the real robot arm depends on PythonApi - pymycobot
  • The Api project is: https://github.com/elephantrobotics/pymycobot
  • Quick installation: pip install pymycobot --upgrade

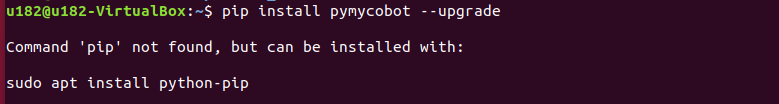

When executing the pip install pymycobot --upgrade command, if the following error message appears:

Enter the following command to install pip according to the prompt

sudo apt install python3-pip

After pip is installed, execute it again in the terminal

pip3 install pymycobot --upgrade
  • The installation method depends on Git, please make sure Git is installed on your computer.

The official default ROS1 workspace is catkin_ws.

cd ~/catkin_ws/src # Enter the src folder of the workspace
git clone --depth 1 https://github.com/elephantrobotics/mycobot_ros.git # Clone the code on github
cd .. # Return to the workspace
catkin_make # Build the code in the workspace
source devel/setup.bash # Add environment variables

This completes the ROS1 environment setup. For more information on using ROS1, please refer to ROS Basics or ROS Basic Function Examples.
