320M5 Deepseek case
Function introduction: This case uses Baidu online speech recognition API to convert user speech into text, and passes the text command to the locally deployed DeepSeek-R1 large language model. DeepSeek-R1 arranges predefined function functions according to the command content and returns a structured JSON dictionary. The subsequent script parses the JSON data, combines visual technologies such as OpenCV, YOLO target detection and OCR text recognition, and guides the robotic arm to complete the grasping operation
1 Case operation configuration requirements
| Requirements | Configuration |
|---|---|
| Computer type | Laptop |
| CPU | 12th Gen Intel(R) Core(TM) i7-12700H 2.30 GHz |
| GPU | NVIDIA GeForce RTX 3060 or above |
| Memory | 16.0 GB |
| Hard disk | 128G available space |
| System | Windows 10 and above |
| Network requirements | Able to access the Internet normally |
| Robotic arm | 320M5 |
| Python | Version 3.9 or above |
2 Hardware installation

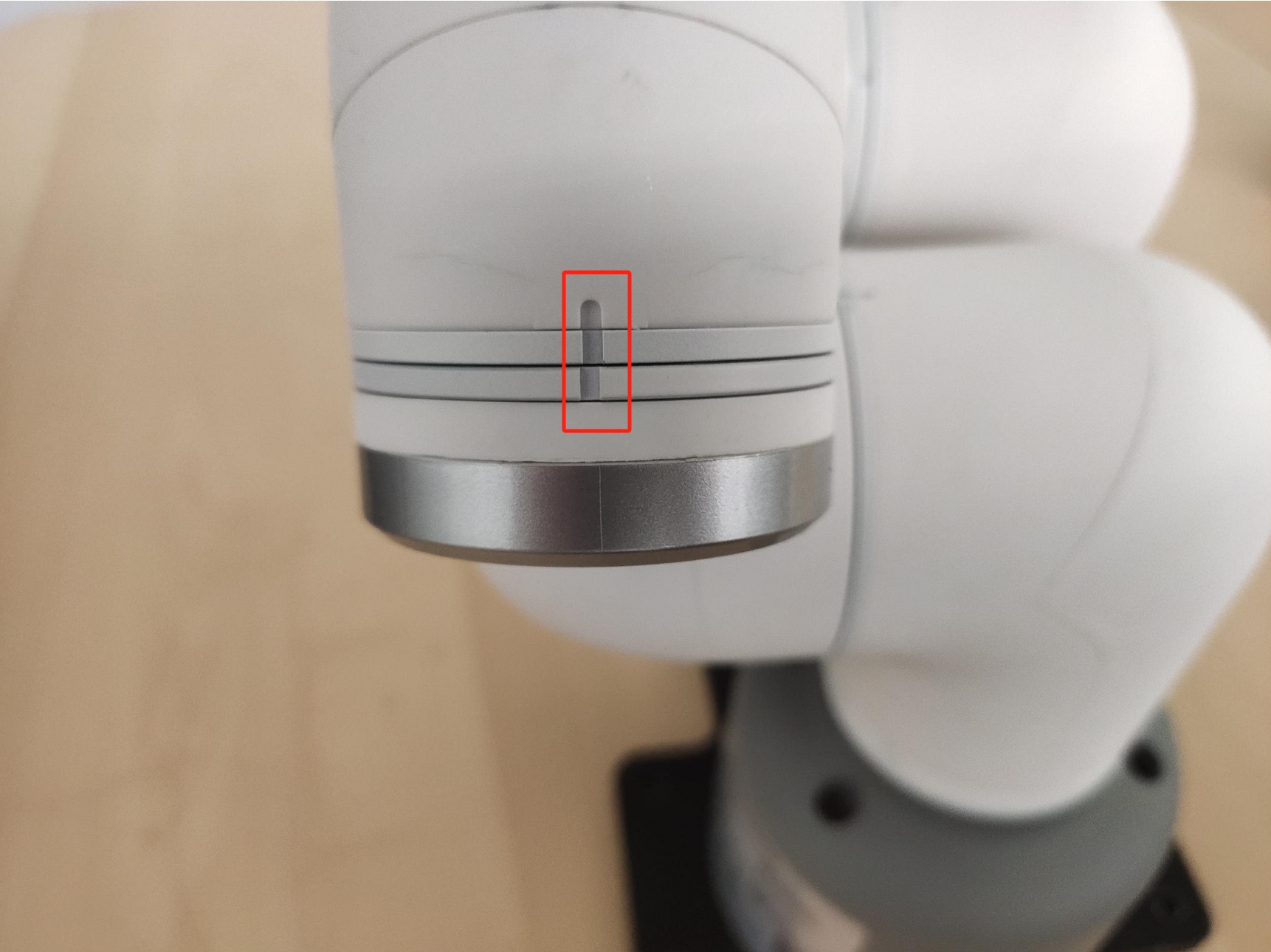

Manually turn the J6 joint to the zero scale line

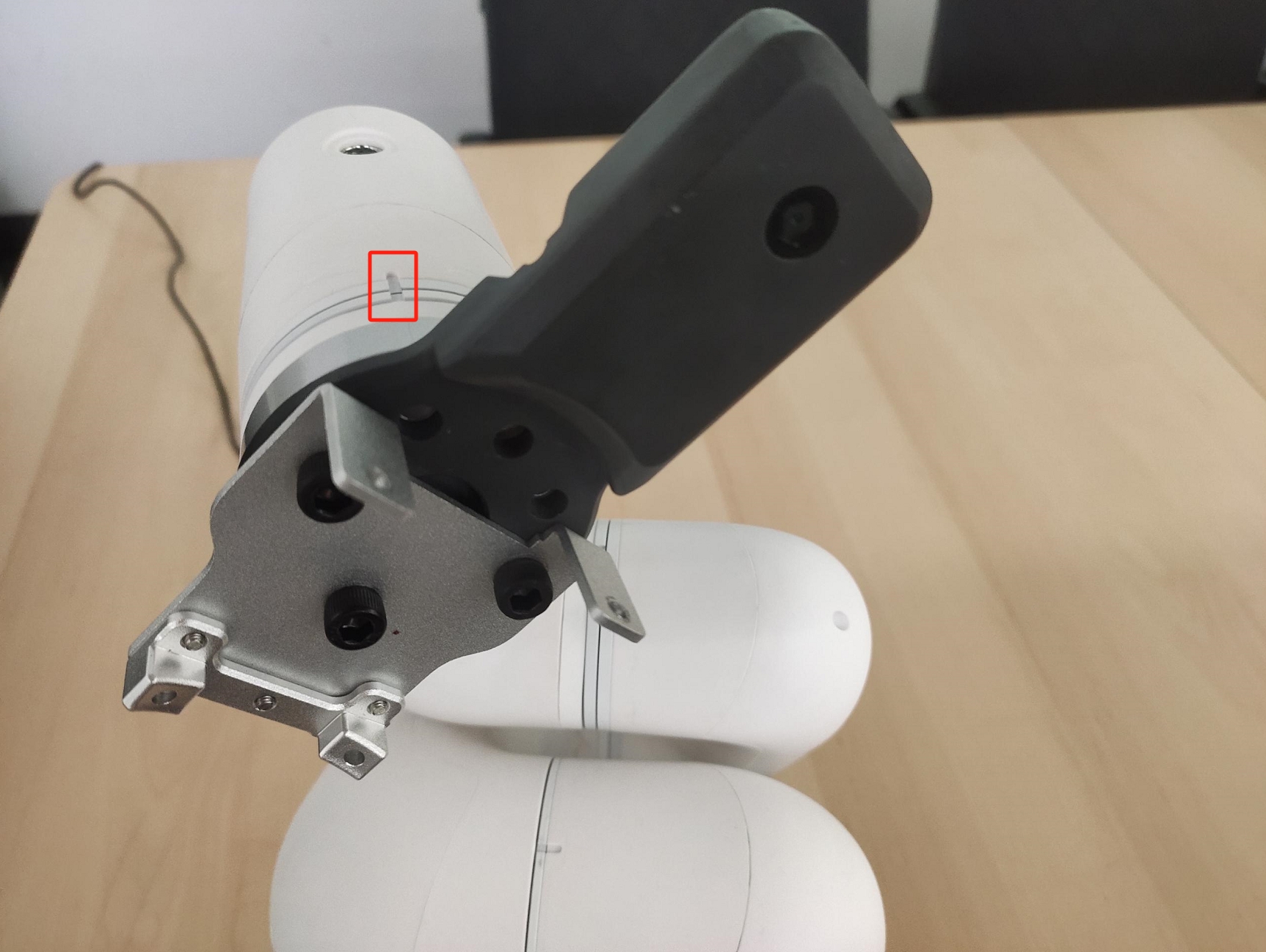

Be sure to install the camera and force control gripper flange to the end of the robot arm according to the figure below. During installation, be careful not to move the J6 zero scale line, otherwise the robot arm will not be able to grasp normally

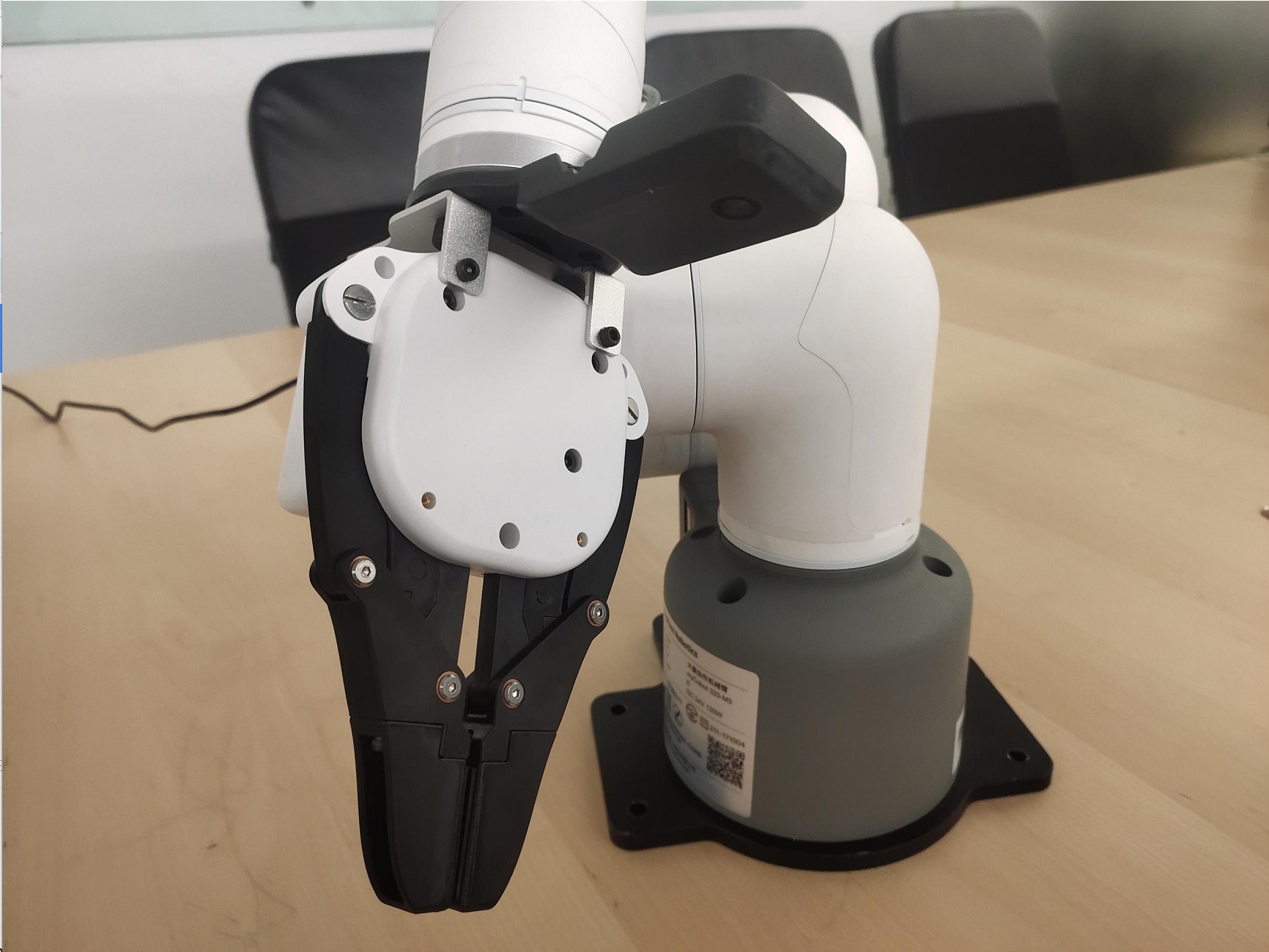

Install the force control gripper on the flange

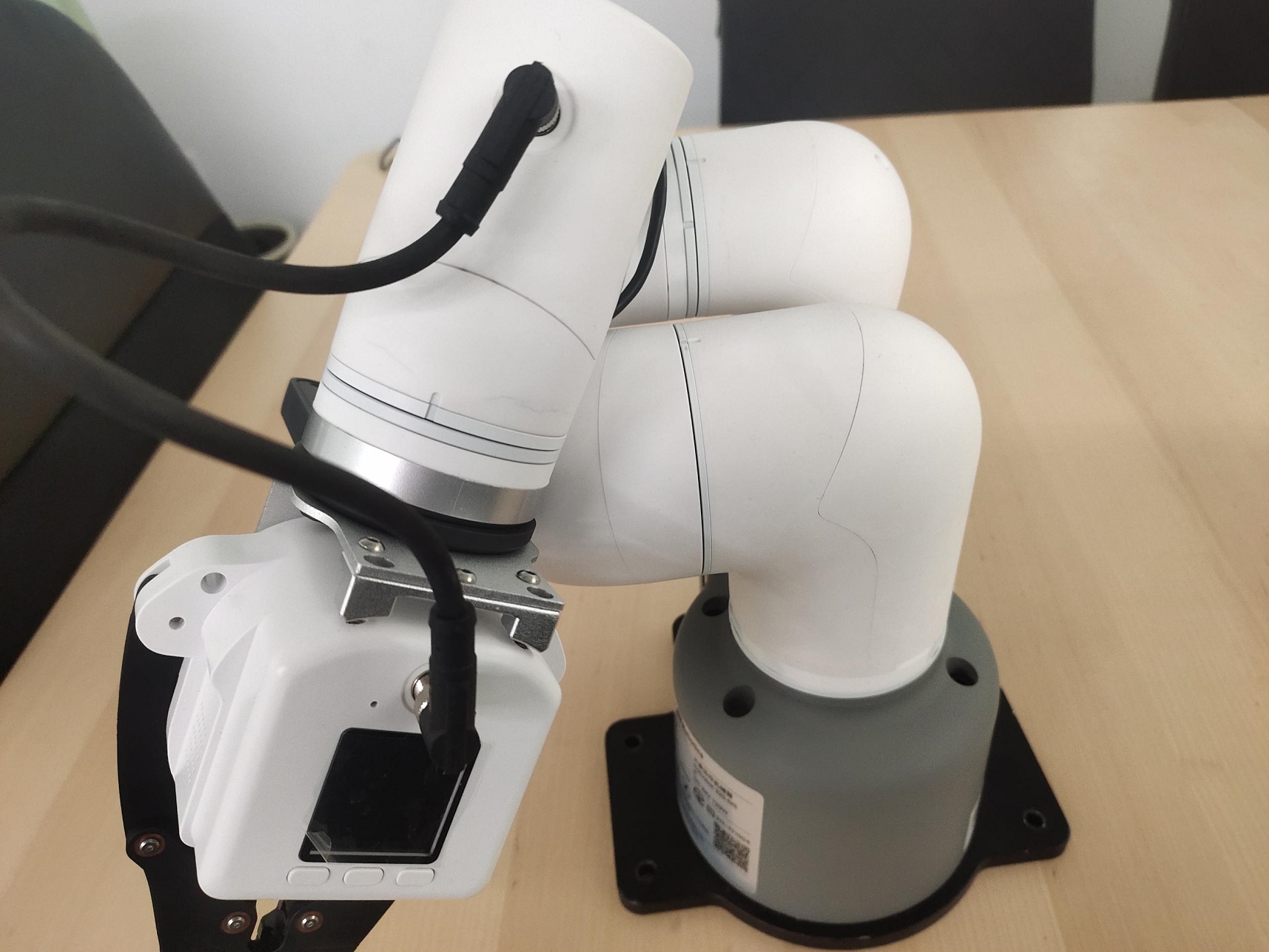

Connect the M8 aviation plug cable to the end interface of the robot arm and the force control gripper interface respectively
Finally, connect the camera cable to the computer USB port

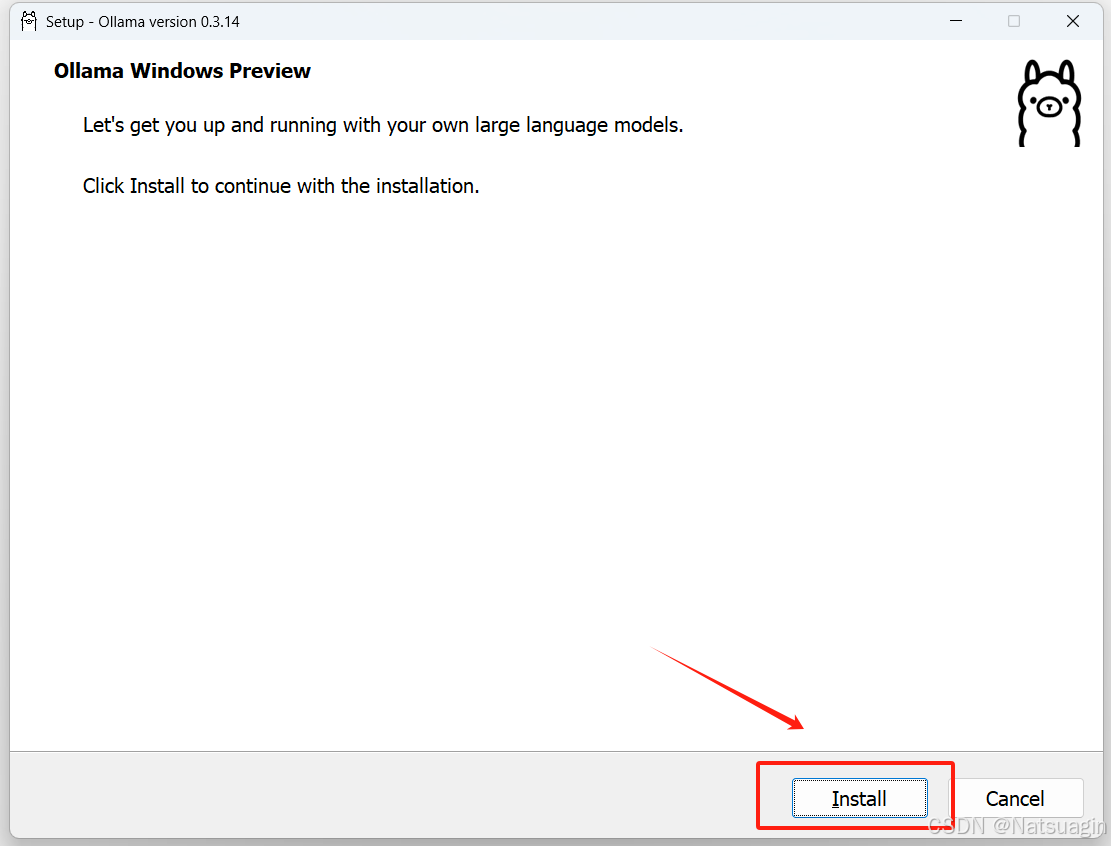

3 ollama installation

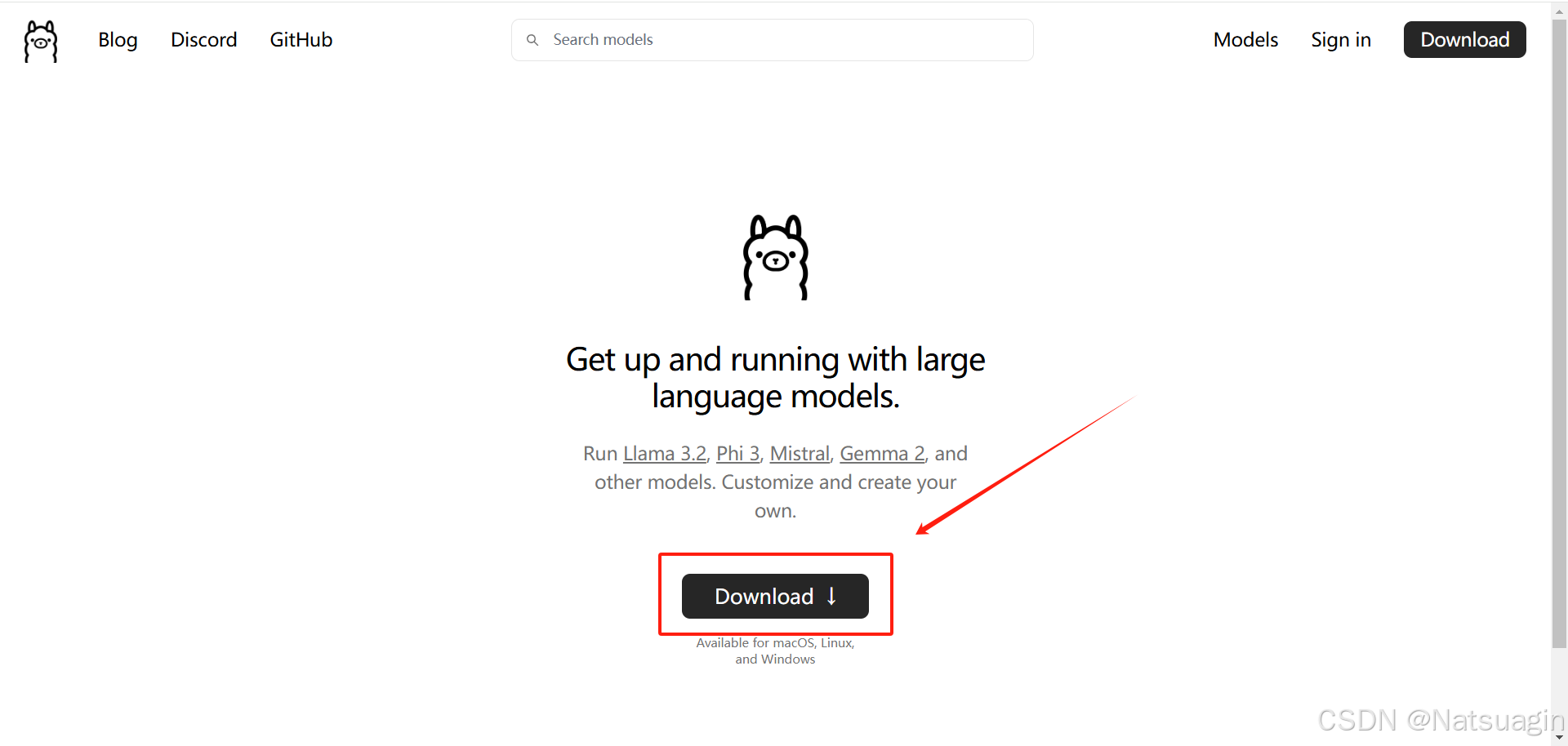

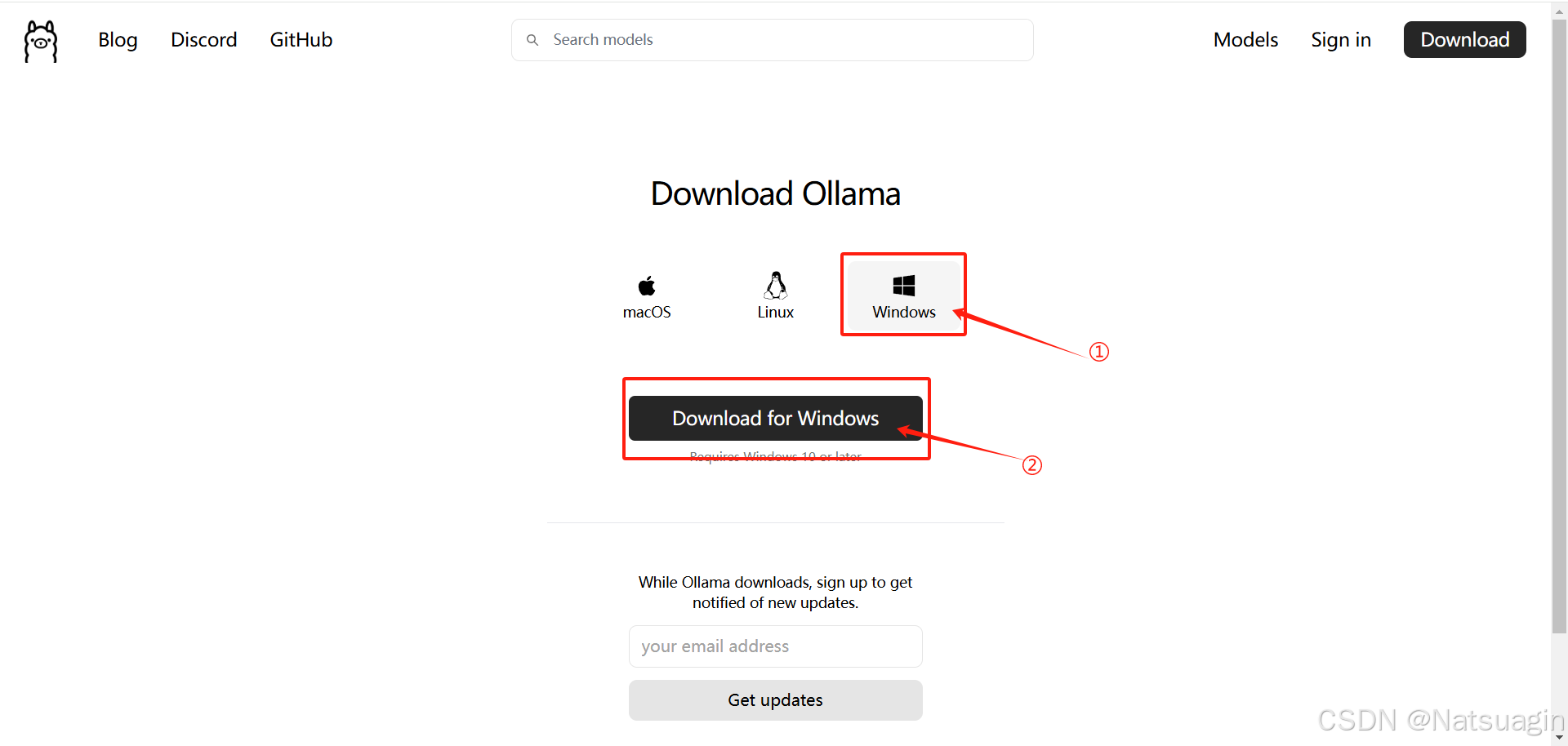

Download official website: https://ollama.com/
4 deepseek Model installation
Open the terminal, enter the following command and press Enter to install
ollama run deepseek-r1:7b
After installation, restart the computer
5 Baidu API creation

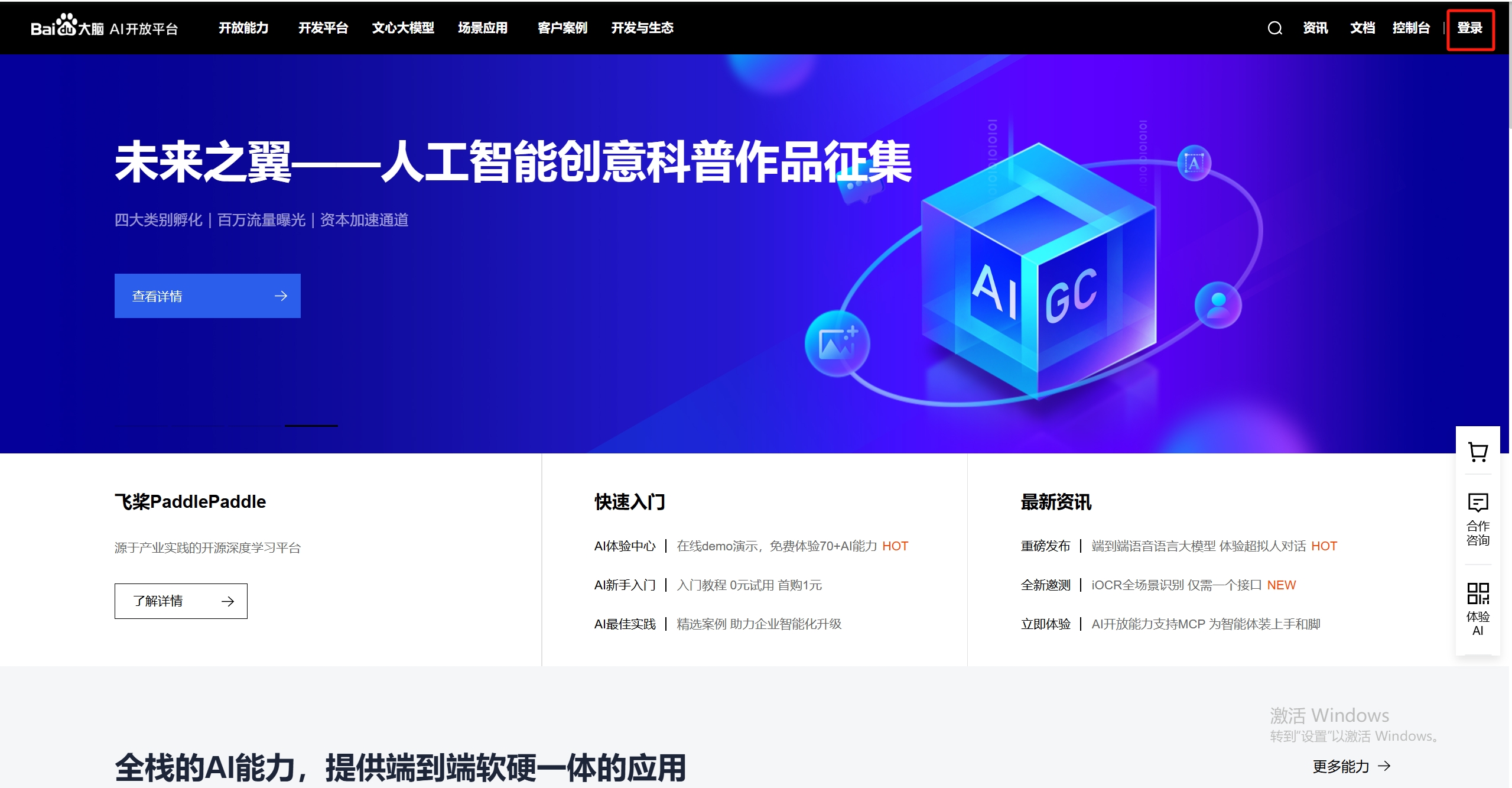

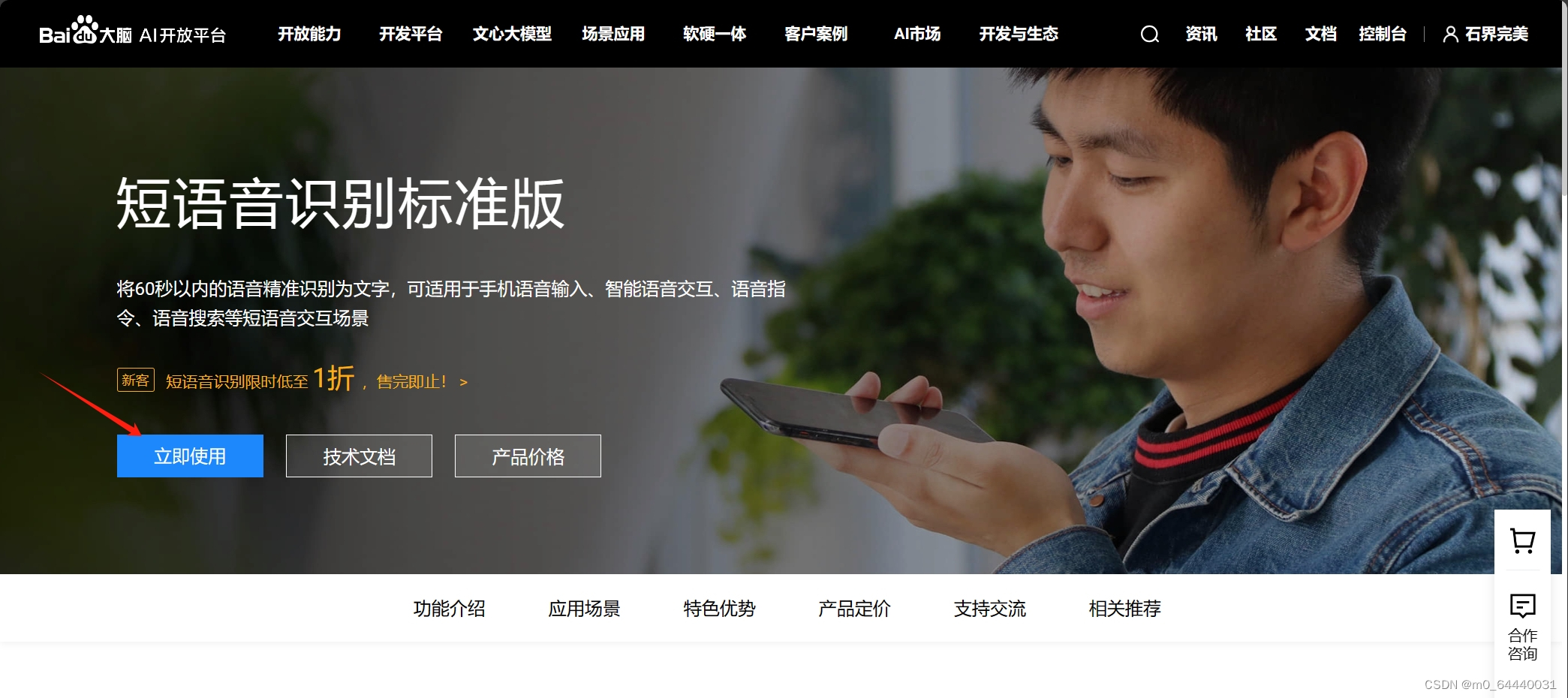

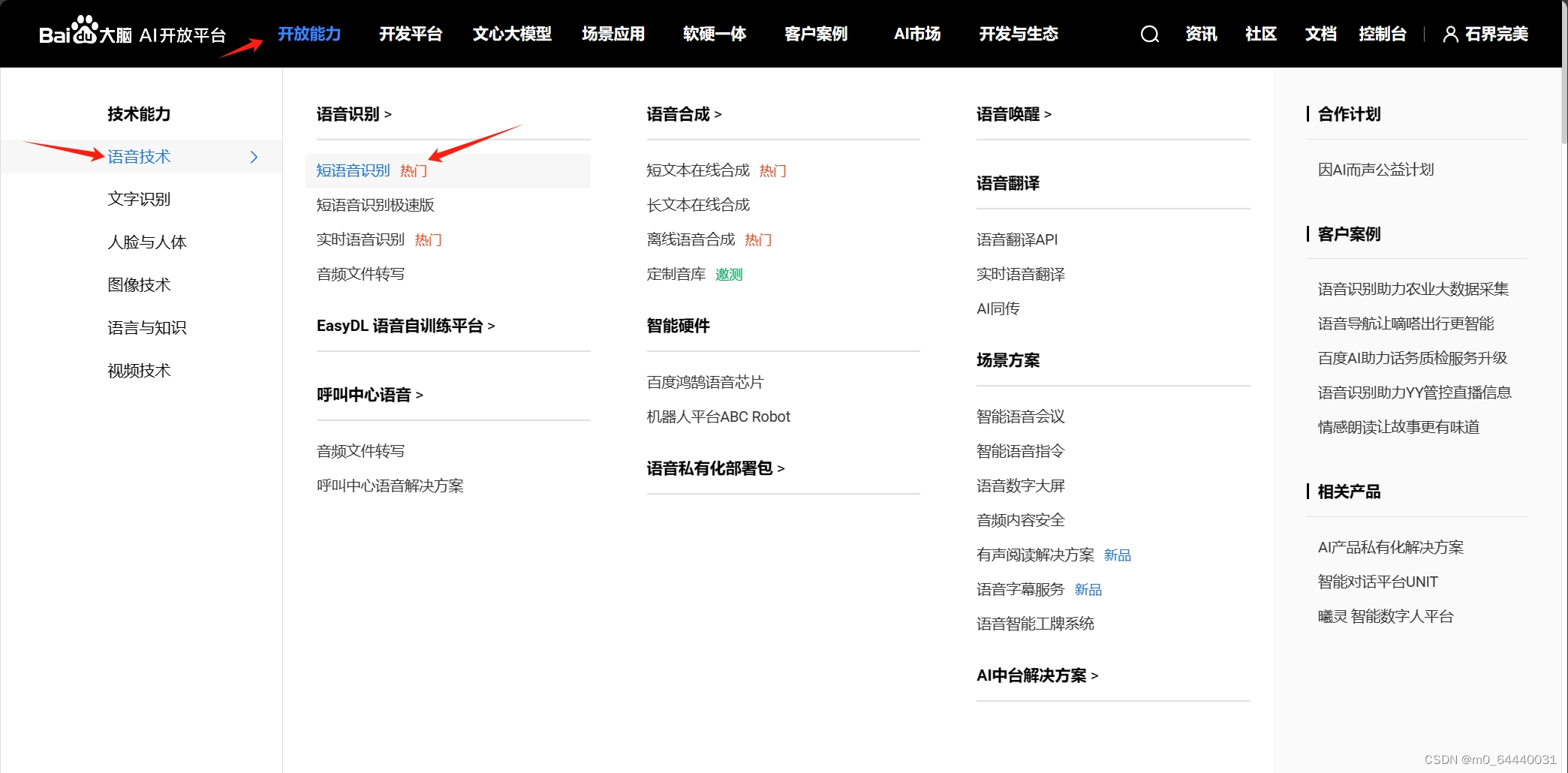

Register Baidu AI Open Platform account First, visit Baidu AI Open Platform, register and log in to your account.

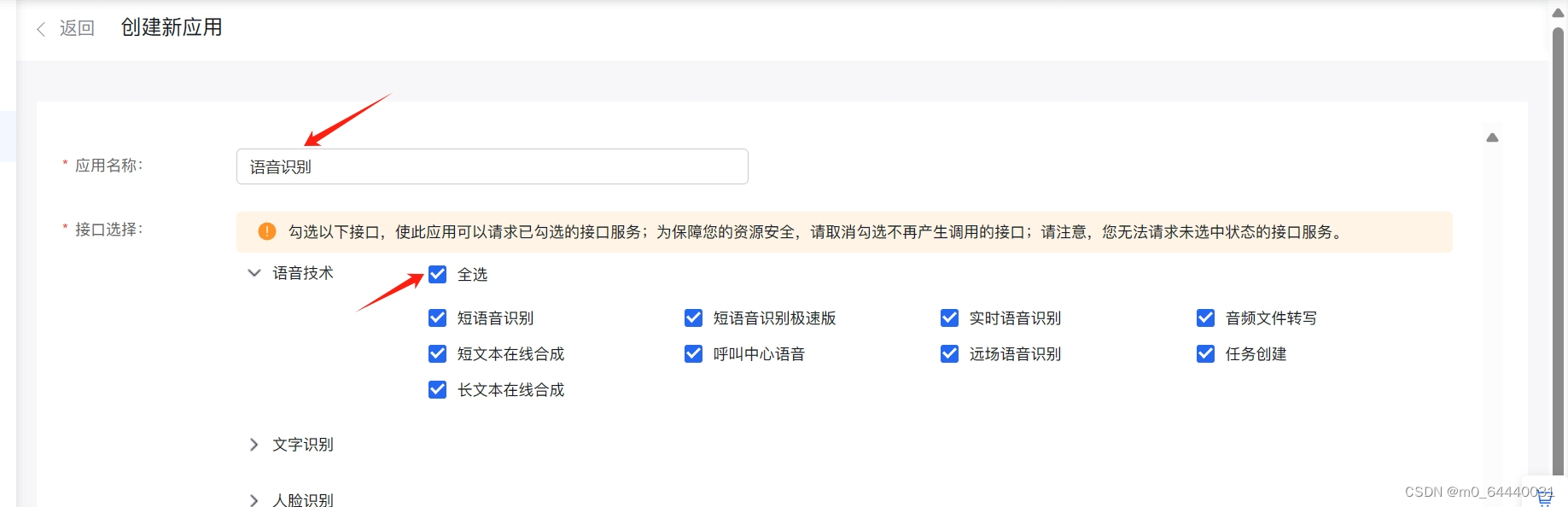

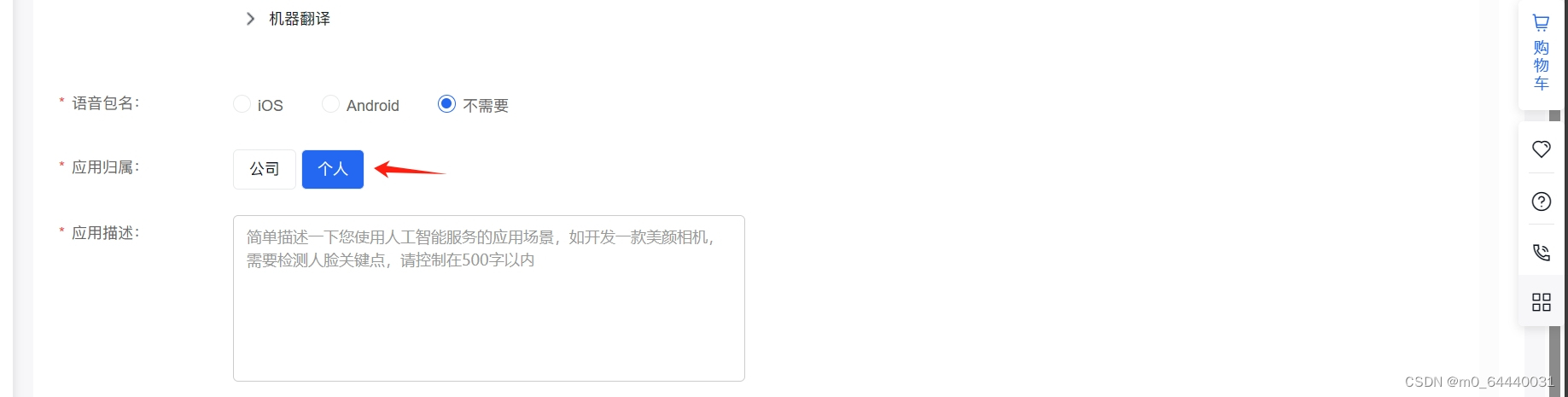

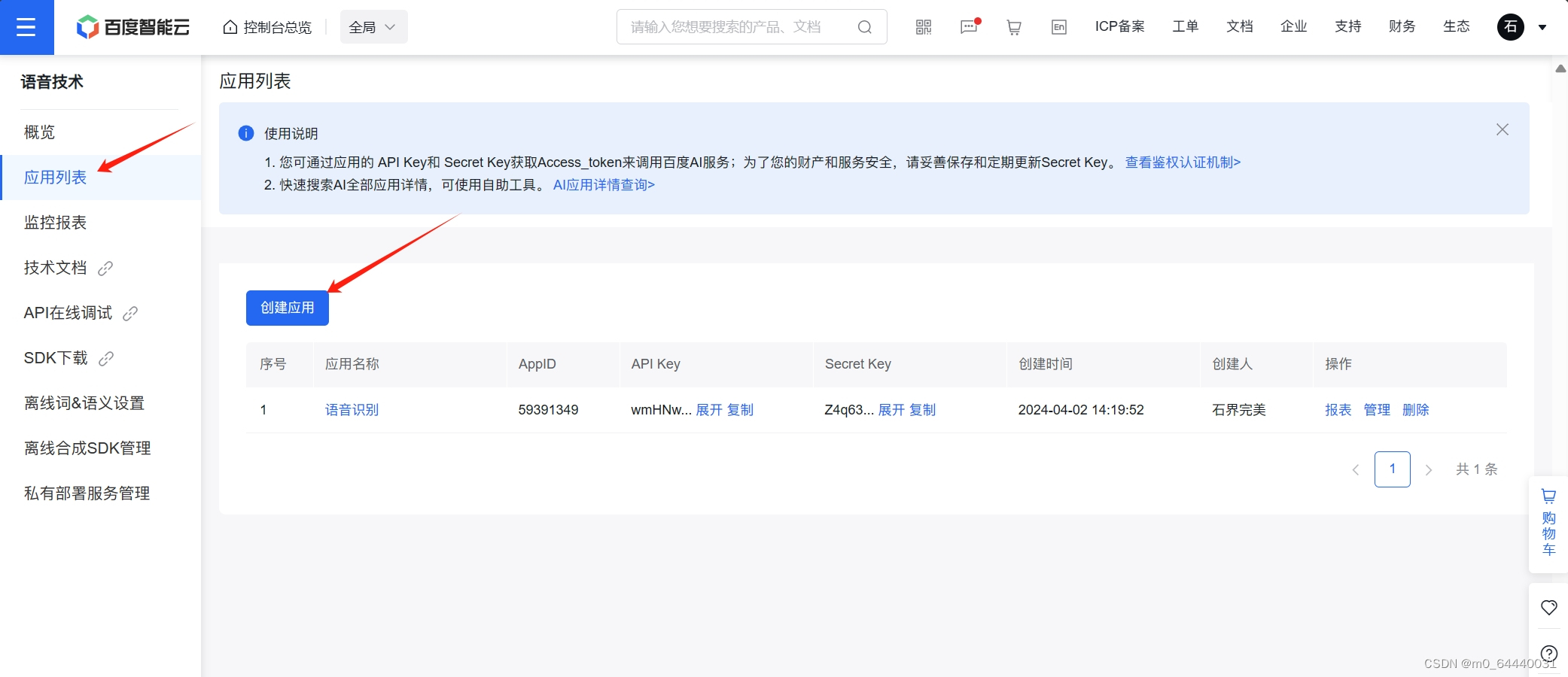

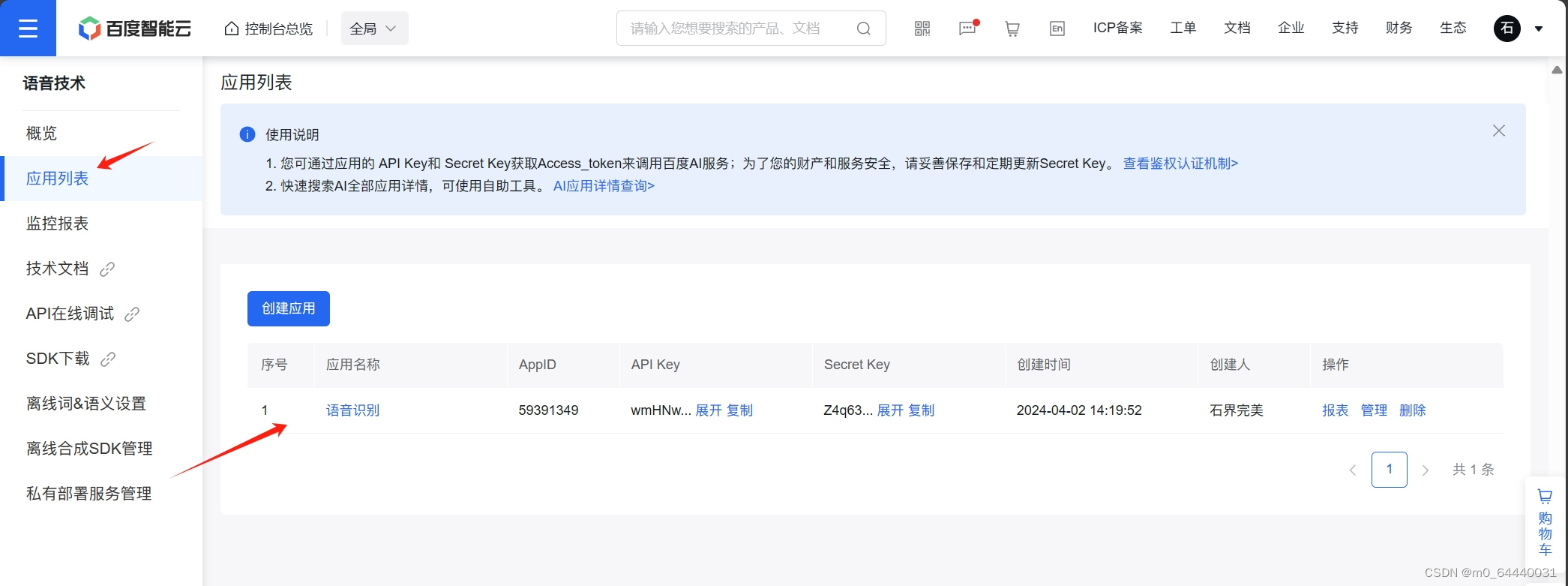

Create an application and obtain APP_ID, API Key and Secret Key In the Baidu AI Open Platform console, create a new application and select the "Speech Recognition" service. After completing the application creation, you will get a pair of API Key and Secret Key as well as APP_ID for subsequent API call authentication.
5 Source code acquisition

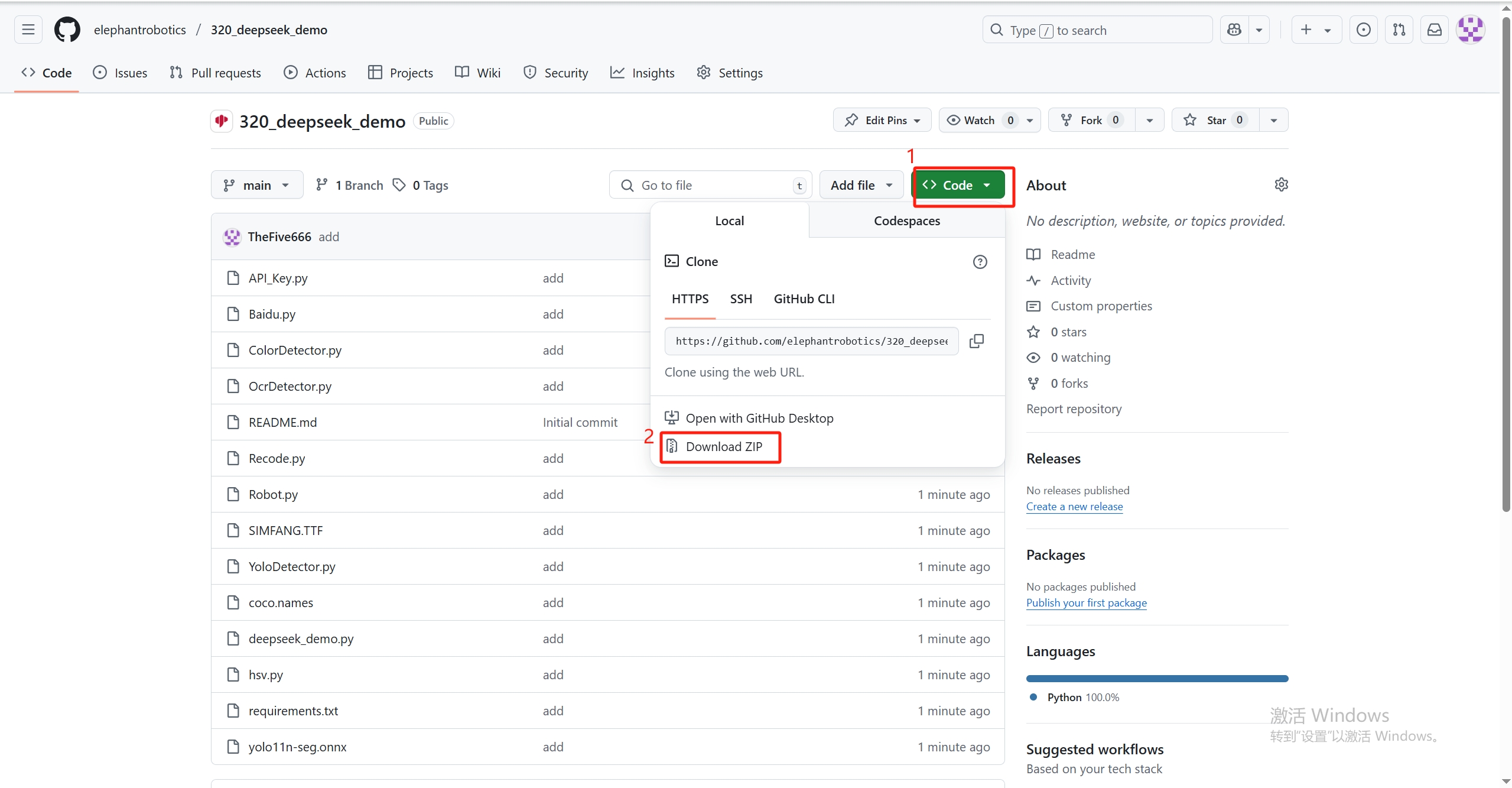

Download address: https://github.com/elephantrobotics/320_deepseek_demo
Download the compressed package and solve it before deploying the environment
Dependency library installation

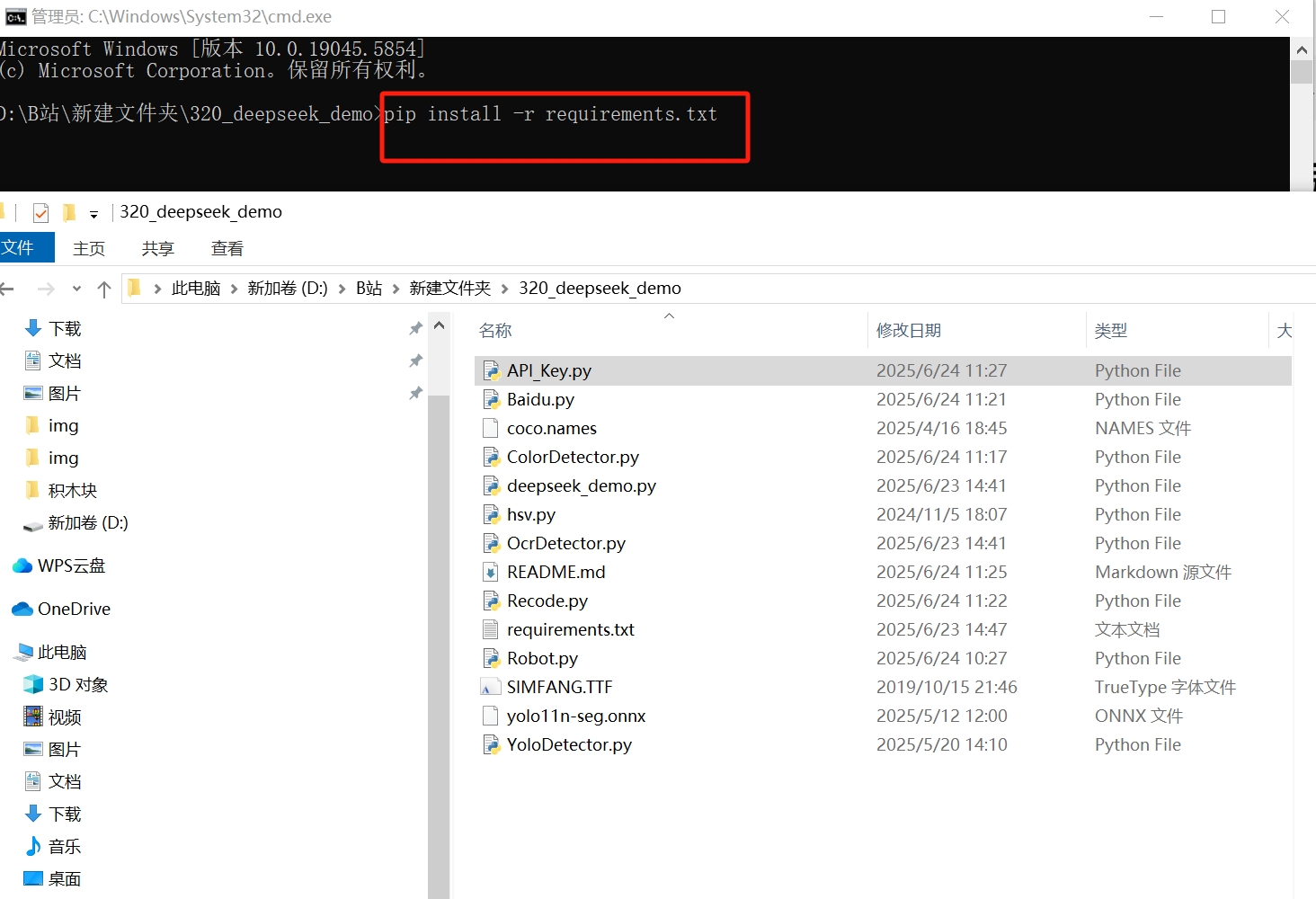

pip install -r requirements.txt
API_Key fill in
In the API_Key.py script file, fill in your Baidu APP_ID, API Key, Secret Key
7 Case reproduction
Run deepseek_demo.py, press the Enter key, and the recording will start
Notes When recording, it is necessary to do it in a quiet environment. When converting voice to text, the conversion may be incorrect. You can wait until the robot arm completes the action, and then press the Enter key again to speak the command
7.1 Mobile display
Voice command words:
向前移动50毫米，向后移动40毫米，向左移动30毫米，向右移动60毫米。

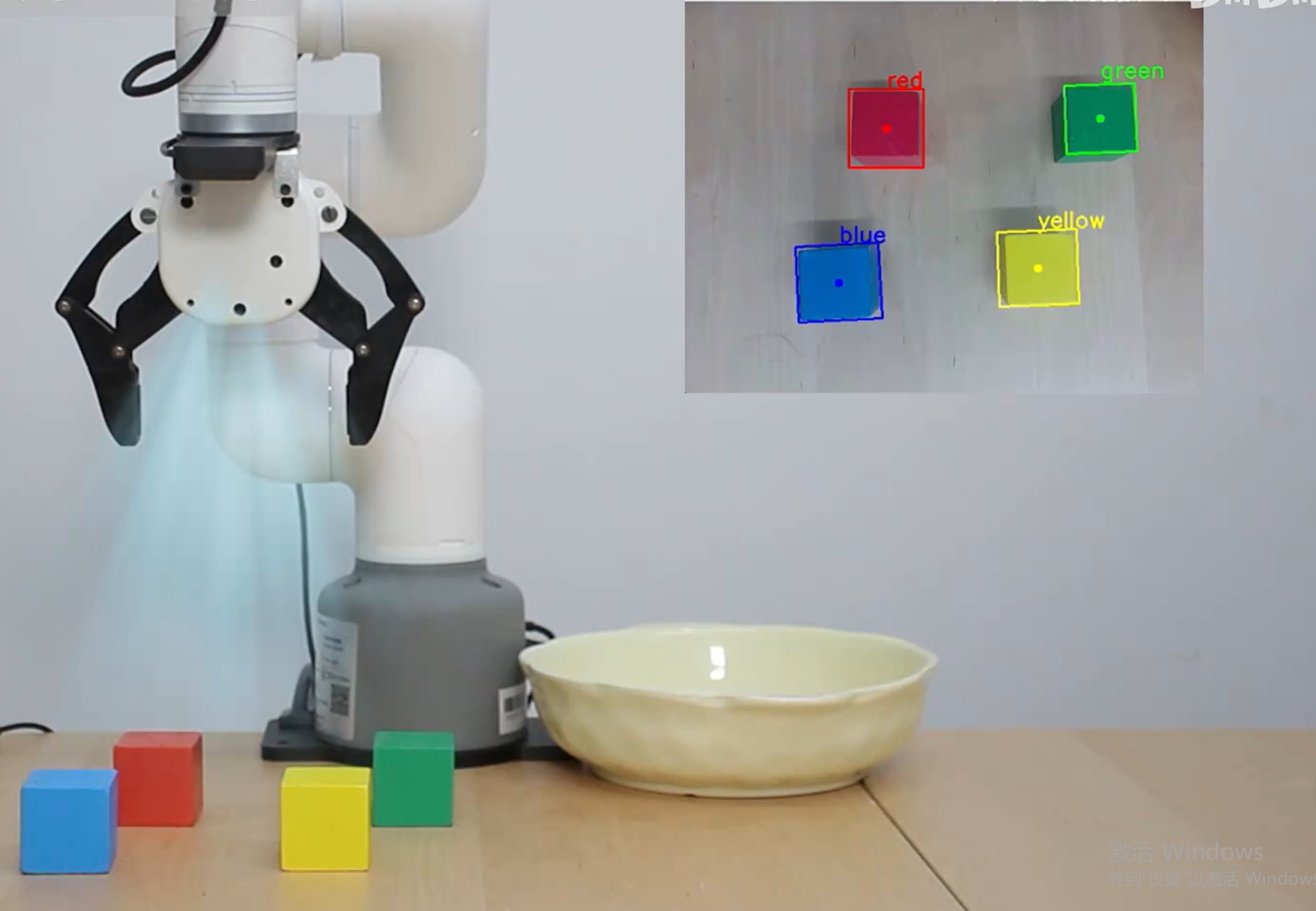

7.2 Color recognition
The colored wooden blocks should be placed neatly, and a certain distance should be kept between the wooden blocks, otherwise the robot arm cannot complete the grasping normally , please refer to the following figure for placement
Voice command words:
先把番茄一样颜色的木块拿走,再把和香蕉一样颜色的木块拿走

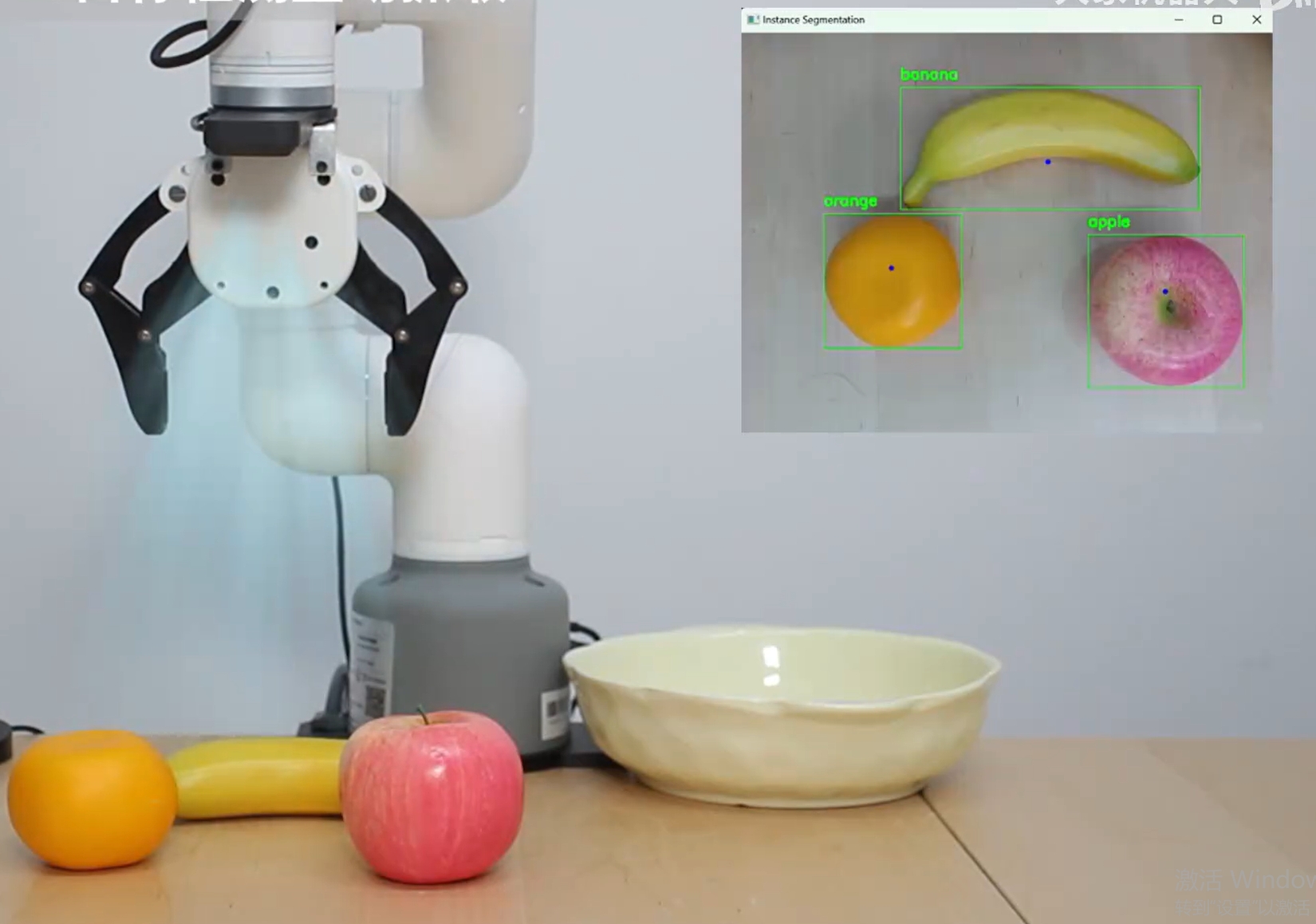

7.3 Fruit recognition
The fruit models should be placed neatly and a certain distance should be kept between them, otherwise the robot arm cannot grasp them normally. Please refer to the following figure for placement. If you want to grasp a banana, place it vertically
Voice command:
我现在有点口渴，帮我拿个橙子。
我现在有点饿，帮我拿个苹果。
Note: Currently, fruit recognition only supports recognition of apples, oranges, and bananas
7.4 Drug recognition
The medicine boxes to be grasped must be placed neatly and vertically, without too much angle deviation, and a certain distance should be kept between the medicine boxes, otherwise the robot arm cannot grasp them normally. Please refer to the following figure for placement.
Notes: Currently, the medicine box recognition only supports the recognition of 999 Ganmao Ling Granules and Yunnan Baiyao Band-Aids. If you want to reproduce, please prepare this medicine box in advance
Voice command words:
我有点流鼻涕和鼻塞，帮我取个治疗这个症状的药。
