What is myStudio Pro?

myStudio Pro is a one-stop robot programming and control software that supports visual programming interaction, quick motion control, drag-based tutorials, and robot status query and configuration. myStudio Pro includes the myBlockly module.

myBlockly is similar in function and design to MIT's children's programming language, Scratch.

With myBlockly, users can construct code logic by dragging blocks, much like building blocks.

From a user's perspective, myBlockly is a simple and easy-to-use visual code generation tool. From a developer's perspective, myBlockly is a text box containing user-entered code.

Generating code in the text box is similar to dragging code into myBlockly in myStudio Pro.

myStudio Pro supports the following operating systems ：

  • Windows

  • macOS

  • Linux arm64

myStudio Pro supports the following modern browsers :

  • Chrome

  • Edge

  • Safari

  • ...

Preparations Before Using myStudio Pro

Hardware configuration

Before using myStudio Pro, please make sure the machine is powered on.

The following are the steps on how to start a server program (taking the Windows operating system as an example) :

Static IP Configuration

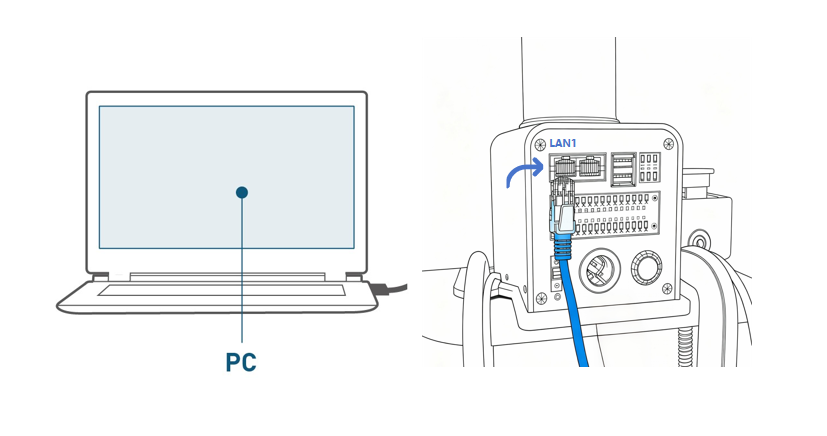

  • First, you need to prepare a functioning network cable. Connect one end of the cable to the network port of the machine base and the other end to the network port of your PC device.

  • After the network cable is connected, it is necessary to manually configure the machine's "static IP" for the subsequent "ssh connection". The configuration steps are as follows:

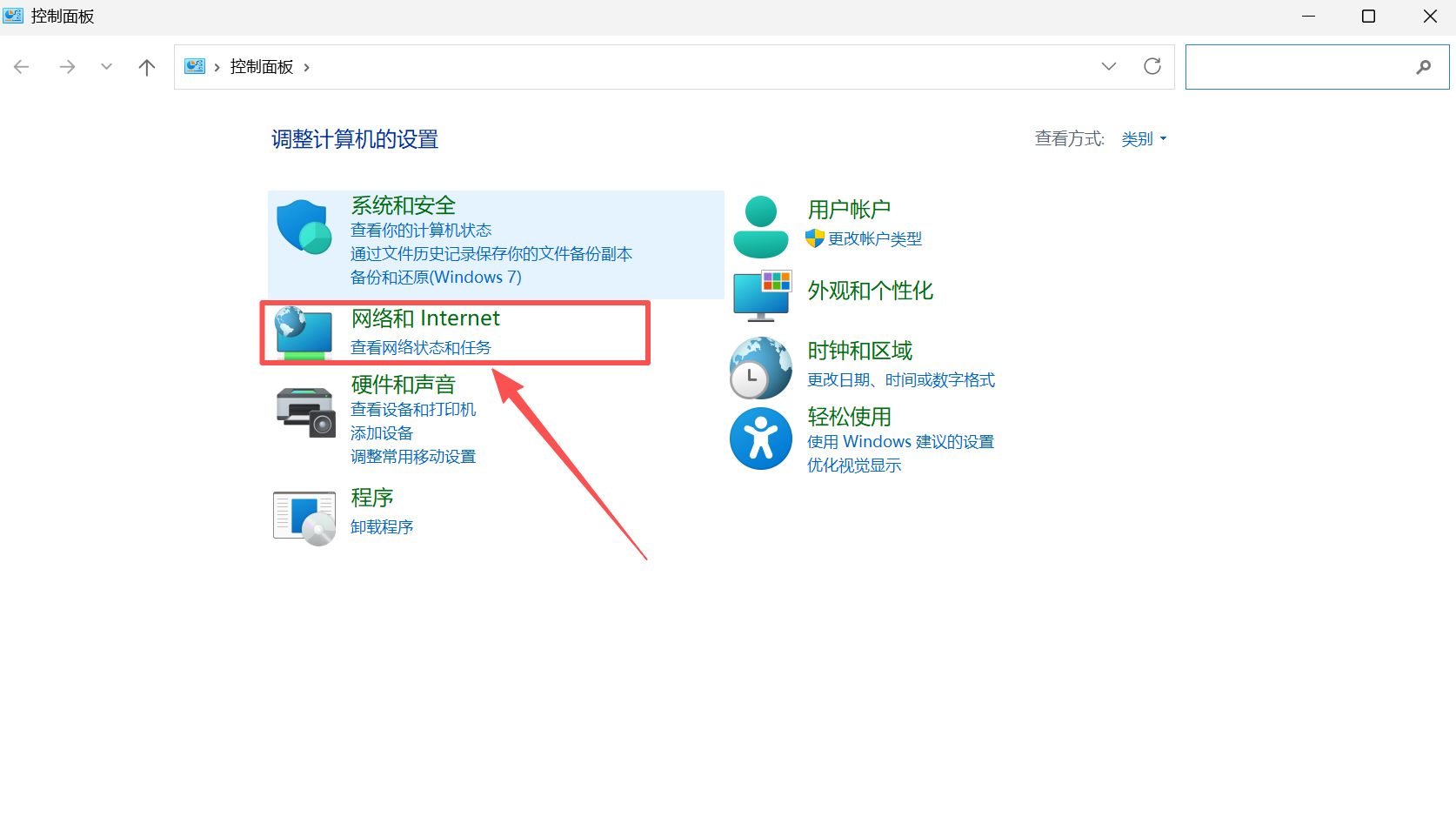

    • Open the Control panel, select Network and Internet, and then click View network status and tasks.

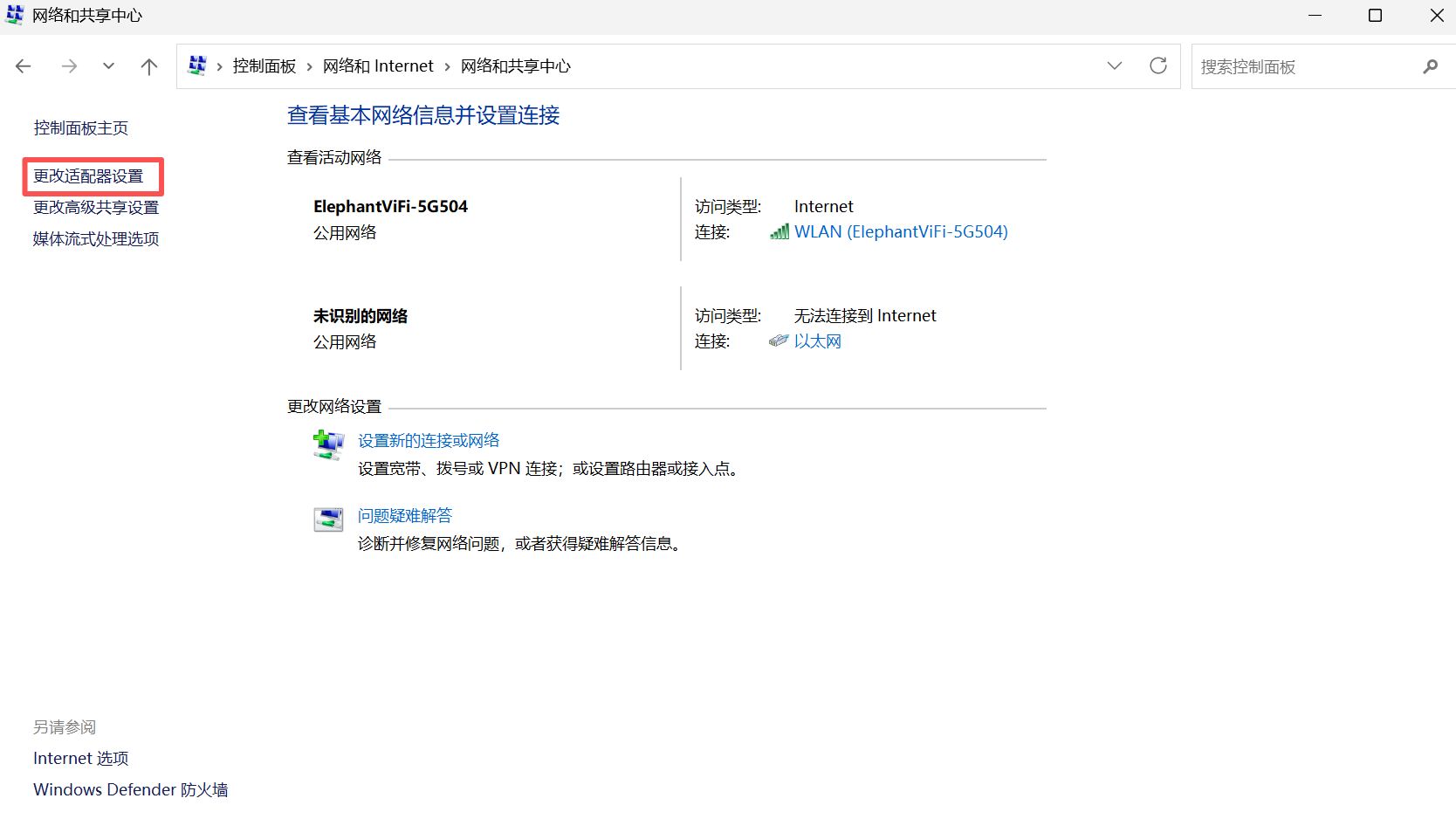

    • At this point, enter the Network and Sharing Center panel, select Change adapter settings from the left menu bar, and click to open the Network Connections panel.

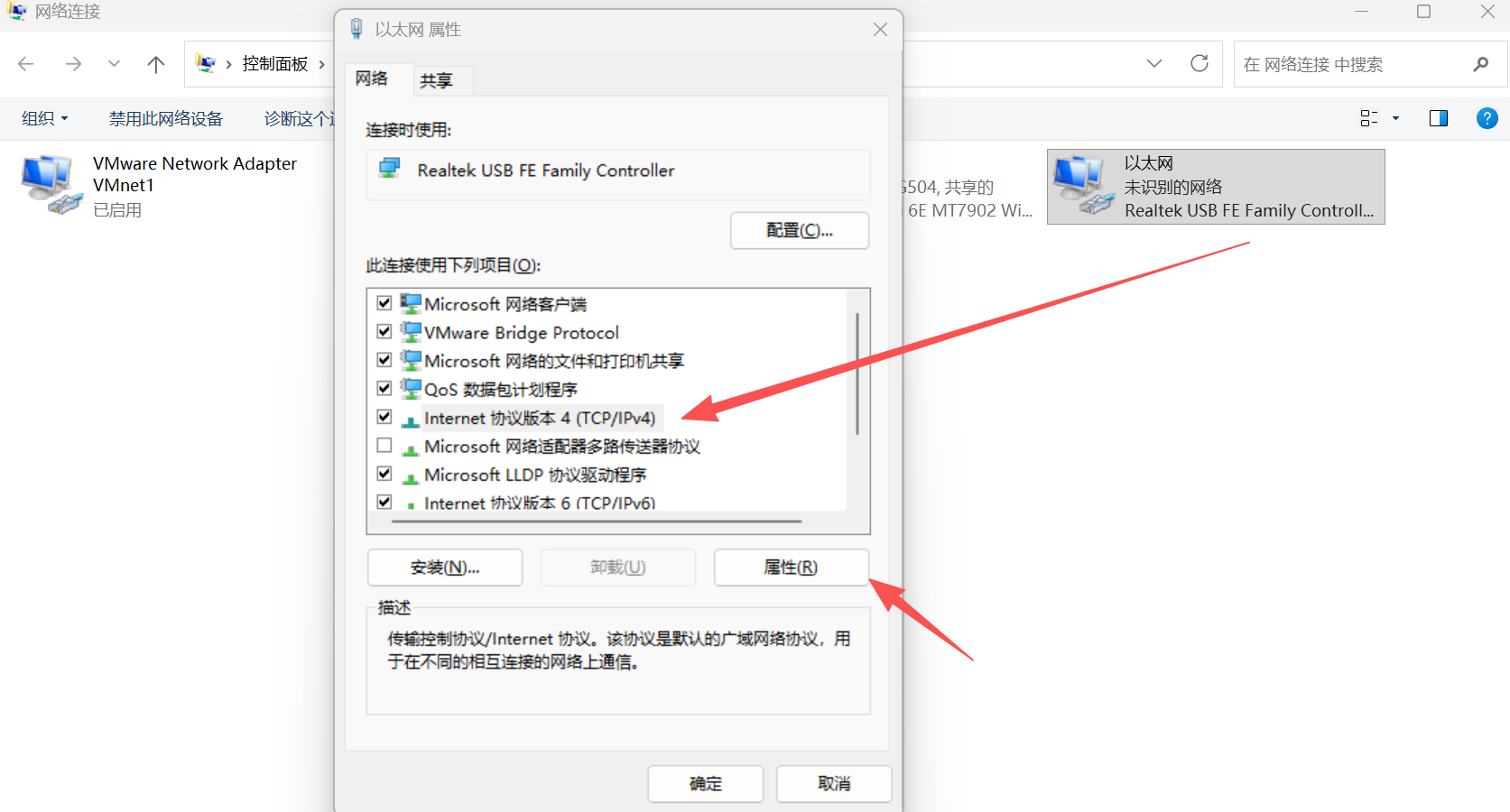

    • Select "Ethernet" and right-click on the Properties panel. After it opens successfully, left-click on "Internet Protocol Version 4 (TCP/IPv4)", and finally click the Properties button underground

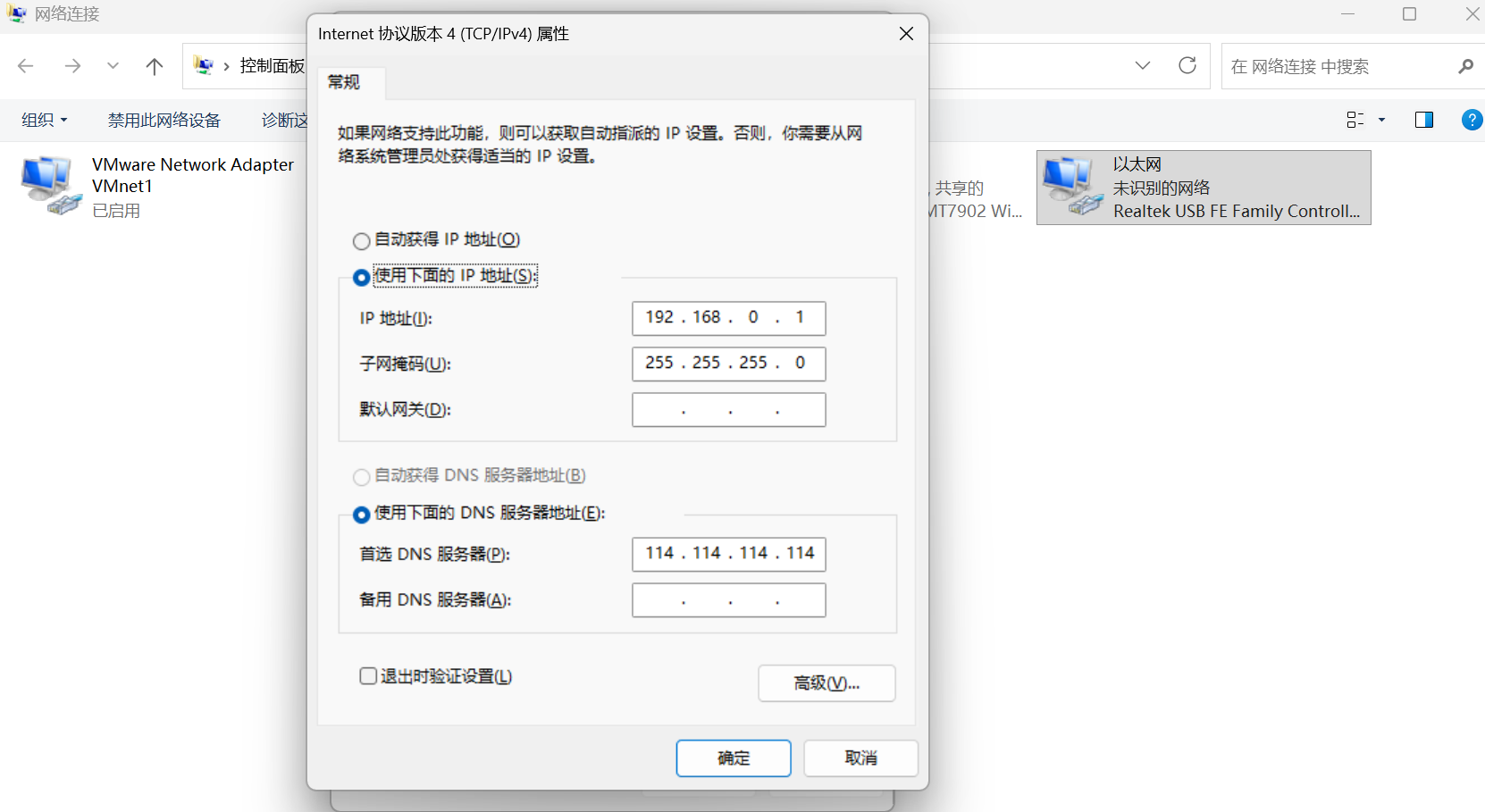

    • Go to the Properties panel, click on 'Use the following IP address:' with the mouse, and configure the static IP address '192.168.0.x' and the Subnet mask '255.255.255.0'.

      • Finally, click "OK" and close the corresponding configuration panel.

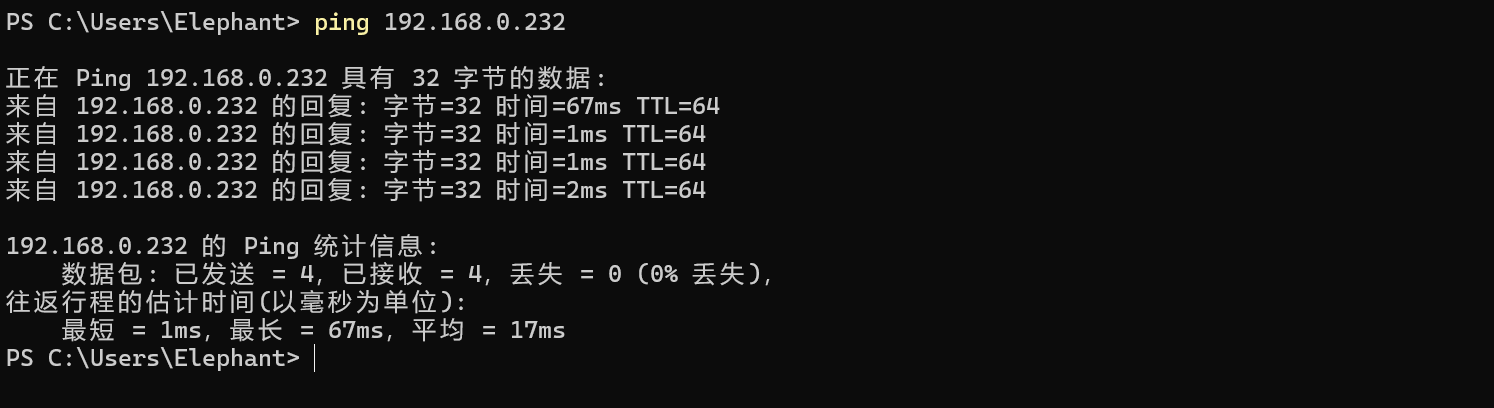

  • To verify whether the static IP configuration is successful, press the 'Win+R' key combination to bring up the run window. Then, in the run window, type 'cmd' to open the 'Windows Command Prompt', type 'ping 192.168.0.232' and press the Enter key. If the following content is output, it indicates that the static IP configuration is successful. And the network cable connection is normal.

Start The Server Program

  • You can log in to the machine system via sshconnection to perform operations and control. This chapter takes the MobaXterm graphical tool as an example for operation.

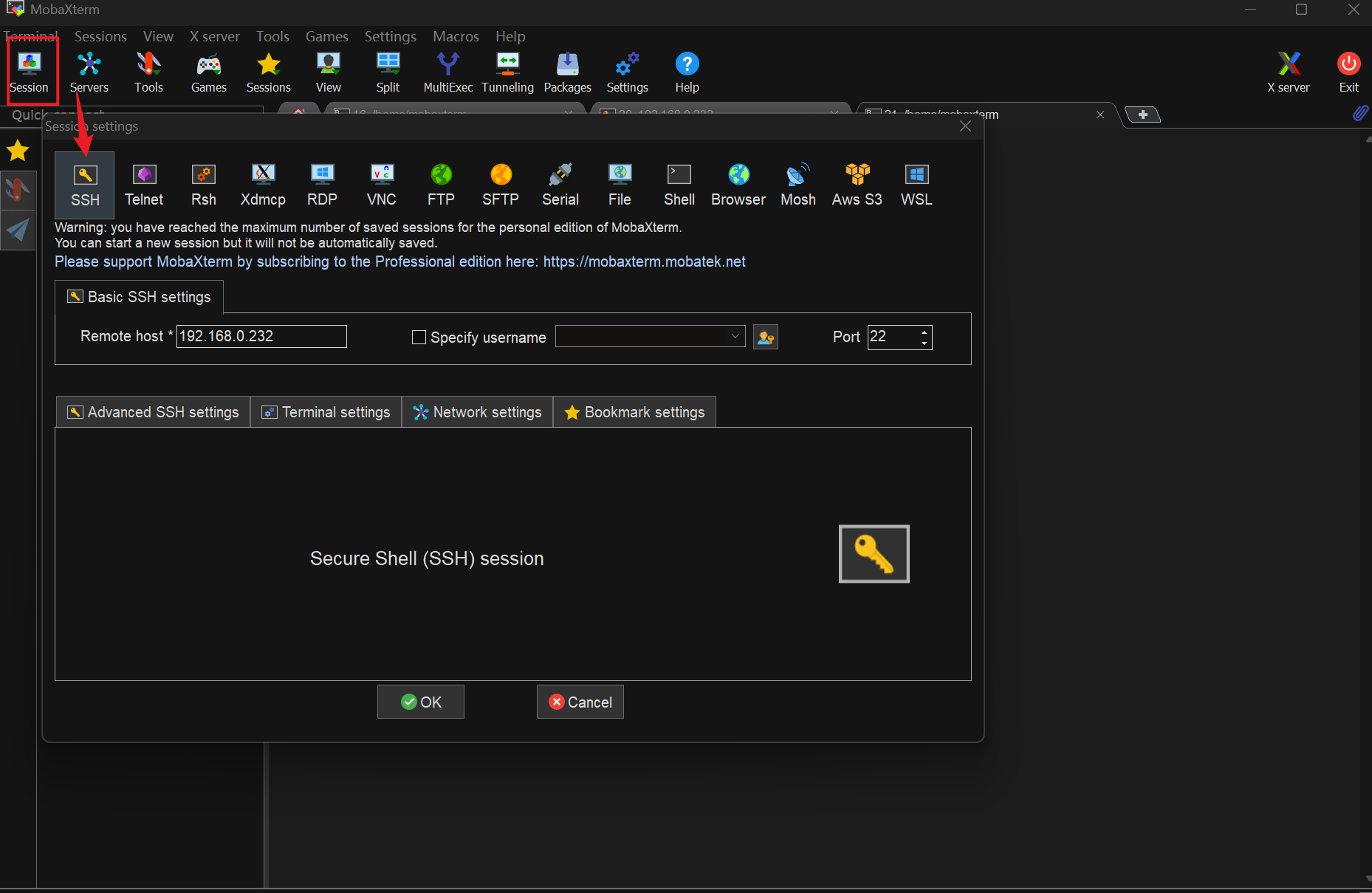

  • Open the application, click on Session in the upper left corner to pop up the panel, then select SSH to connect and enter the corresponding 'Remote host'. After entering, click OK.

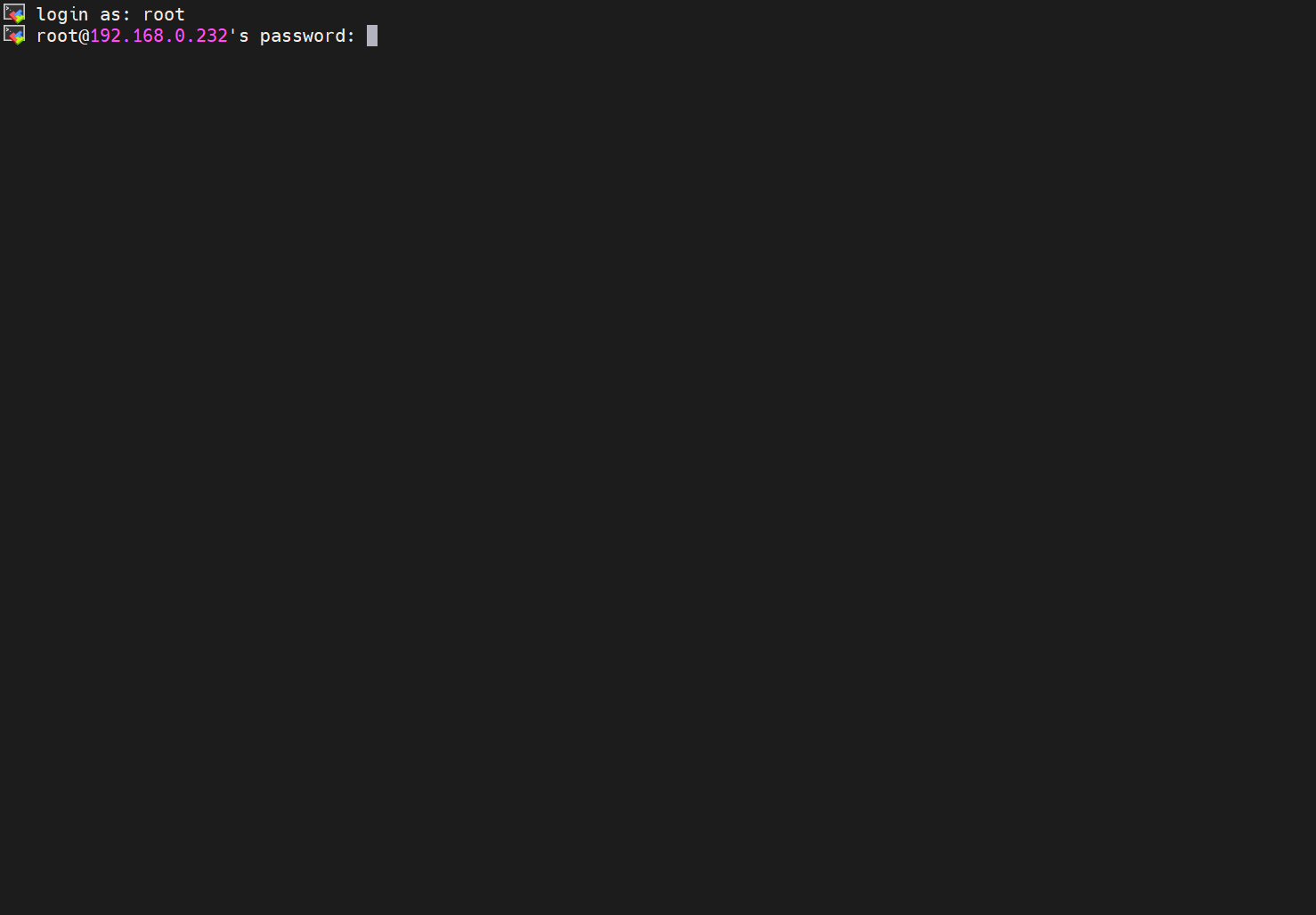

  • After a successful connection, the panel requires you to enter your "username" and "password", both of which are set to "root" by default, and press Enter to log in to the system.

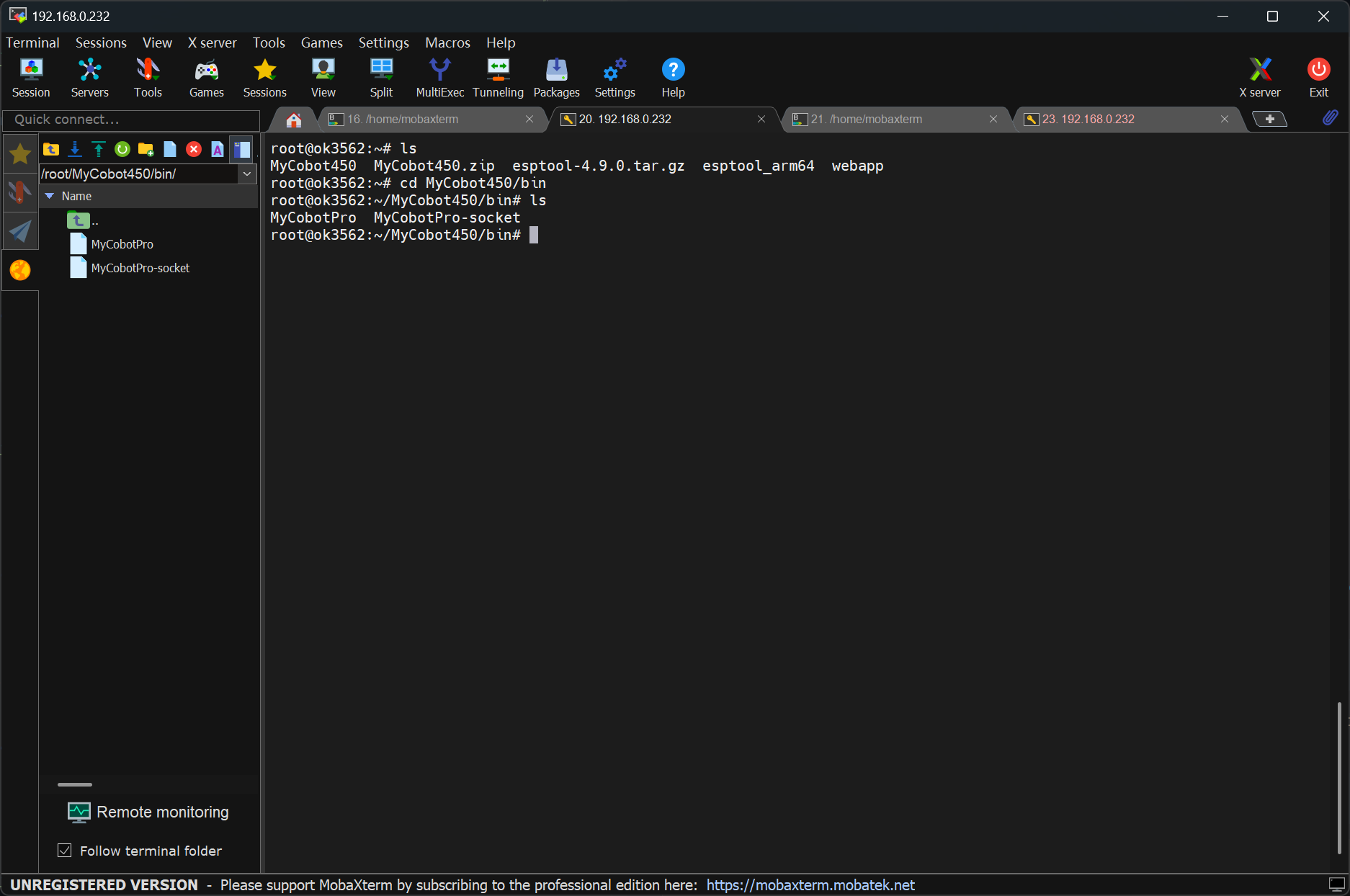

  • The MyCobotPro 450 server program is by default in the following path /root/MyCobot450/bin directory. Then use the command View Current directory Files to check if there is a corresponding 'executable file'. The name of the executable file is generally MyCobotPro.

    cd /root/MyCobot450/bin

     ls

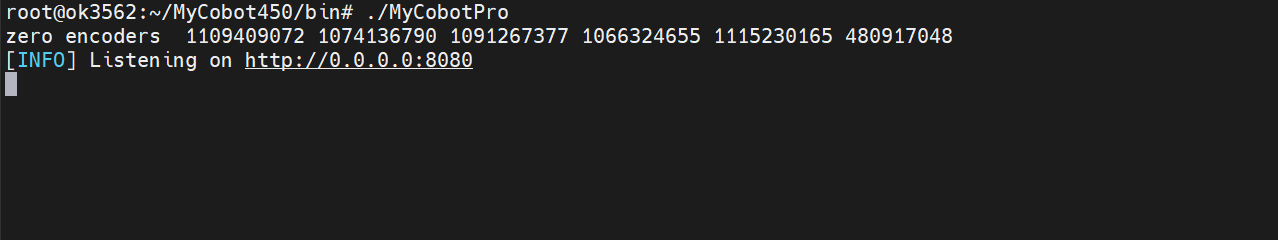

If the server file is executed and the terminal does not report an error message and outputs the following information, the file is successfully run.

./MyCobotPro

Of course, you can also log in using the 'cmd' panel to operate. The specific operation steps are as follows (taking the Windows system as an example) :

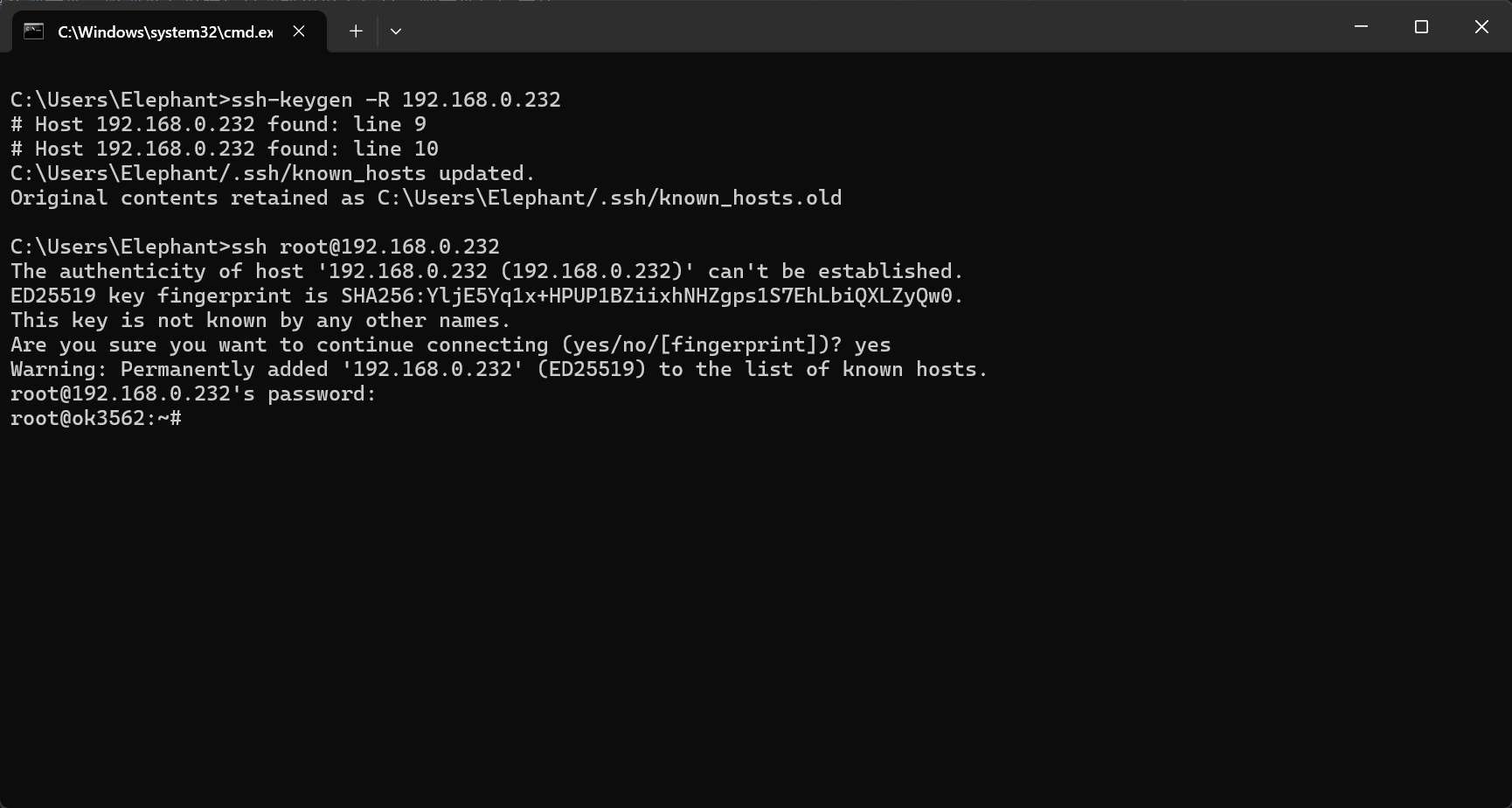

Use 'win + r' to open the 'cmd' panel and enter the following command.

  • Enter ssh-keygen-R 192.168.0.232

  • Enter ssh root@192.168.0.232

Then enter the login password 'root'

Next, you can run the server program by following the above steps.

Software Configuration

Before using myStudio Pro, please make sure that a browser, such as modern browsers like Chrome/Edge/Safari, has been installed on your computer.

myStudio Pro Access

myStudio Pro is a Web application that does not require installation and can be used in a browser via IP.

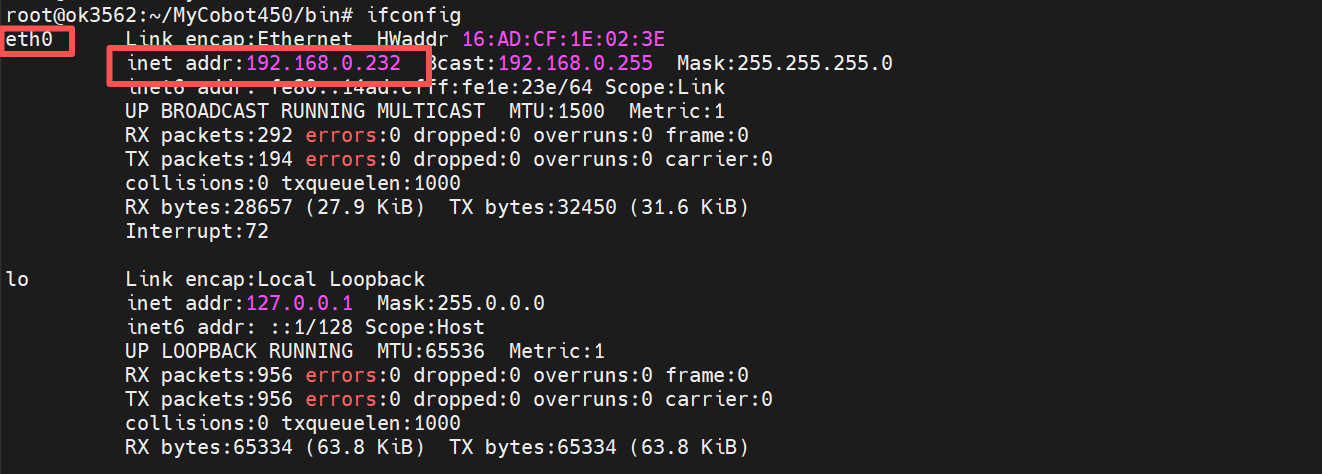

  • In the ssh connection terminal, enter the command ifconfig to view, configure and manage network interface parameters, and confirm the IP.
ifconfig

  • Then enter this IP And port number (default deployment to port 8000) into the URL address of the browser. Note: the http protocol needs to be added. The complete address is as follows;
http://<Robotic Arm System IP>:<Port Number>
  • When the browser renders the page, it indicates successful access to myStudio Pro.
