Control the movement of the car
Make sure the machine is working before starting
The machine has been powered on.
The learning content of this chapter
How to control the movement of the car using myBlockly
API Introduction

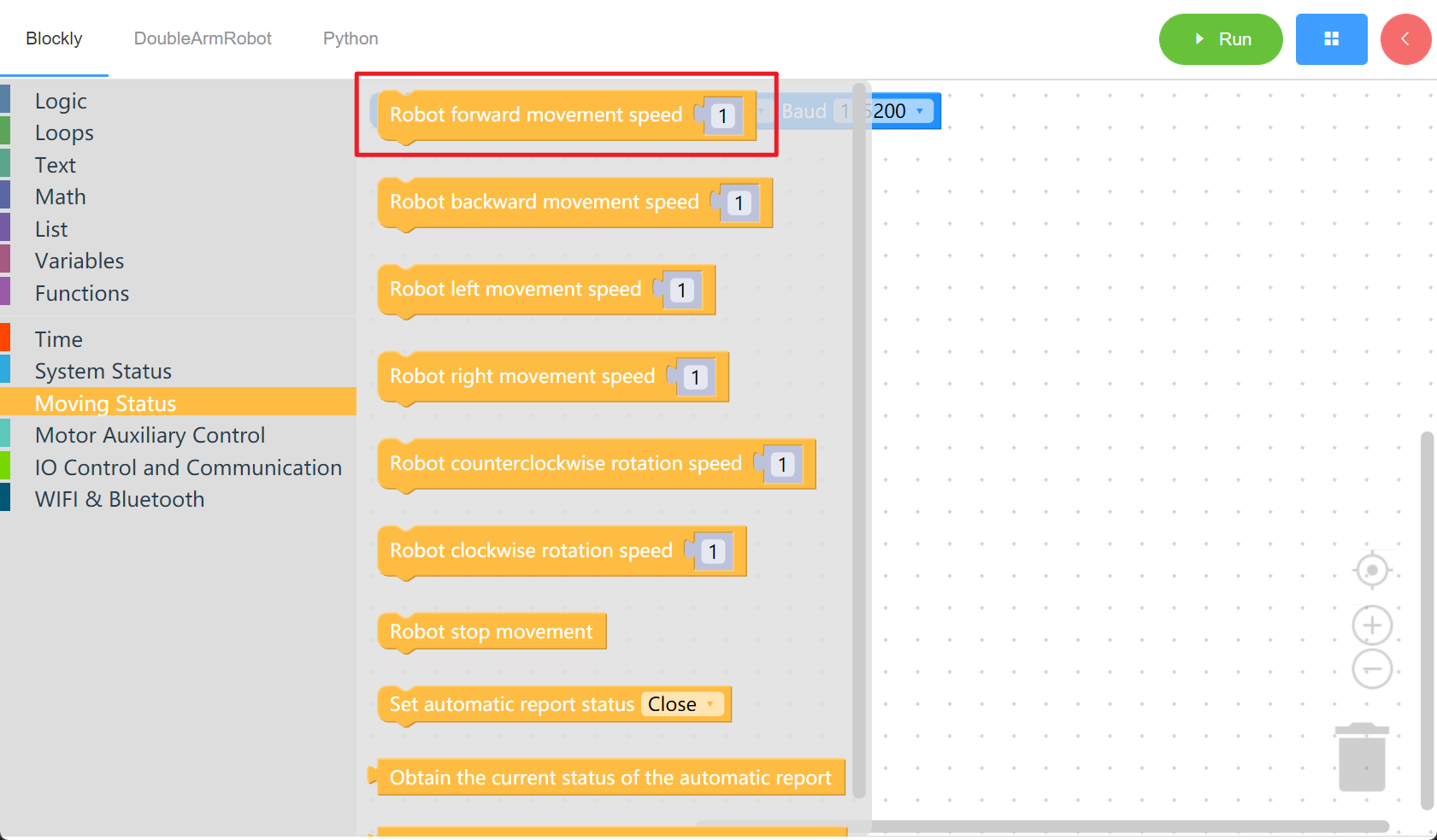

Method Module: 1. Move forward

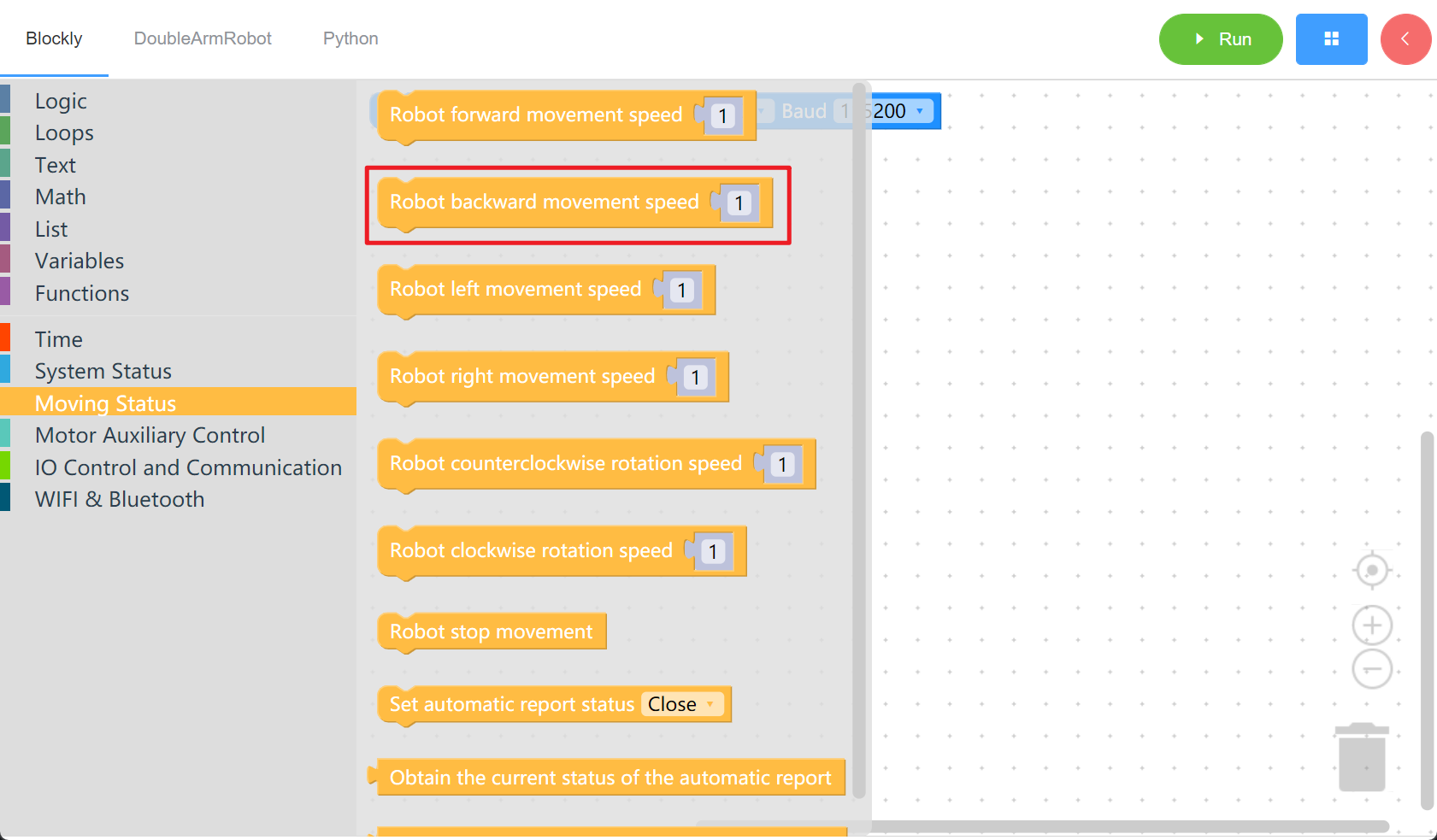

Method Module: 2. Moving backward
Method module: 3. turn left
Method module: 4. turn right

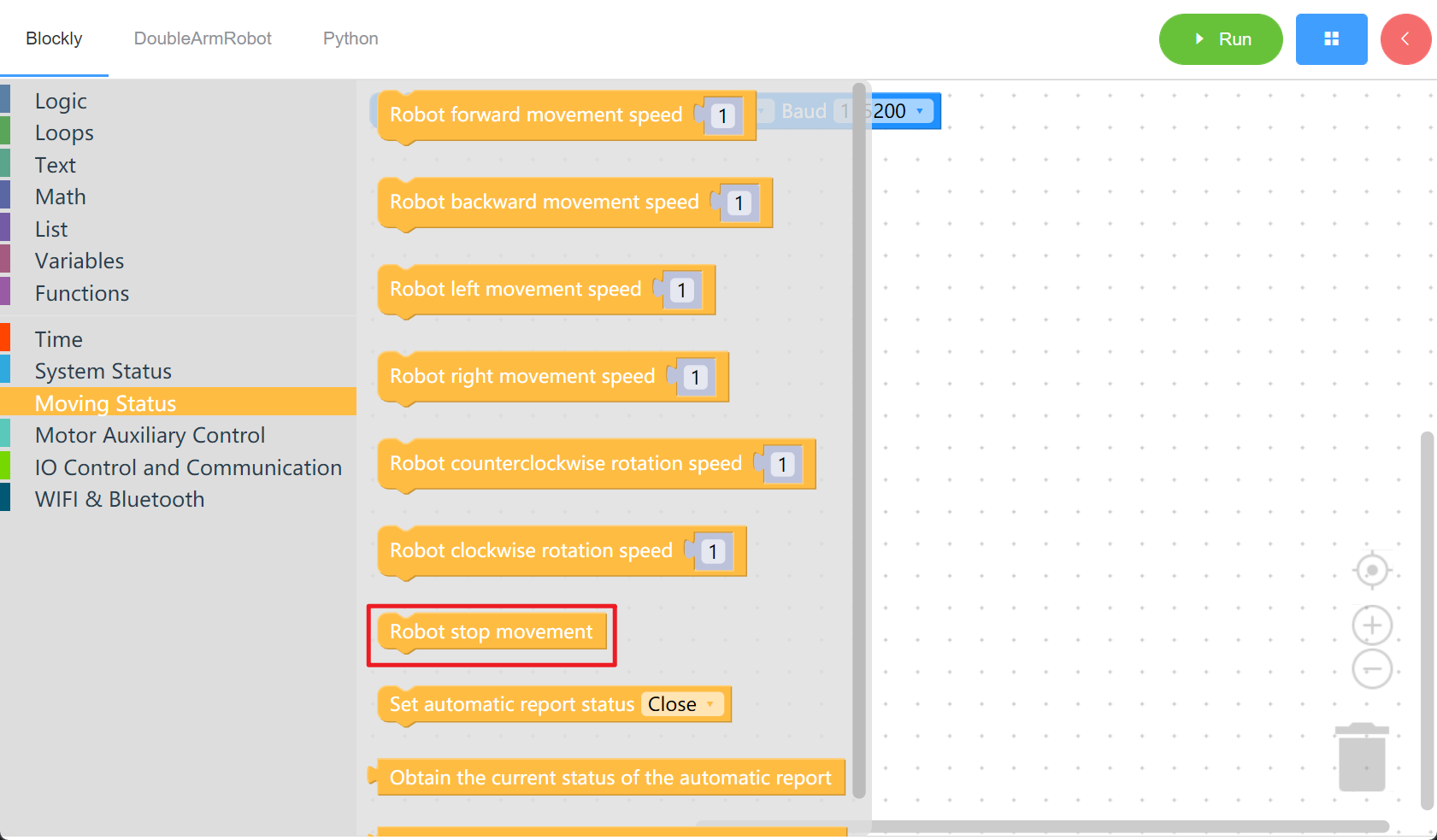

Method module: 5. stop
Parameter Introduction:
- All of the above modules have only one speed parameter (0.01 ~ 1.5 m/s) that can be adjusted. The mode is 1. The slider only supports integer unit sliding and can be modified by double-clicking the parameter block.
Objective: To control the machine to move forward, backward, rotate left and right, and finally stop moving.
Simple demonstration

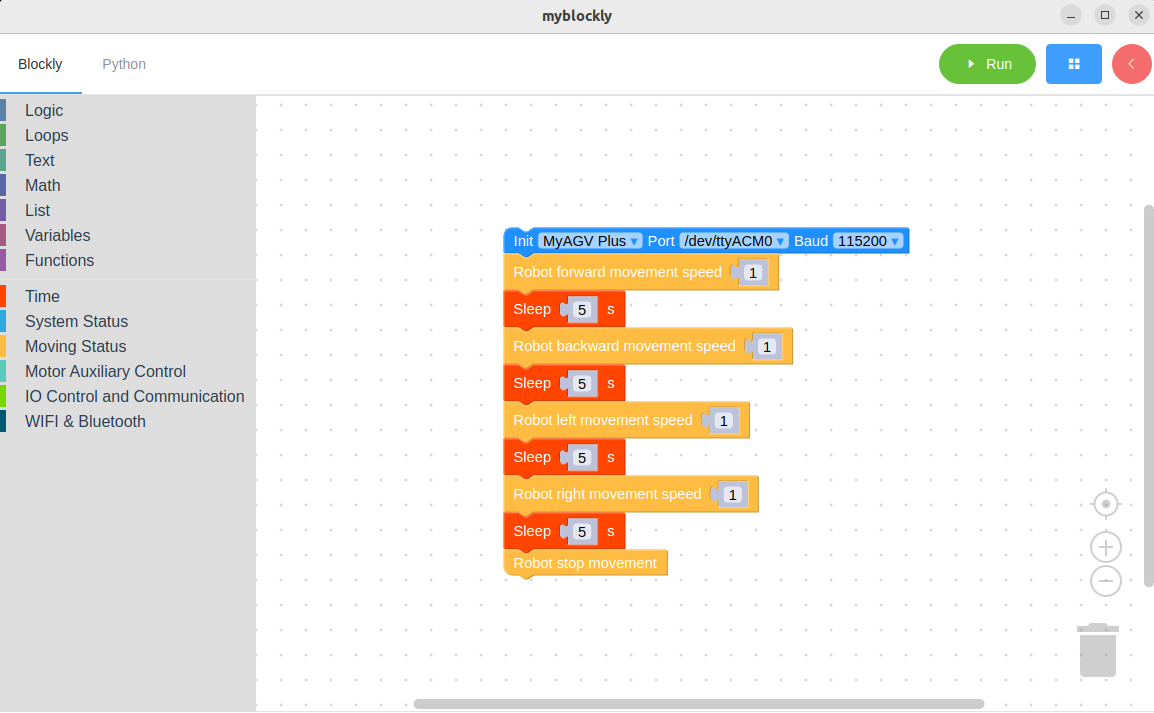

The graphic code is as follows:
The content to be achieved:
Control the machine to move forward at a given speed. After 5 seconds,
Control the machine to move backward at a given speed. After 5 seconds,
Control the machine to turn left at a given speed. After 5 seconds,
Control the machine to turn right at a given speed. After 5 seconds,
Stop the movement and end the program..
