Mirror Burning
This chapter describes the steps to download and burn mirrors, if you have already downloaded the required mirrors, you can directly view the burning steps
1.1 Download Links
| IMPORTANT NOTICE |
|---|
| Please contact after-sales service to get the latest resources if you need to burn the image, after-sales service email: support@elephantrobotics.com |
1.2 Burning Steps

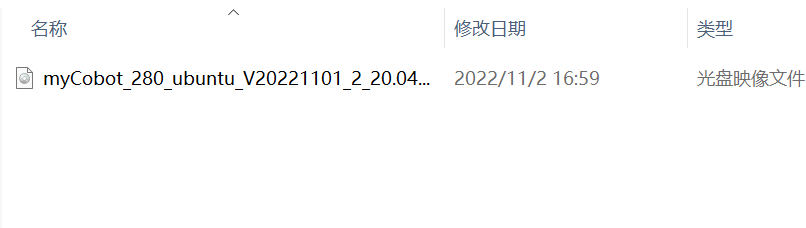

Step 1: Unzip the file after downloading the image, you can see a CD image file.

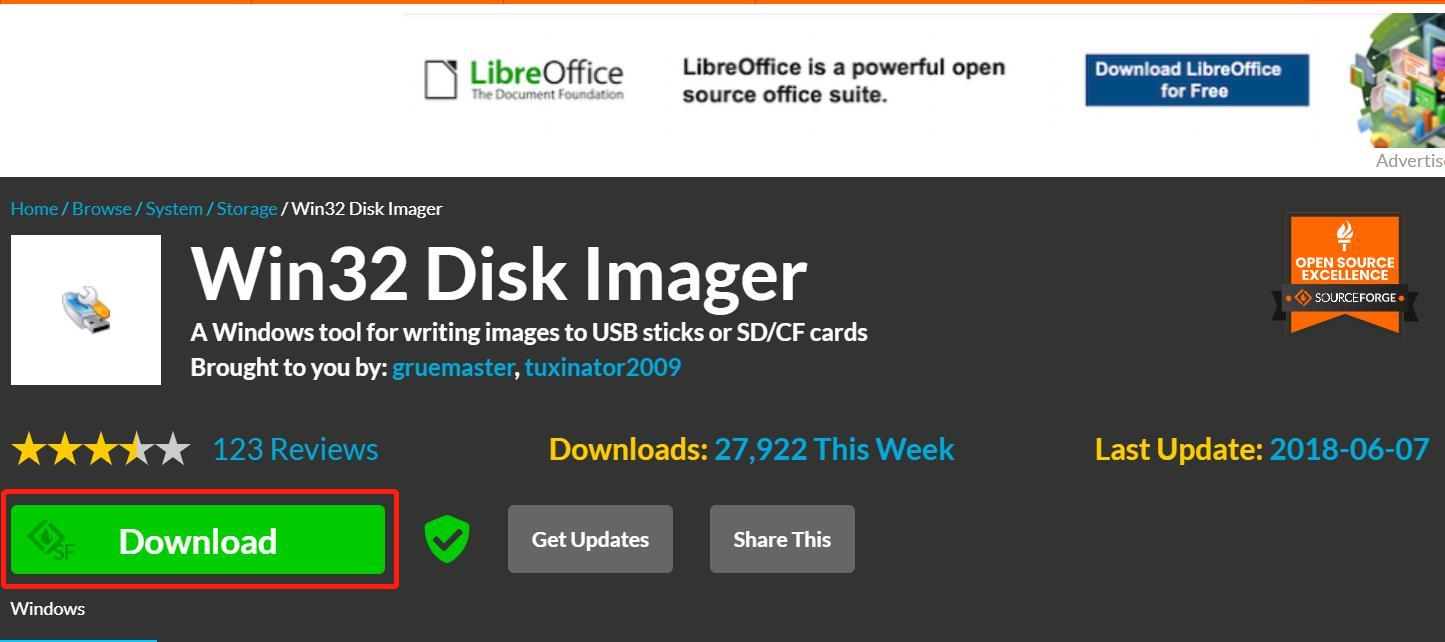

Step 2: Download the Win32DiskImager software.
download address：Win32DiskImager

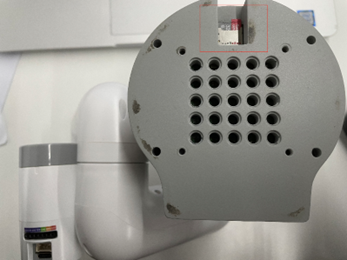

Step 3: Remove the SD card from the bottom of the robot arm and insert the SD card into the computer using a card reader.
Step 4: Open the Win32DiskImager burning software.

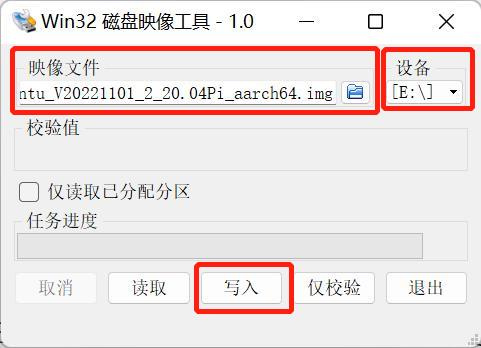

Step 5: Select the E-disk and the CD-ROM image file, and then click “Write” to start writing.

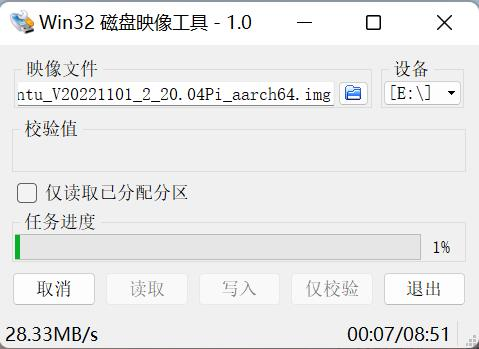

Step 6: You will be prompted when the write is successful.
